Description
The actuator is useful for applications with valve bodies for control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
Features & Benefits

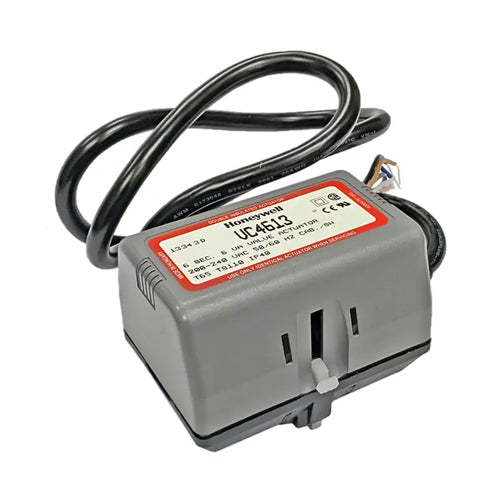

- VC Series VC4613ZZ00/U - Two-Position Actuator for Motorised Valves
- Two-position actuator suitable for two-way or three-way motorised valves
- NOTE: Suitable for 1000 Series 2 way and 6000 3 Way CV valve bodies only
- Minimal actuator power consumption
- Quick-connect or one meter cable
- Quick and easy replacement of moving parts
- Actuator head installation does not require draining system
- On/off models with six second nominal timing
- Manual operation using lever
- All VC Series actuator-valve combinations provide 60 psi close-off
Specification
- Application: HVAC
- Used with: VC Series valve
- Mounting: Direct coupled
- Frequency: 50Hz, 60Hz
- Supply voltage: 240V
- Power consumption: Driving - 6VA
- Fluid temperature: 95°C
- Manual operation: Lever
- Protection rating: IP40 (Double Insulated)
