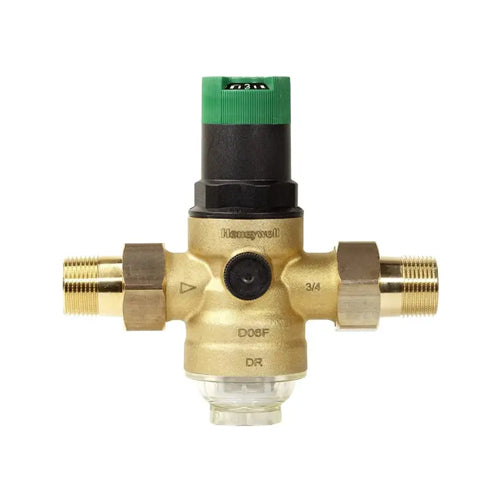

Honeywell D06FK Pressure Reducing Valve with Clear Filter Bowl - 1.5-6 Bar - 15mm - D06F-1/2K

Description

Pressure reducing valves of this type protect installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

Features & Benefits

• 15mm Compression Connections - 1.5-6 Bar - D06FK Pressure Reducing Valve with Clear Filter Bowl - DO6F-1/2K
• 15mm Compression connections
• Includes clear filter bowl on the underside of the valve
• The outlet pressure is set by turning the adjustment knob
• The set pressure is directly indicated on the set point scale
• The adjustment spring is not in contact with the potable water
• The valve insert is of high quality synthetic material and can be fully exchanged
• Easily retro-fittable to convert valve to a reverse-rinsing filter combination
• Can be retrofitted with an inlet non-return valve
• Max. operating temperature: 40°C
• Max. Inlet operating pressure: 16 Bar
• Adjustable outlet operating pressure: 1.5 - 6 Bar
• Minimum pressure drop: 1 Bar
