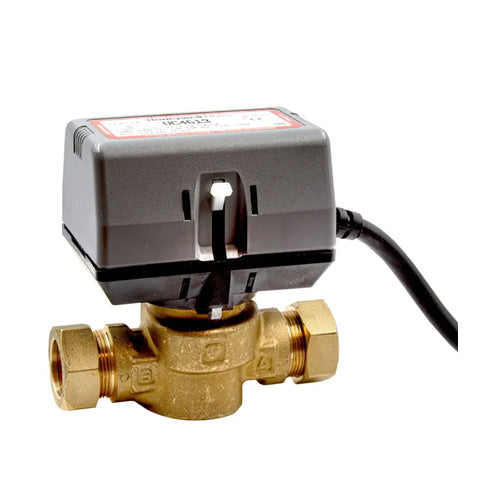

Honeywell Balanced Hydronic Motorised Zone Valve - 2 Port - 22mm - VC4613AG1000/U
Honeywell Balanced Hydronic Motorised Zone Valve - 2 Port - 22mm - VC4613AG1000/U
Couldn't load pickup availability
Description
These two-position (open/closed) hydronic motorised zone zones are intended for use in a normal indoor environment to control the flow of hot and/or cold water, or glycol solution (to 50% concentration). They consist of an actuator, valve and replaceable valve cartridge assembly. These valves are designed for on-off 'zone control' of heating/cooling systems, or to control individual fan coil, baseboard radiator or convector applications. Depending on the model selected, they can be controlled by either a low or line voltage SPST or SPDT controller, such as a room thermostat, Aquastat or flow switch.
Features & Benefits
- 22mm - Honeywell VC4613 - Two-Way Balanced Hydronic Motorised Zone Valve with Actuator - VC4613AG1000/U
- Two-position (open and close) motorised zone valve for normal indoor applications
- Suitable for heating systems, fan coils, radiator control and convector applications
- Controls flow of hot and/or cold water
- Also suitable for glycol solutions
- Includes Actuator, valve and replaceable cartridge
- Actuator can be removed
- Open/close zone control
- 22mm compression connections
Specification
- Operating ambient temperature: 0 to 65°C
- Atmosphere: Non-corrosive, non-explosive
- Max. Fluid temperature: 95°C (Short duration peak = 120°C)
- Min. Fluid temperature: 1°C
- Operating differential pressure: Max - 4 Bar
- Pressure rating: Static - 20 bar Burst - 100 Bar
- Valve material: Bronze (body)
