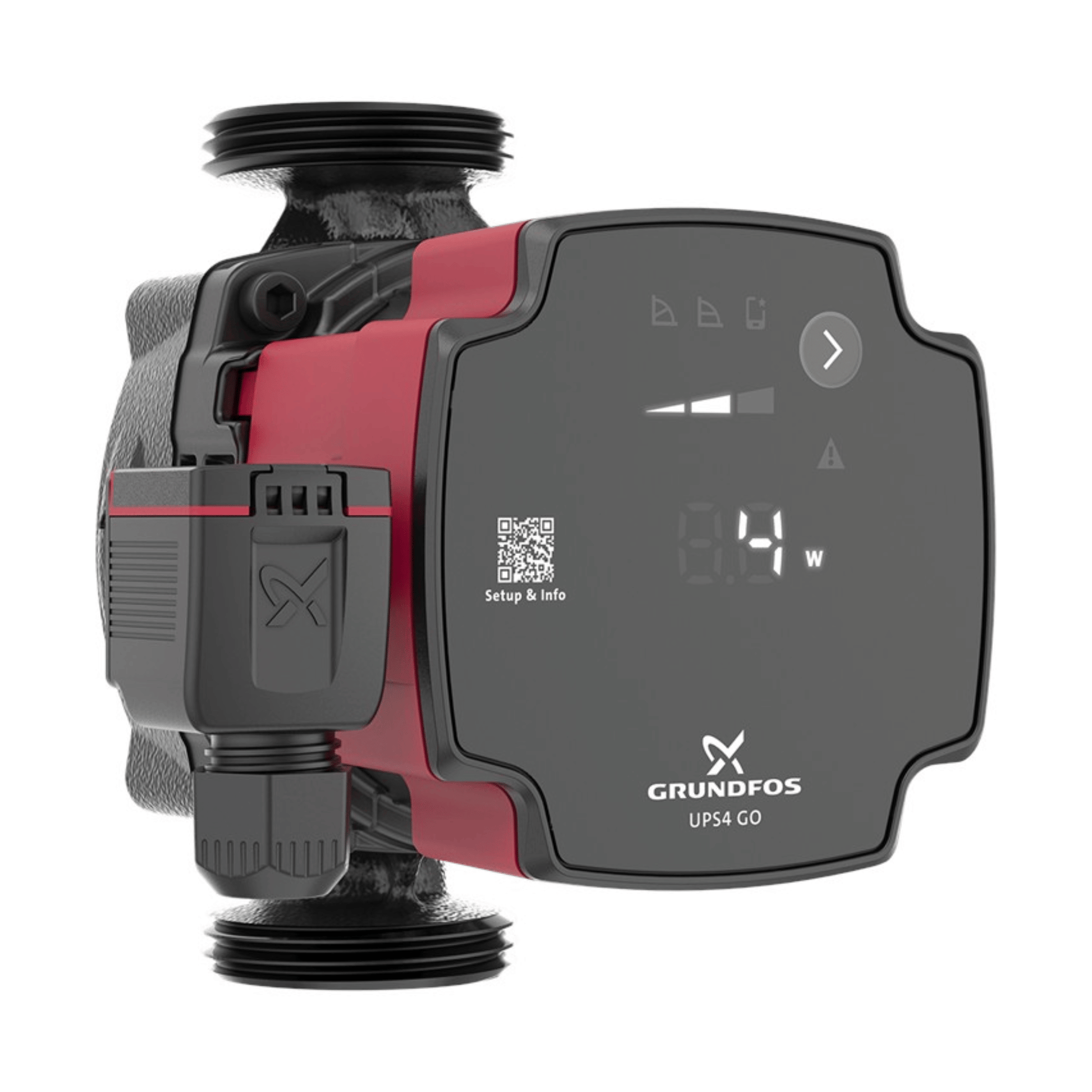

Grundfos UPS4 GO 25-65 130 - 93074168

Grundfos UPS4 GO, ALPHA2 GO Databooklet

UPS4 GO is a high-efficiency circulator pump fitted with an electronically commutated motor and designed for circulating liquids in heating and air conditioning systems.

UPS4 GO is equipped with intelligent controls and offers three control modes: constant pressure, proportional pressure and constant curve. Each mode has three adjustable speed settings.

Replacement of older integrated and stand-alone circulator pumps, including replicating curves, is made easy by using the Grundfos GO app and operating panel.

The toolless installer plug enables a fast and easy electrical connection.

The automatic self-venting ability and dry-running protection ensure quiet operation and reliability of the pump.

The product features robust startup which reduces the risk of blockages from dirt, magnetite and limescale build-up. In the unlikely case of a blocked pump, the motor continuously attempts to start at the highest possible torque, ensuring startup in tough conditions.

The ceramic shaft and bearings experience minimal wear, resulting in a longer lifespan and a reduced likelihood of noise in the system due to increased bearing clearance from wear.

Fault finding is fast and easy by using the error codes on the pump operating panel.

Controls:

• Frequency converter: Built-in

Liquid:

• Pumped liquid: Water
• Liquid temperature range: -10 .. 110 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³

Technical:

• Rated flow: 2.43 m³/h
• Rated head: 3.76 m
• Pump head orientation: 9H
• Approvals: CE,VDE,UKCA

Materials:

• Pump housing: Cast iron
• EN 1561 EN-GJL-150
• ASTM A48-150B
• Impeller: Composite
• PES+30% GF

Installation:

• Range of ambient temperature: 0 .. 55 °C
• Maximum operating pressure: 10 bar
• Pipe connection standard: ISO 228-1
• Type of connection: G
• Size of connection: 1 1/2 inch
• Pressure rating for connection: PN 10
• Port-to-port length: 130 mm

Electrical data:

• P1 min: 4 W
• Max. P1: 60 W
• Mains frequency: 50 / 60 Hz
• Rated voltage: 1 x 220-240 V
• Minimum current consumption: 0.06 A
• Maximum current consumption: 0.6 A
• Enclosure class (IEC 34-5): IP44
• Insulation class (IEC 85): F
• Thermal protection: Electronic

Others:

• Energy (EEI): 0.20
• Net weight: 1.86 kg
• Gross weight: 2.04 kg
• Shipping volume: 0.004 m³
• Country of origin: RS
• Custom tariff no.: 84139100
