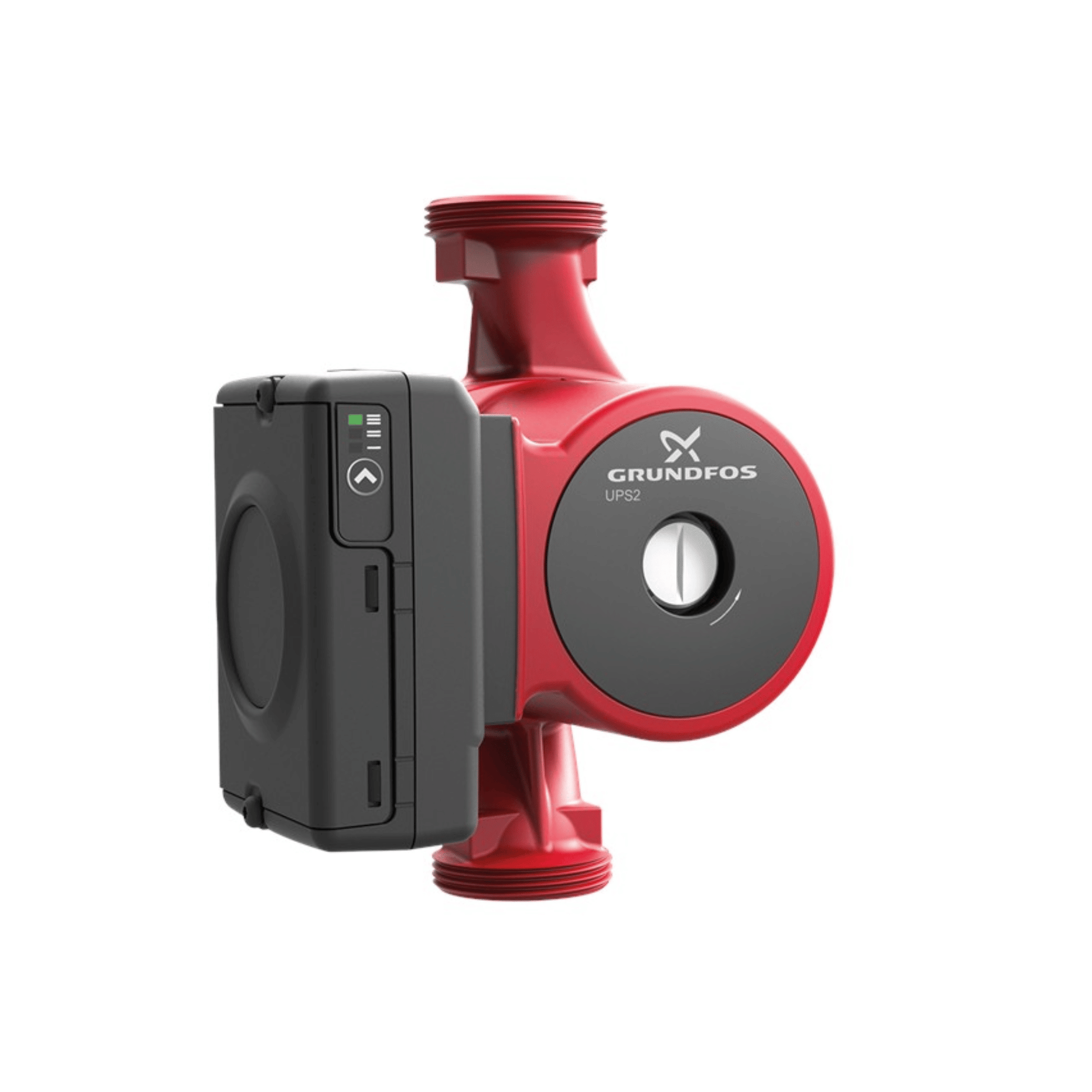

Grundfos UPS2 25-80 180 - 98707848

Grundfos UPS2 Circulator Pumps Databooklet

High-efficiency circulator pump with permanent-magnet motor (ECM technology) fit for the ErP directive no. 641/2009 due to continuous variable-speed control for circulation of clean heating water according to VDI 2035.

Features and benefits: UPS2 25-80 180

• complies with the requirements of the ErP directive as from 2015
• one pump replaces three variants
• it is available as pump head without pump housing. Fits all 4-m, 5-m and 6-m pump housings of the Series 100
• for tight installations, in, for example, boiler applications
• high energy savings thanks to an energy efficiency index (EEI) lower than 0.23
• complies with the German regulation on energy saving in buildings and building systems – Energieeinsparverordnung – EnEV §14(3)
• one button for simple selection among three proportional-pressure curves or three fixed speeds
• no corrosion issues thanks to the electrocoated pump housing
• reduced installation costs as no external motor protection is required.

Controls:

• Terminal box position: 9H

Liquid:

• Pumped liquid: Water
• Liquid temperature range: 2 .. 95 °C
• Selected liquid temperature: 60 °C
• Density: 983.2 kg/m³

Technical:

• Rated flow: 3.81 m³/h
• Rated head: 6.84 m
• TF class: 95
• Approvals: CE,WEEE,UKCA

Materials:

• Pump housing: Cast iron
• EN 1561 EN-GJL-150
• ASTM A48-25B
• Impeller: Composite
• PES 30% GF + PESU-GF20%

Installation:

• Range of ambient temperature: 0 .. 40 °C
• Maximum operating pressure: 10 bar
• Pipe connection standard: EN 1092-2
• Type of connection: G
• Size of inlet connection: 1 1/2 inch
• Pressure rating for connection: PN 10
• Port-to-port length: 180 mm

Electrical data:

• Power input P1: 140 W
• Mains frequency: 50/60 Hz
• Rated voltage: 1 x 230 V
• Maximum current consumption: 1.1 A
• Minimum current consumption: 0.1 A
• Enclosure class (IEC 34-5): X2D
• Insulation class (IEC 85): F
• Ex-protection standard: NONE
