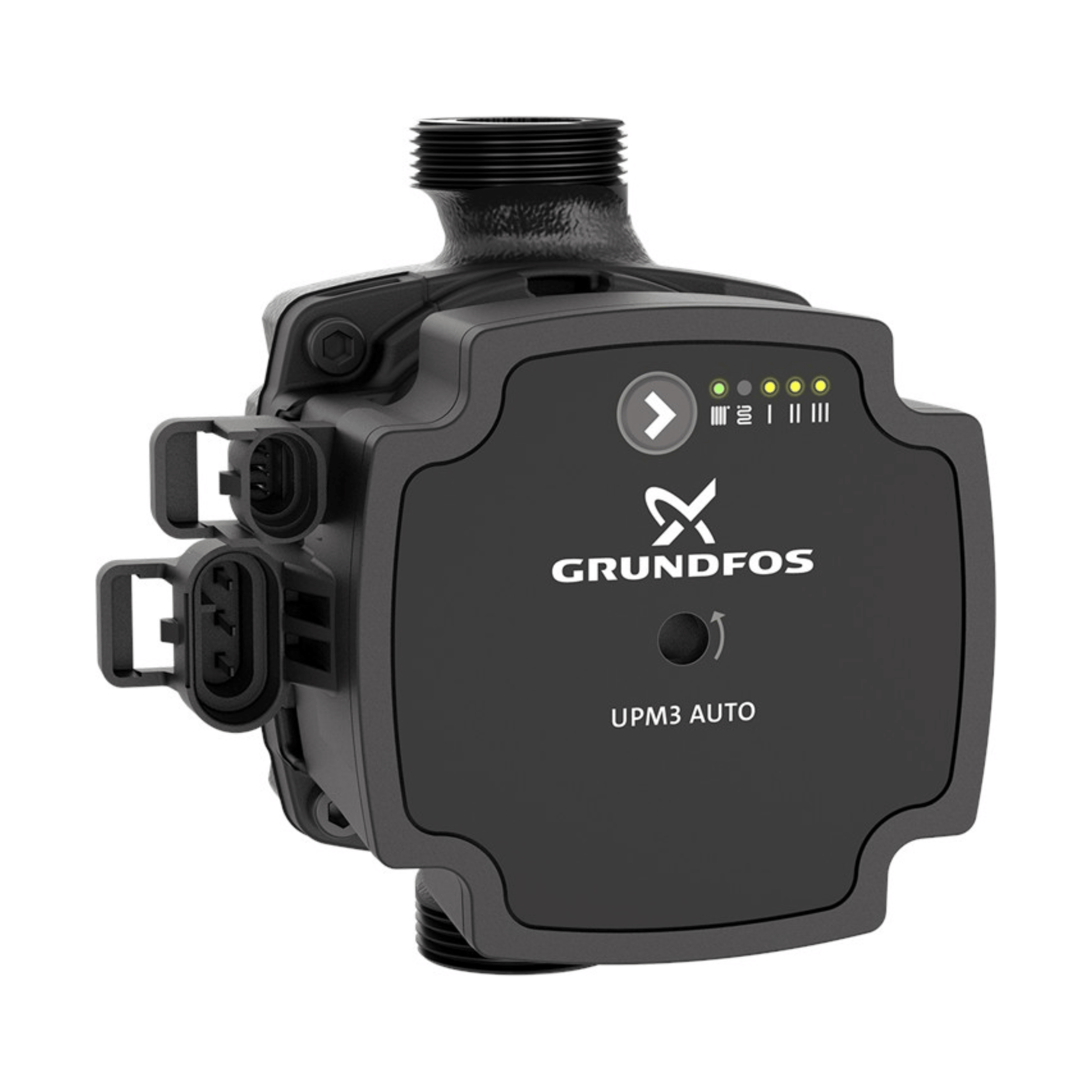

Grundfos UPM3 AUTO 15-50 130 ZZZ - 93370530

UPM3 AUTO is an OEM high-efficiency self-controlled circulator with constant control modes and the unique AUTOADAPT mode. The product is optimal for underfloor heating, various heating kits or integration in heating systems with constant or minor flow variations.

Controls:

• Terminal box position: 9H

Liquid:

• Pumped liquid: Water
• Liquid temperature range: 2 .. 110 °C
• Selected liquid temperature: 60 °C
• Density: 983.2 kg/m³

Technical:

• Maximum head: 50 dm
• TF class: 95
• Approvals: CE,VDE
• Model: W

Installation:

• Maximum ambient temperature: 70 °C
• Maximum operating pressure: 10 bar
• Port-to-port length: 160 mm

Electrical data:

• Power input - P1: 4 .. 33 W
• Mains frequency: 50 / 60 Hz
• Rated voltage: 1 x 230 V
• Maximum current consumption: 0.06 .. 0.36 A
• Enclosure class (IEC 34-5): IP44
• Thermal protec: ELEC

Others:

• Energy (EEI): 0.20
• Net weight: 1.82 kg
• Gross weight: 3.24 kg
