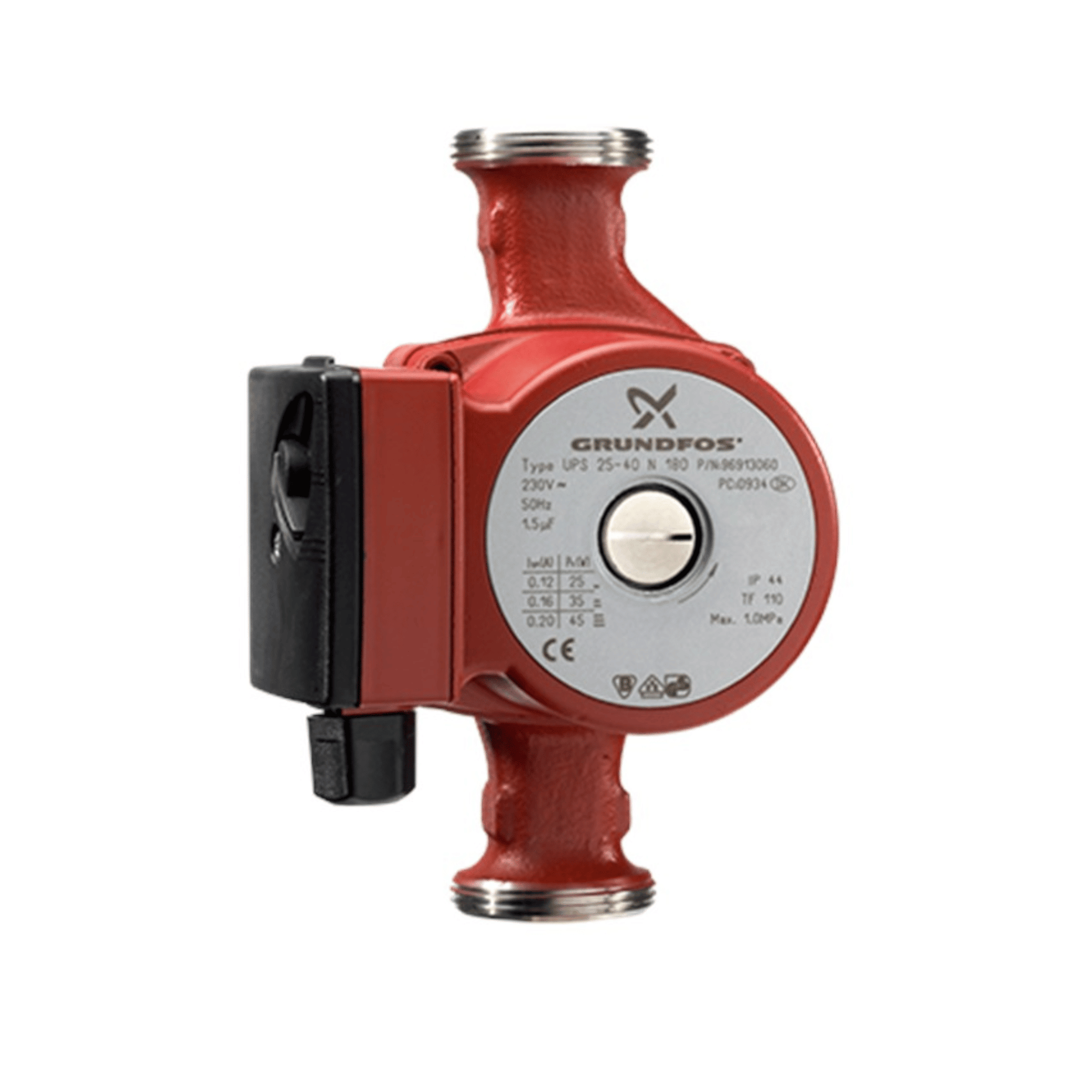

Grundfos UP 20-15 N 150 - 98057205

Grundfos Series 100, UP, UPS, UPSD Databooklet

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:

• Ceramic shaft and radial bearings.
• Carbon axial bearing.
• Stainless steel rotor can and bearing plate.
• Corrosion-resistant impeller, Composite.
• Stainless steel pump housing.

The motor is a 1-phase motor. No additional motor protection is required.

Controls:

• Terminal box position: 9H

Liquid:

• Pumped liquid: Water
• Liquid temperature range: 2 .. 110 °C
• Selected liquid temperature: 60 °C
• Density: 983.2 kg/m³

Technical:

• Rated flow: 1.1 m³/h
• Rated head: 0.646 m
• TF class: 95
• Approvals: CE,WEEE,UKCA

Materials:

• Pump housing: Stainless steel
• EN 1.4301
• AISI 304
• Impeller: Composite
• PES+30% GF

Installation:

• Range of ambient temperature: 0 .. 40 °C
• Amb. max at 80 dgr C liquid: 40 °C
• Maximum operating pressure: 10 bar
• Pipe connection standard: ISO 228-1
• Type of connection: G
• Size of connection: 1 1/4 inch
• Pressure rating for connection: PN 10
• Port-to-port length: 150 mm

Electrical data:

• Max. power input: 65 W
• Mains frequency: 50 Hz
• Rated voltage: 1 x 230 V
• Current in speed 3: 0.28 A
• Capacitor size - run: 2 µF
• Enclosure class (IEC 34-5): IP24
• Insulation class (IEC 85): F
• Ex-protection standard:: NONE

Others:

• Net weight: 2 kg
• Gross weight: 2.17 kg
• Shipping volume: 0.004 m³
• Country of origin: RS
• Custom tariff no.: 84137030
