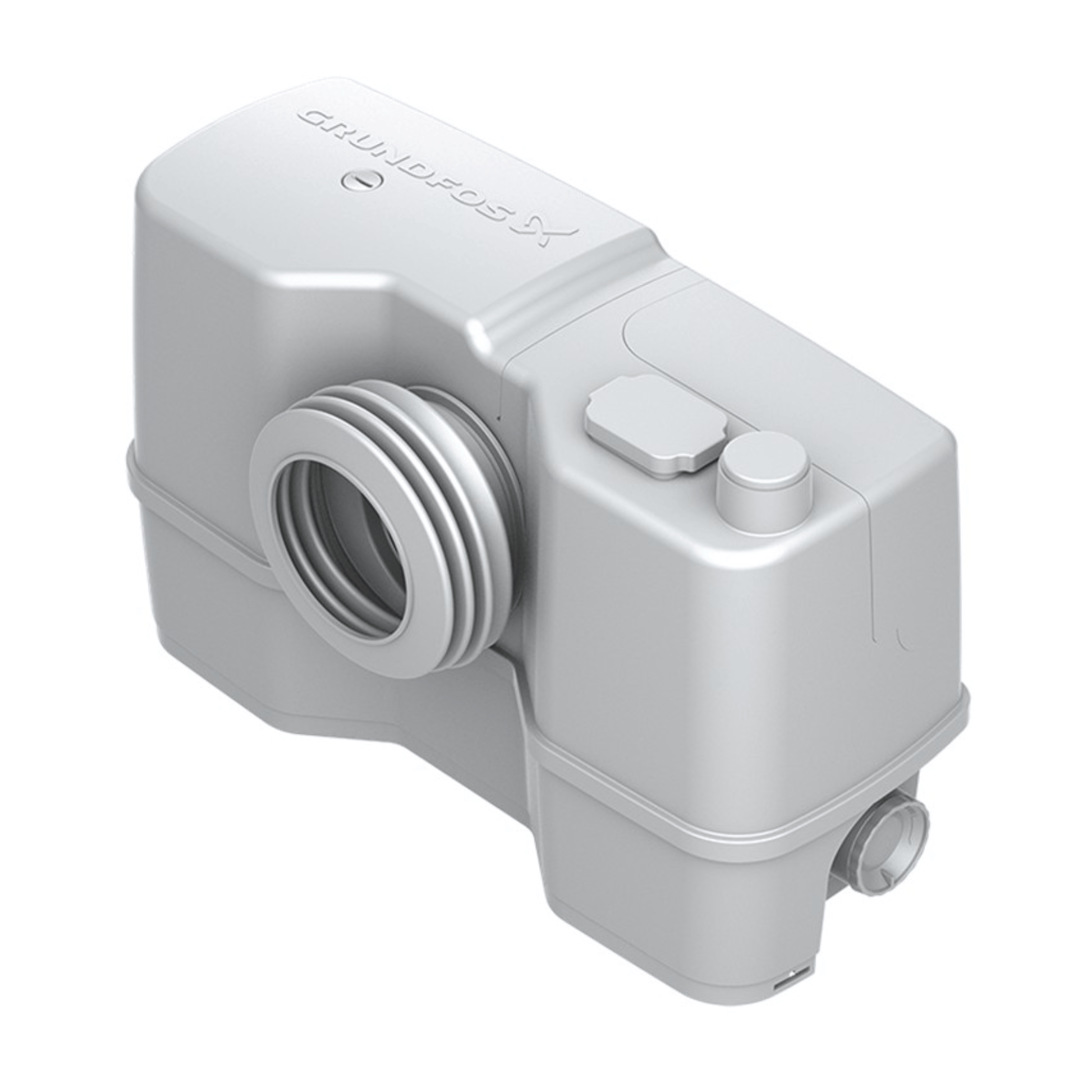

Grundfos SOLOLIFT2 WC-3 - 97775330

Grundfos SOLOLIFT2 Databooklet

Sololift2 WC-3 is a small, compact automatic lifting station suitable for pumping of wastewater in private dwellings in places where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 WC-3 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with additional connections on the lid and to the sides of the tank for, for example, washbasin, shower or bidet.

The pumping of liquids containing other material may cause faults and limit the scope of guarantee.

Sololift2 WC-3 is typically used to dewater:

• toilets, washbasins, showers and bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for the lowest construction heights, which can be an advantage in case of connection of a shower receptor.

The compact lifting station is equipped with:

• cable with or without plug (see technical data)
• horizontal or vertical fastening possibility of outlet-hose connector with several adaptors for pipes of Ø22-40 mm
• integrated-non return valve
• dry and high-performance motor unit incl. thermal protection, pressure switch and controller
• DN100 toilet connection hose
• two flexible connectors for inlet (adjustable in height) of pipes Ø36 or Ø40
• slot for an alarm board with buzzer (accessory)
• manual anti-clogging function and separate drain connection for service
• venting valve with overflow protection
• uplift fixation clips.

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long-lasting operation and easy-clean service.

Note: The discharge adaptor can be mounted vertically or horizontally. Vertical installation increases the flow (see data booklet and curves)

Liquid:

• Liquid temperature range: 0 .. 50 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³

Technical:

• Pump speed on which pump data are based: 2800 rpm
• Rated flow: 1.37 l/s
• Maximum flow: 2.48 l/s
• Rated head: 6.21 m
• Type of impeller: VORTEX with GRINDER
• Max. Particle: 25 mm
• Approvals: CE,CHROHS,MORO,UKCA
• Curve tolerance: ISO9906:2012 3B

Materials:

• Pump housing: Composite
• Impeller: Polymer - PPE
• Tank: PLASTIC
• PP

Installation:

• Range of ambient temperature: 0 .. 40 °C
• Type of inlet connection: Smooth pipe
• Type of outlet connection: Smooth pipe
• Size of inlet connection: 32/36/40, 36/40/50, DN 100
• 1/-/1.25. -/1.25/1.5. 4 inch
• Size of outlet connection: 22/25/28/32/36/40
• 0.5/0.75/-/-/1.25 inch
• Pressure rating for connection: PN 1.5
• Number of leads: 3X0.75mm2

Electrical data:

• Power input P1: 620 W
• Rated power - P2: 0.42 kW
• Mains frequency: 50 Hz
• Rated voltage: 1 x 220-240 V
• Rated current: 3 A
• Cos phi - power factor: 0.92
• Number of poles: 2
• Power cable type: H05VV-F-3G
• Length of power cable: 1.2 m
• Power plug: WITHOUT

Tank:

• Tank volume nominal: 9 L

Others:

• Net weight: 7.78 kg
• Gross weight: 9.95 kg
• Shipping volume: 0.052 m³
• Country of origin: RS
• Custom tariff no.: 84137030
• Environmental approvals: WEEE
