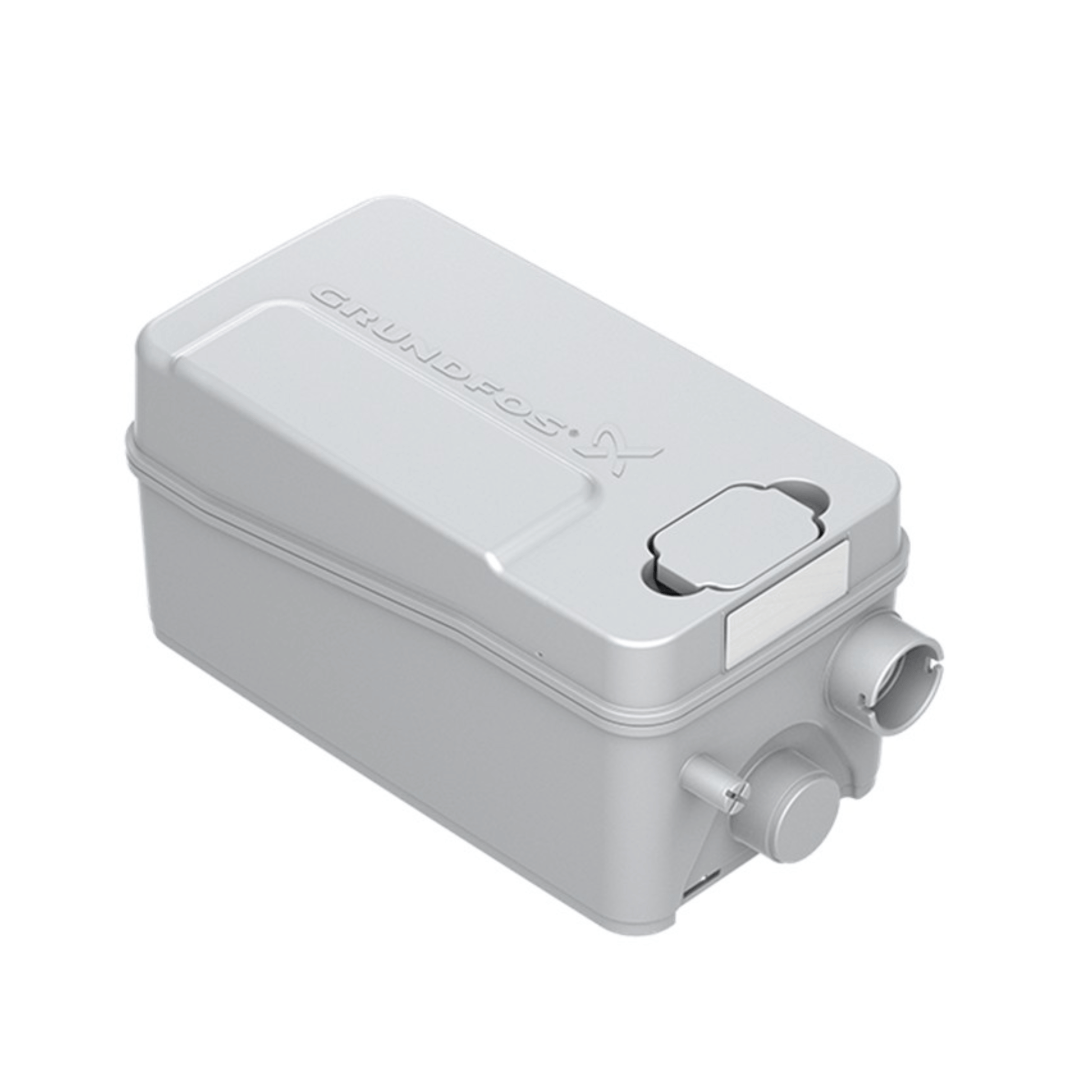

Grundfos SOLOLIFT2 D-2 - 97775333

Grundfos SOLOLIFT2 Databooklet

Sololift2 D-2 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where greywater (w/o faeces) cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 D-2 is typically used for:

• cabinet showers, washbasins or bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

Sololift2 D-2 is suitable for confined space conditions in built-in cabinets or also below shower receptors or pedestals.

The pumping of liquids containing other material may cause faults and limit the scope of our guarantee.

The compact lifting station is equipped with:

• cable with or without plug (see technical data)
• Discharge hose connector with several adaptors for pipes with Ø22-36mm
• integrated-non return valve
• dry and high-performance motor unit incl. thermal protection, pressure switch and controller
• Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
• manual anti-clogging function and separate drain connection for service
• venting valve with overflow protection
• uplift fixation clips.

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long-lasting operation and easy-clean service.

Liquid:

• Liquid temperature range: 0 .. 50 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³

Technical:

• Pump speed on which pump data are based: 2800 rpm
• Rated flow: 1.06 l/s
• Maximum flow: 1.98 l/s
• Rated head: 3.26 m
• Type of impeller: VORTEX
• Max. Particle: 10 mm
• Approvals: CE,CHROHS,MORO,UKCA
• Curve tolerance: ISO9906:2012 3B

Materials:

• Pump housing: Composite
• Impeller: Polymer - PA
• Tank: PLASTIC
• PP

Installation:

• Range of ambient temperature: 0 .. 40 °C
• Type of inlet connection: Smooth pipe
• Type of outlet connection: Smooth pipe
• Size of inlet connection: 36/40/50
• 1.25/1.5 inch
• Size of outlet connection: 22/32
• 0.75/1 inch
• Pressure rating for connection: PN 1.5
• Number of leads: 3X0.75mm2

Electrical data:

• Power input P1: 280 W
• Rated power - P2: 0.16 kW
• Mains frequency: 50 Hz
• Rated voltage: 1 x 220-240 V
• Rated current: 1.3 A
• Cos phi - power factor: 0.95
• Number of poles: 2
• Power cable type: H05VV-F-3G
• Length of power cable: 1.2 m
• Power plug: WITHOUT

Tank:

• Tank volume nominal: 2 L

Others:

• Net weight: 4.56 kg
• Gross weight: 5.9 kg
• Shipping volume: 0.022 m³
• Country of origin: RS
• Custom tariff no.: 84137021
• Environmental approvals: WEEE
