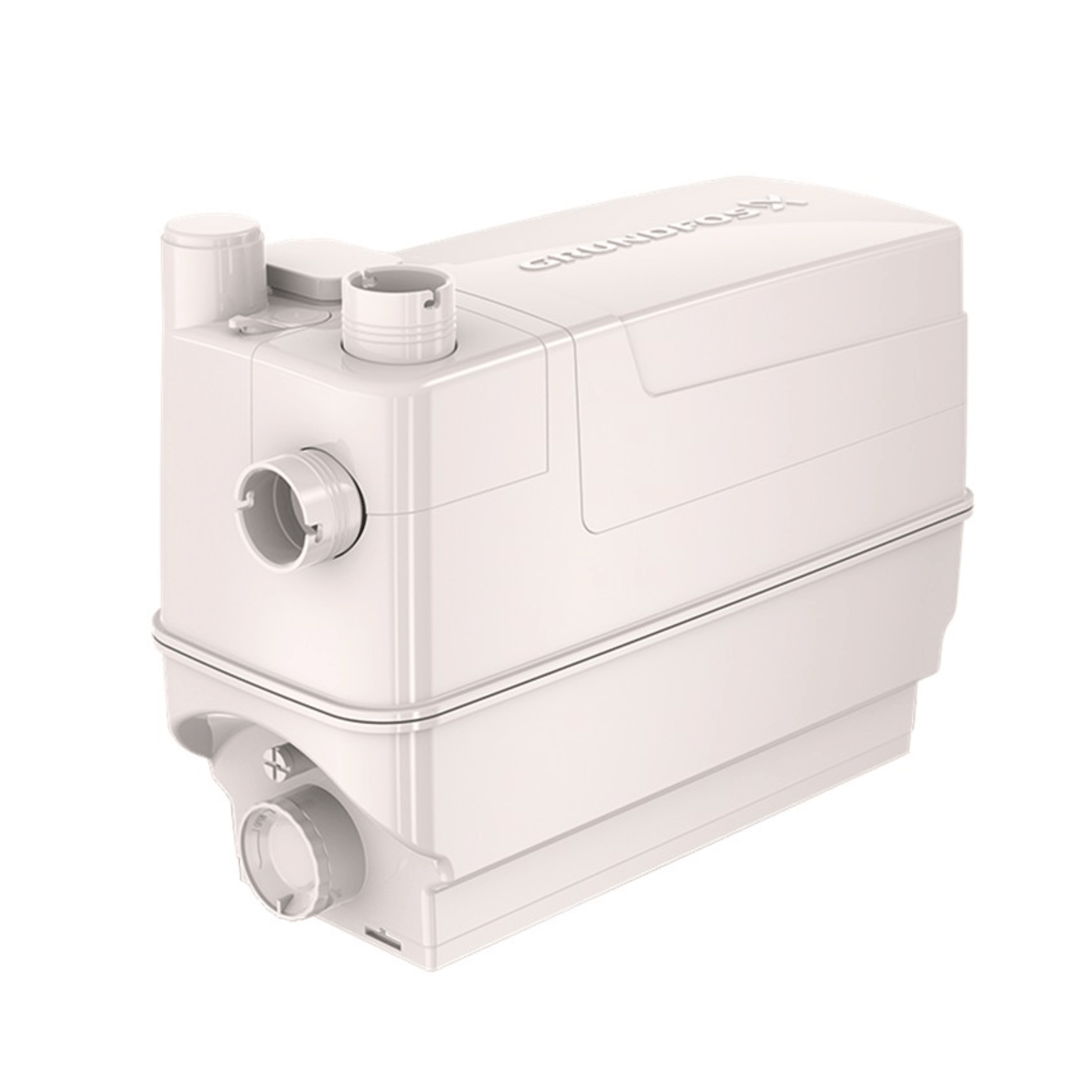

Grundfos SOLOLIFT2 C-3 - 97775332

Grundfos SOLOLIFT2 Databooklet

Sololift2 C-3 is a small, compact automatic lifting station suitable for pumping of grey water (without faeces) in private dwellings in places where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 C-3 is typically used for:

• cabinet showers, washbasins, bathtubs, washing machines (max. 90 °C) and dishwashers in basements below sewer level or in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Sololift2 C-3 is suitable for installation under a washbasin or particularly for confined space conditions in front wall structures and built-in cabinets. Extremely low switching levels for the lowest construction heights, which can be an advantage in case of connection of a shower receptor.

The compact lifting station is equipped with:

• cable with or without plug (see technical data)
• horizontal or vertical fastening possibility of outlet-hose connector with several adaptors for pipes of Ø22-40 mm
• integrated-non return valve
• dry and high-performance motor unit incl. thermal protection, pressure switch and controller
• Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
• manual anti-clogging function and separate drain connection for service
• venting valve with overflow protection
• uplift fixation clips.

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long-lasting operation and easy-clean service.

The discharge adaptor can be mounted vertically or horizontally. Vertical installation increases the flow (see data booklet and curves)

Liquid:

• Liquid temperature range: 0 .. 75 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³

Technical:

• Pump speed on which pump data are based: 2800 rpm
• Rated flow: 1.7 l/s
• Maximum flow: 3.4 l/s
• Rated head: 5.95 m
• Type of impeller: VORTEX
• Max. Particle: 10 mm
• Approvals: CE,CHROHS,MORO,UKCA
• Curve tolerance: ISO9906:2012 3B

Materials:

• Pump housing: Composite
• Impeller: Polymer - PA
• Tank: PLASTIC
• PP

Installation:

• Range of ambient temperature: 0 .. 40 °C
• Type of inlet connection: Smooth pipe
• Type of outlet connection: Smooth pipe
• Size of inlet connection: 32/36/40, 36/40/50
• 1/-/1.25. -/1.25/1.5 inch
• Size of outlet connection: 22/25/28/32/36/40
• 0.5/0.75/-/-/1.25 inch
• Pressure rating for connection: PN 1.5
• Number of leads: 3X0.75mm2

Electrical data:

• Power input P1: 640 W
• Rated power - P2: 0.42 kW
• Mains frequency: 50 Hz
• Rated voltage: 1 x 220-240 V
• Rated current: 3.1 A
• Cos phi - power factor: 0.9
• Number of poles: 2
• Power cable type: H05VV-F-3G
• Length of power cable: 1.2 m
• Power plug: WITHOUT

Tank:

• Tank volume nominal: 6 L

Others:

• Net weight: 7.25 kg
• Gross weight: 8.8 kg
• Shipping volume: 0.036 m³
• Country of origin: RS
• Custom tariff no.: 84137021
• Environmental approvals: WEEE
