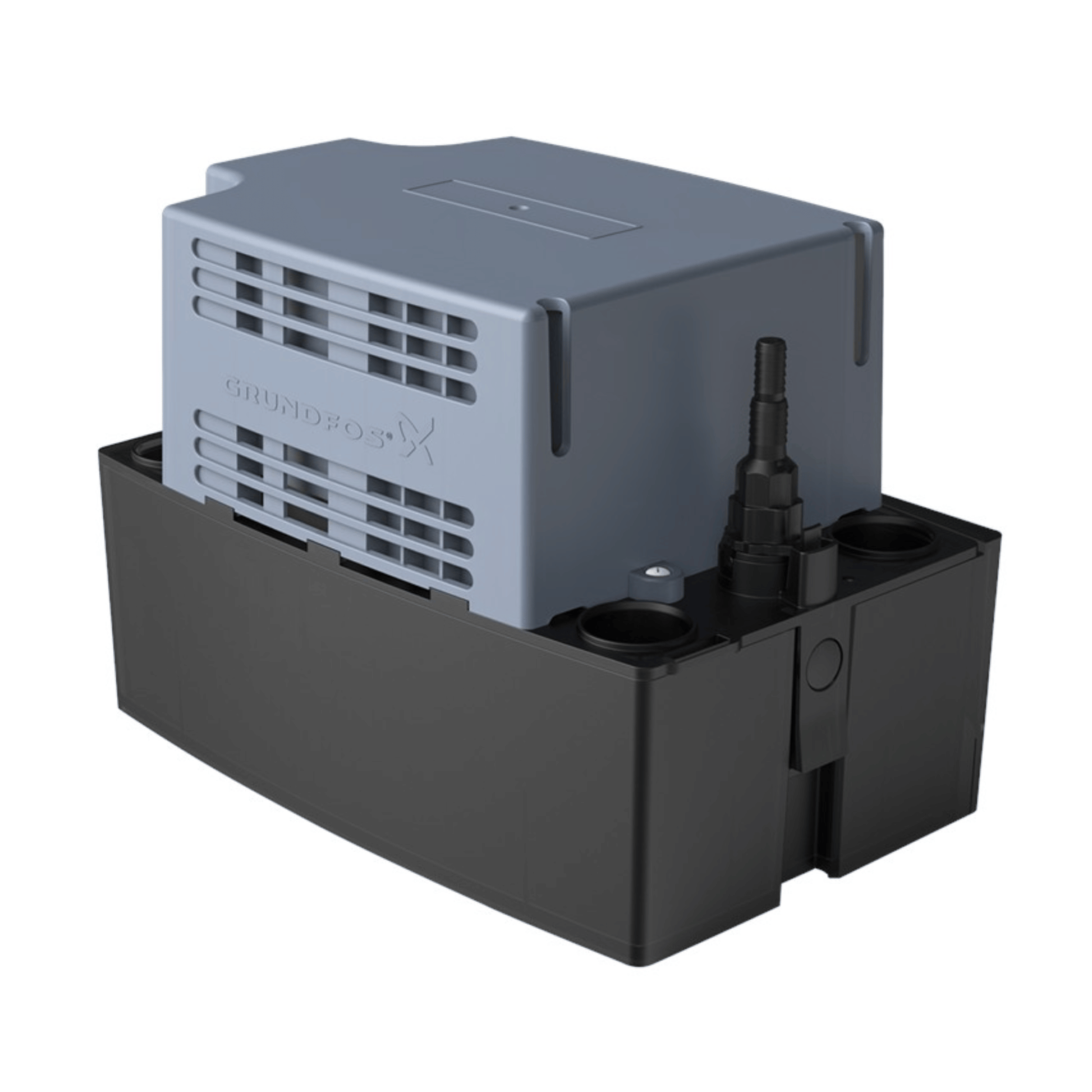

Grundfos CONLIFT1 LS - 98452219

Grundfos CONLIFT1 Databooklet

Grundfos Conlift1 LS are condensate removal pump solutions designed for pumping of condensate that is collected below sewer level or which cannot flow to the sewage system or drain off the building by means of a natural downward slope.

The solutions are suitable for the pumping of condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators. It is also suitable for condensate boilers and condensate with a pH value above 2.5. For condensate with a pH value below 2.5, we offer the pH+ box neutralisation unit as an optional accessory.

Features and benefits:

• Fully sealed against moisture and evaporation.
• Quick and easy installation.
• Very silent and smooth operation.
• Can be mounted on the floor or on a wall.
• Pre-assembled non-return valve.
• Pump operation test button.
• Incorporates high-water float switch.
• Fully automatic operation.
• Inlet and discharge hose connectors included.

Controls:

• Type of connector: No plug

Liquid:

• Maximum liquid temperature : 50 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³
• Min. pH-value: 2.7

Technical:

• Maximum flow: 0.163 l/s
• Maximum head: 5.7 m

Materials:

• Pump housing: Composite

Tank:

• Total volume of tank(s): 2.65 L

Installation:

• Type of inlet connection: 18-32
• Type of outlet connection: 8-10

Electrical data:

• Power input P1: 75 W
• Mains frequency: 50 Hz
• Rated voltage: 1 x 230 V
• Rated current: 0.65 A
• Enclosure class (IEC 34-5): IP20
• Insulation class (IEC 85): F
• Power cable type: H05W-F36
• Length of power cable: 1.7 m
• Power plug: No plug

Others:

• Net weight: 3.5 kg
• Gross weight: 3.8 kg
• Country of origin: CN
• Custom tariff no.: 84137021
• Environmental approvals: WEEE
