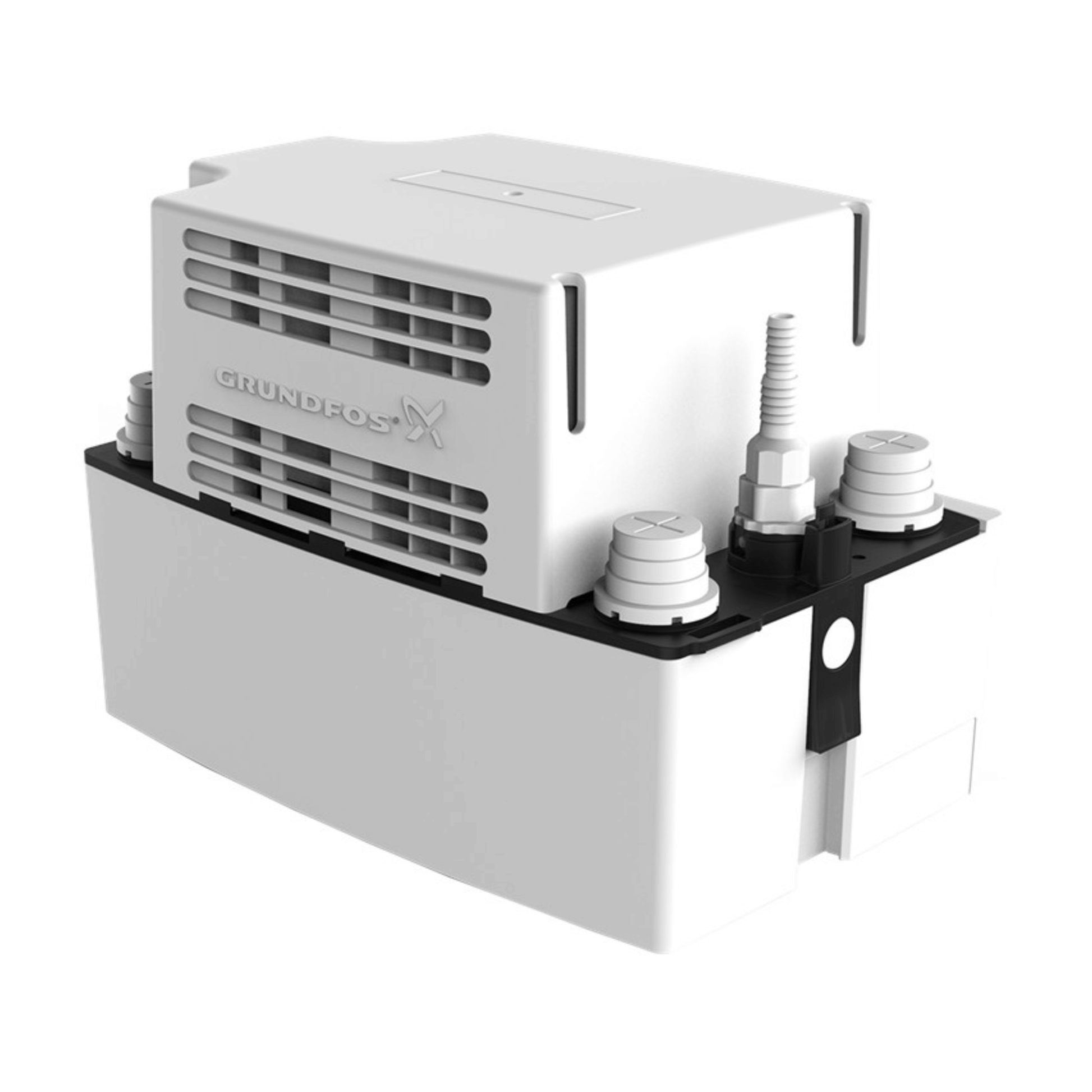

Grundfos CONLIFT1 - 97936173

Grundfos CONLIFT1 Databooklet

CONLIFT1 are condensate-removal pump solutions designed for pumping of condensate that is collected below sewer level or which cannot flow to the sewage system or drain of the building by means of a natural downward slope.

The solutions are suitable for the pumping of condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators. It is also suitable for condensate boilers and condensate with a pH value above 2.5.

Features and benefits:

• Fully sealed against moisture and evaporation.
• Quick and easy installation.
• Very silent and smooth operation.
• Can be mounted on the floor or on a wall.
• Pre-assembled non-return valve.
• Pump operation test button.
• Incorporates high-water float switch.
• Fully automatic operation.
• Inlet and discharge hose connectors included.

Controls:

• Type of connector: No plug

Liquid:

• Maximum liquid temperature : 50 °C
• Selected liquid temperature: 20 °C
• Density: 998.2 kg/m³
• Min. pH-value: 2.7

Technical:

• Maximum flow: 0.163 l/s
• Maximum head: 5.7 m

Materials:

• Pump housing: Composite

Tank:

• Total volume of tank(s): 2.65 L

Installation:

• Type of inlet connection: 18-32
• Type of outlet connection: 8-10

Electrical data:

• Power input P1: 75 W
• Mains frequency: 50 Hz
• Rated voltage: 1 x 230 V
• Rated current: 0.65 A
• Enclosure class (IEC 34-5): IP24
• Insulation class (IEC 85): F
• Power cable type: H05W-F36
• Length of power cable: 1.7 m
• Power plug: No plug

Others:

• Net weight: 3.8 kg
• Gross weight: 4.1 kg
• Country of origin: CN
• Custom tariff no.: 84137021
• Environmental approvals: WEEE
