Flamco Airfix Expansion Vessel - Potable 8L
Flamco Airfix Expansion Vessel - Potable 8L
Regular price
£39.61
Regular price
Sale price
£39.61
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

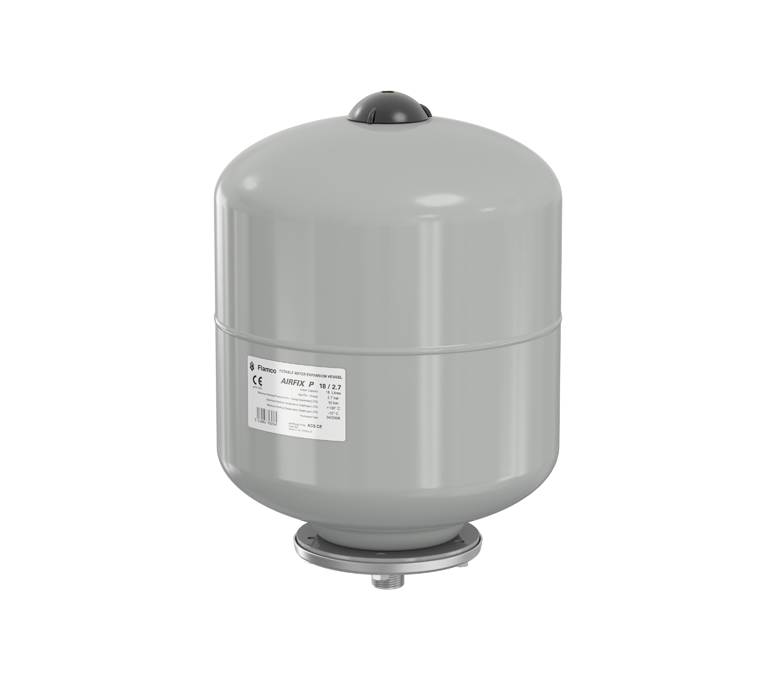

Flamco Airfix P - 8 Litre
Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems.
Nitrogen gas filling for longer retention of pre-charge.
With single threaded steel connection and plastic insert (no flow through function).
Maximum working pressure: 10.0 bar.
Min./ max. working temperature (bladder): -10 / 100 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Colour: Coated aluminium (RAL 9006).
Manufacturers Code: 24903
Model: Airfix P 8
Capacity: 8 Litres
Pre-charge: 2.7 Bar
Dimensions: 220mm Diameter x 305mm High
Connection: G 3/4" M
Bladder: Butyl
Weight: 2.2kg
Classification General Data
Etim Group: Pressure increase/decrease
Etim Class: Membrane pressure expansion vessel
Product Name: Airfix P DHW exp.ves. 8/2,7[10bar]
Brand: Flamco
Product Type: Sanitary Welded [10bar]
Attributes
Suitable for central heating: Yes
Suitable for cooling: Yes
Suitable for tap water: Yes
Suitable for solar collector circuit: No
Volume: 8 Litre
Pre-pressure: 2.7 Bar
Max. operating pressure: 10 Bar
Medium temperature (continuous): -10 - 100 °C
With fixed wall support: No
Vertical positioning: Yes
Horizontal positioning: No
With legs: No
With exchangeable membrane: Yes
Nominal diameter expansion connection: 3/4 inch (20)
Outer pipe diameter, expansion connection: 26.5 Millimetre
Connection: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Material membrane/bladder: IIR (butyl)
Flange compression class: PN 16
With vessel manifold: No
Colour: White
With drain: No
Diameter: 220 Millimetre
Height: 305 Millimetre
Tilting height: 376.07 Millimetre
With pressure gauge: No
With safety valve: No
With mounting material: No
Max. glycol mixture: 50 Percentage
