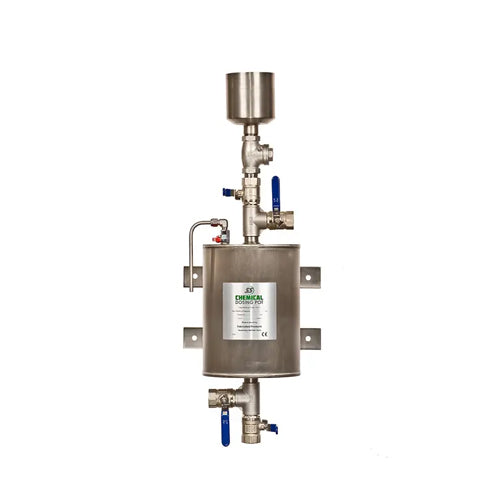

Fabricated Products Stainless Steel Chemical Dosing Pot - 3.5 Litres - SSDP 3.5

Description

Closed re-circulating water systems (chilled or hot water) can be simply dosed on a regular/manual basis by the use of these dosing pots. Fitted across flow and return lines, they provide a means to annex a portion of the system water which can be drained away and replaced with the chemical to be dosed. When re-connected to the system, the chemical is flushed through. The dosing pots are fitted with large 1" valves, which ensure quick and easy action of the pot even in low flow/pressure conditions. An air vent valve enables the pot to be purged during filling thus eliminating undesirable air ingress to the system. A NRV check valve is fitted into the fill line below the tundish.

Features & Benefits

• 3.5 Litres - SS Chemical Dosing Pot Stainless Steel - SSDP 3.5
• Required in order to feed liquid chemicals, such as corrosion inhibitors, into closed systems
• Supplied complete with necessary valves
• Quick and easy action, even in low flow/pressure conditions
• All stainless steel construction
• Fitted across the flow and return lines
• 25mm valve size connections
• Welded to BS EN 287
