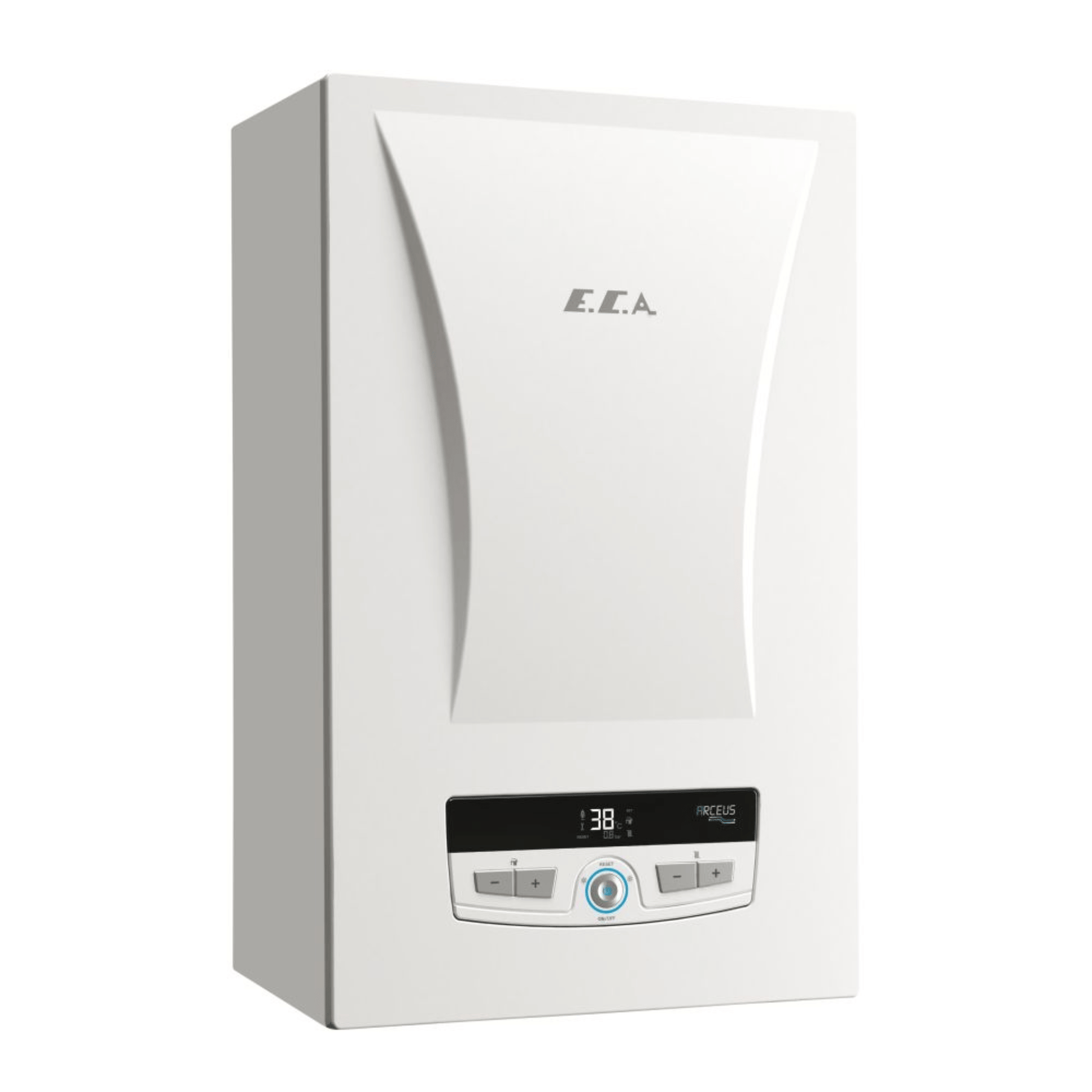

E.C.A. Arceus MT 15 - Electric Combi Boiler - 8116271010

MT (Monothermic Type) Arceus boilers have two water heating circuits inside and therefore operate both as a space heater (for Central Heating) and instantaneous water heater (for Domestic Hot Water). The operation principle of the boiler is based on heating the water that enters from the inlet of a tank-formed heat exchanger which contains resistor heaters through the outlet. Arceus electric boilers of different capacities contain 3,6 or 9 resistors. Unlike gas boilers which can modulate in small intervals of thermal power input within the range of minimum and nominal power input, an Arceus electric boilers heat modulates in as many stages as the number of electric resistors. Every single resistor is either "off" or "on" in full capacity, so momentary power input of the boiler during operation is simply the sum of the resistor capacities which are turned on.

As the boiler is operated to heat the home through radiators or underfloor heating installation, water coming from the central heating (CH) return connection goes through the heat exchanger tank and gets hotter. The outlet pipe of the tank is connected to the hydroblock and a 3 way valve directs water to the central heating via the central heating node.

For domestic hot water (DHW) heating, the water that leaves the tank is directed to the plate heat exchanger, discharges some of its heat to the other side of the plates and is sent back to the tank by the circulation pump. The plate heat exchangers other side is connected to the domestic how waters inlet and outlet nodes. The water gets heated during transition through the plate heat exchanger and leaves the boiler hotter from the domestic hot water node.

Arceus range rate technology can make the boiler more efficient resulting better ErP rating. e.g. 12Kw Arceus Electric Boiler heating side range rated from 12 to 6 will result in efficiency rating D to B for heating.

E.C.A Arceus Combi Installation Manual

E.C.A Arceus Combi User Manual

• Zero emission (COx, NOx) and zero waste (H2O) in the environment used
• 100% efficiency, Silent operation (38dB)
• ErP-C Domestic water efficiency class, ErP-D seasonal heating efficiency class
• Supply energy control with fault diagnosis system and contactor circuit
• Increased strength thanks to the stainless heating tank and the special alloy resistor
• Saving in usage area with minimal dimensions
• 400V Three-phase and 230V Single-phase supply up to 15kW
• Automatic bypass system that protects the installation and the boiler
• Frost protection
• ECO and COMFORT mode for the domestic water circuit
• Solar energy system compatibility
• Compatibility with IOS and Android applications via smart room thermostat
• Less energy consumption and suitability for every space with the 3-stage circulation pump
• CE, TSE, UkrSEPRO, EAC, WRAS documents
• Boiler Size: 678 x 410 x 288 mm

3 Years Warranty
