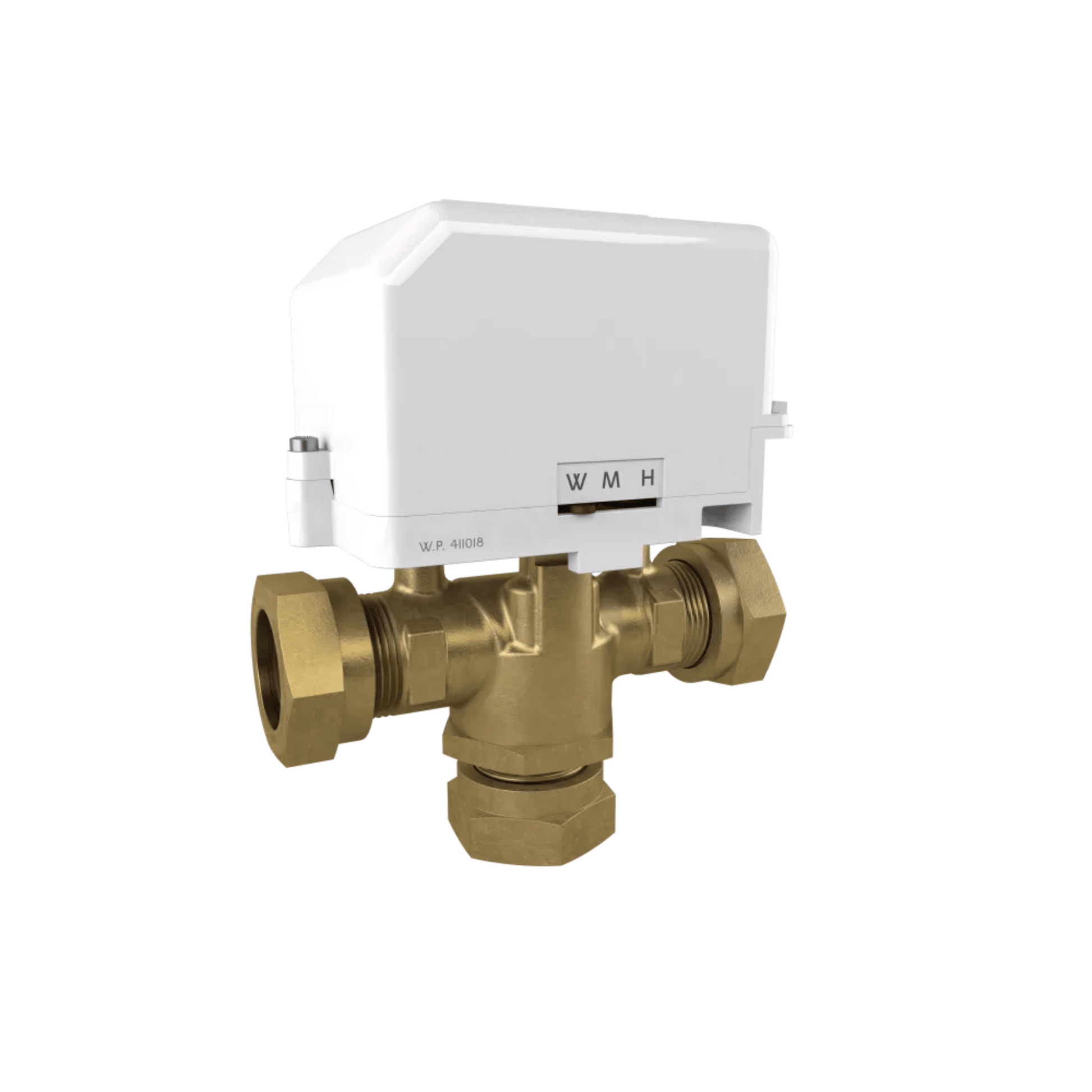

Drayton ZA5/679-3 - 3 Port Diverter Valve - 5 Wire SPST Switch - 22mm - 27111
Drayton ZA5/679-3 - 3 Port Diverter Valve - 5 Wire SPST Switch - 22mm - 27111
- Lead Time: 1-5 Working Days*
Regular price
£83.88
Regular price
Sale price
£83.88
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Drayton Motorised Valves Datasheet
The Drayton 3 port diverters are available in 22mm and 28mm. All models feature "snap-on" actuators and have simple industry-standard wiring and dimensions.
- 22mm - no switch
- 22mm - 5 wire SPST switch
- 28mm - no switch
- 230V a.c. ≈5 watts
- Replaceable actuators & motors
- 100% tight shut off
- Valve position indicator
- Spring return
Specifications
- Part numbers: 22mm 3 Port diverter valve (no switch): 27102 - 22mm 3 Port diverter valve (5 wire switch): 27111 - 28mm 3 Port diverter valve (no switch): 27207
- Applied standards: EN60730-1
- Standard motor voltage: 230V a.c. ≈5 watts
- Valve operation: Energise to open port A
- Operating time: Motor 12 secs, spring return 6 secs
- Max. static pressure: 8.6 Bar
- Max. differential pressure: 0.7 Bar
- Water temperature: 93°C max., 2°C min.
- Max. ambient temperature: 52°C
- Valve body: Brass forging
