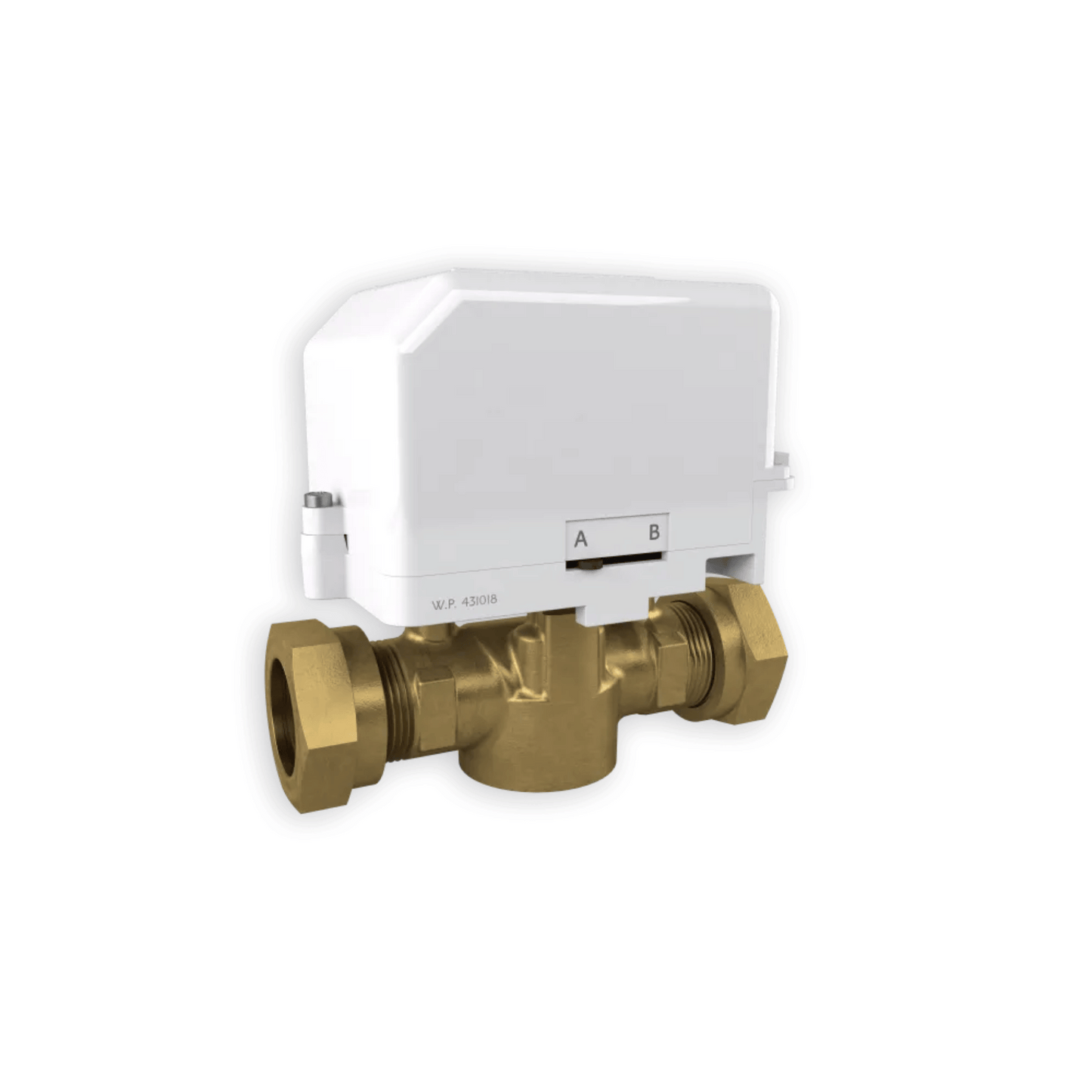

Drayton ZA5/679-2 - 2 Port Valve - 5 Wire SPST Switch - 22mm - 27100
Drayton ZA5/679-2 - 2 Port Valve - 5 Wire SPST Switch - 22mm - 27100
- Lead Time: In stock, ready for despatch*
Regular price
£46.97
Regular price
Sale price
£46.97
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Drayton 2 port valves are available in 22mm and 28mm. All models feature "snap-on" actuators and have simple industry-standard wiring and dimensions.
- 22mm 5 wire SPDT switch
- 28mm 5 wire SPDT switch
- 230V a.c. ≈5 watts
- Replaceable actuators & motors
- 100% tight shut off
- Valve indicator
- Spring return
Specification
- Part numbers: 22mm 2 Port zone valve: 27100, 28mm 2 Port zone valve: 27205
- Standard motor voltage: 230V a.c. ≈5 watts
- Valve operation: Standard valves - energise to open
- Operating time: Motor 14 secs, spring return 6 secs
- Max. static pressure: 8.6 Bar
- Max. differential pressure: 0.7 Bar
- Water temperature: 93°C max., 2°C min.
- Max. ambient temperature: 52°C
- Valve body: Brass forging
- Applied standards: EN60730-1
