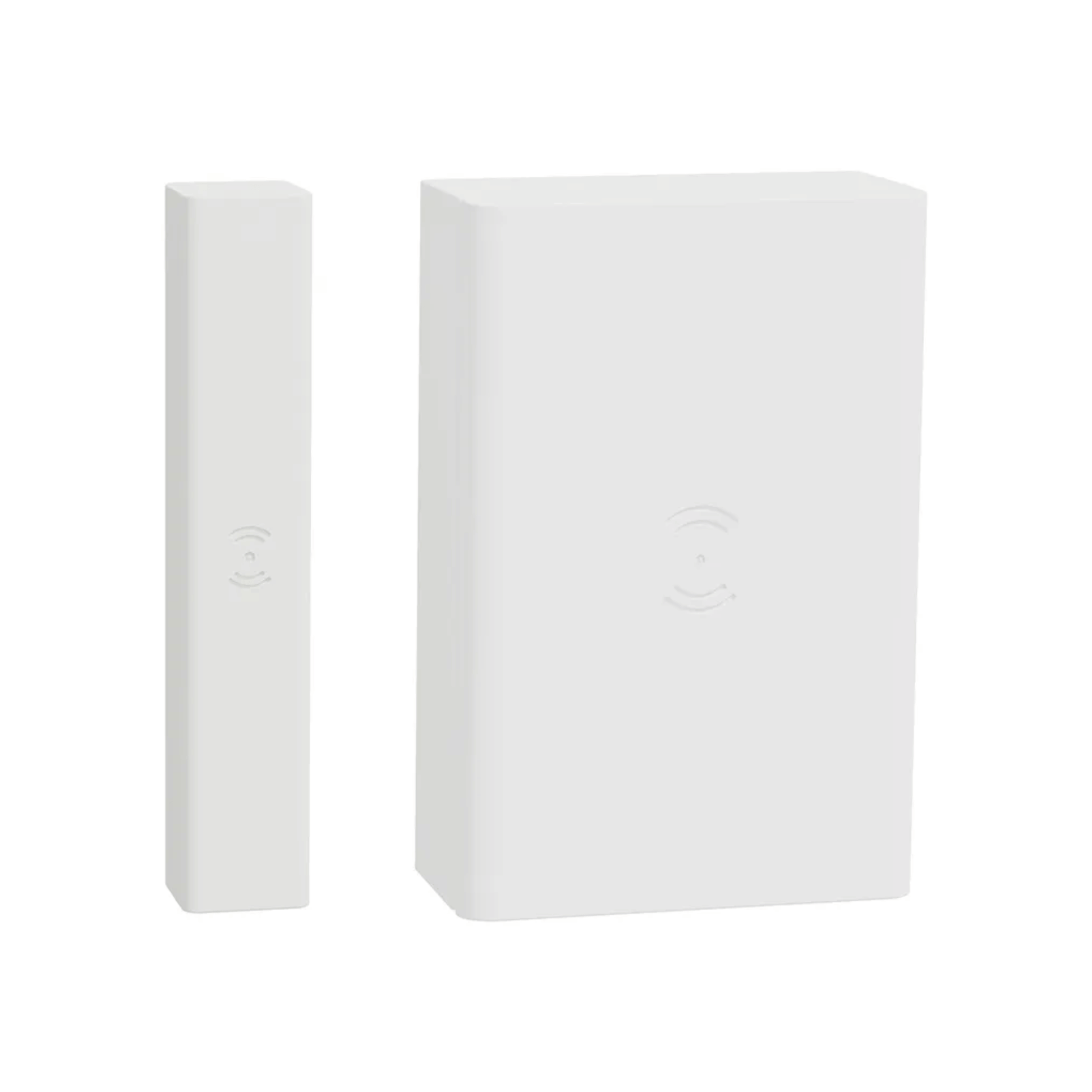

Drayton Wiser Window & Door Sensor - CCT591012

Wiser 2nd Generation Datasheet

Remotely monitor the status of windows or doors. Detects when windows or doors are opened or closed, enabling energy saving automations, such as turning the heating off when a window is opened. Smartphone notifications of window/door status and in-app log.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Detects if windows or doors are open or closed
• Create energy-saving automations based on detection e.g. If window is open, turn off heating
• Battery-powered
• Easy installation with screws or tape
• App notifications of change when away from home
• Low battery notification
• Requires any Wiser 2nd Generation Hub

Specifications

• Part number: CCT591012
• Height: 50mm
• Width: 42mm
• Depth: 16.3mm
• Power supply: Battery 3V / CR2450
• Wiring: No wiring required
• Interfaces: Push Button/LED
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 40m in free air
• Mounting: Screw or supplied adhesive strip
• Max. radio frequency power transmitted: 2.5mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 60669-1 & 60669-2-5; EN 60730-1 & 60730-2-9 & 60730-2-13; EN 301 489
• Pack contents: 1 x Primary part (sensing circuit); 1 x Secondary part (magnet); 1 x Base plate; 1 x Adhesive pad; 1 x Screws (2 x ST2 x 10mm, 1 x M2 x 3mm); 1 x Installation instructions
