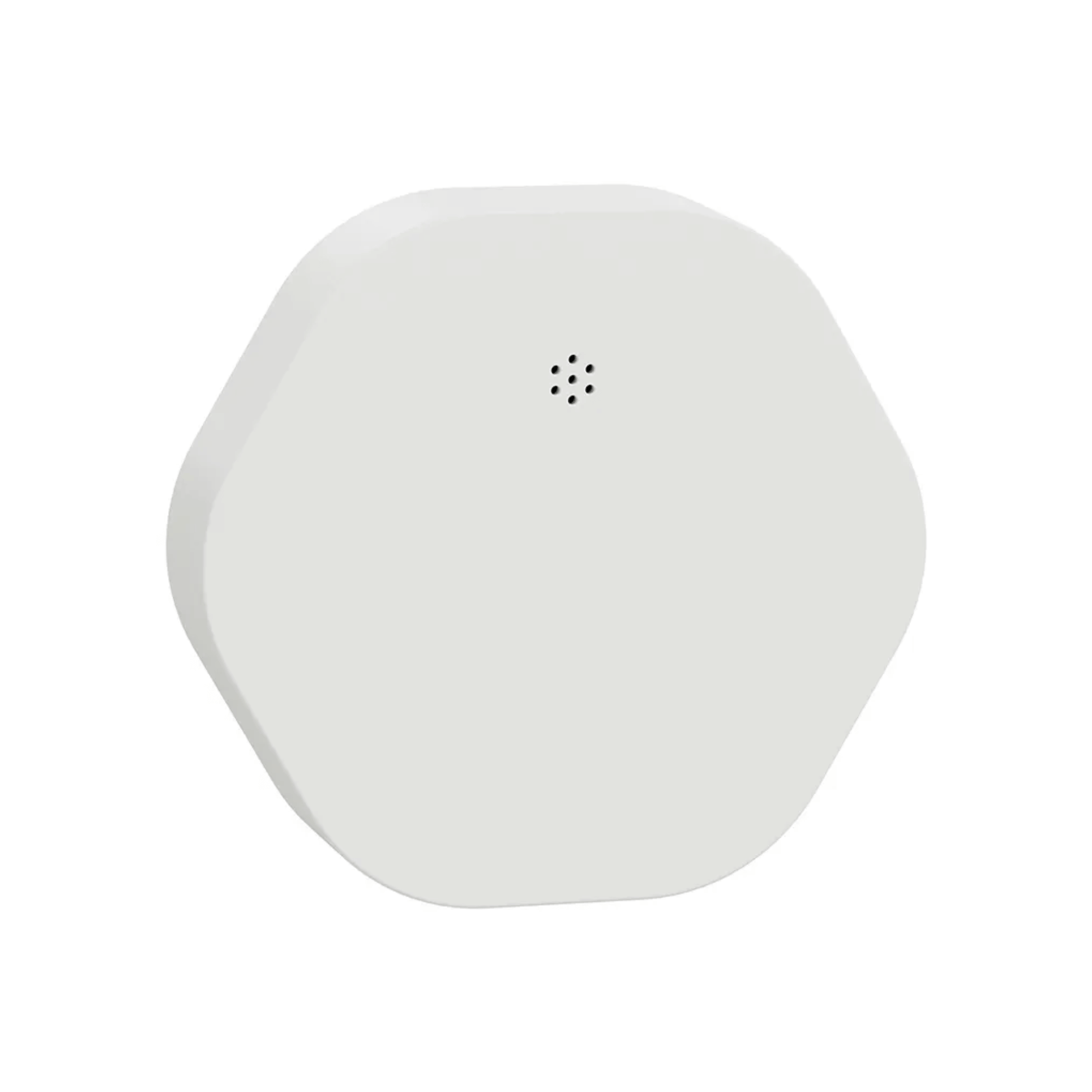

Drayton Wiser Water Leakage Sensor - CCT592012

Wiser 2nd Generation Datasheet

Detects the presence of water, sounding an audible alarm. Connect to any Wiser 2nd Generation Hub for smartphone alerts and in-app monitoring. Can be used in areas at risk of leaks such as under baths and sinks.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Alarm sounds when water detected
• App notification of incident when you’re away from home.
• Tailor-made automations based on detection of water
• Simple installation with no wiring required
• Battery powered
• Requires any Wiser 2nd Generation Hub for smart features

Specifications

• Part number: CCT592012
• Height: 70.8mm
• Width: 66.7mm
• Depth: 19mm
• Power supply: Battery 2 x 1.5V / LR03 AAA
• Wiring: No wiring required
• Interfaces: Push Button/LED
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP44
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 40m in free air
• Max. radio frequency power transmitted: 2.5mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 60669-1 & 60669-2-5; EN 60730-1 & 60730-2-9 & 60730-2-13; EN 301 489
• Pack contents: 1 x Wiser Water Leakage Sensor; 1 x Installation instructions
