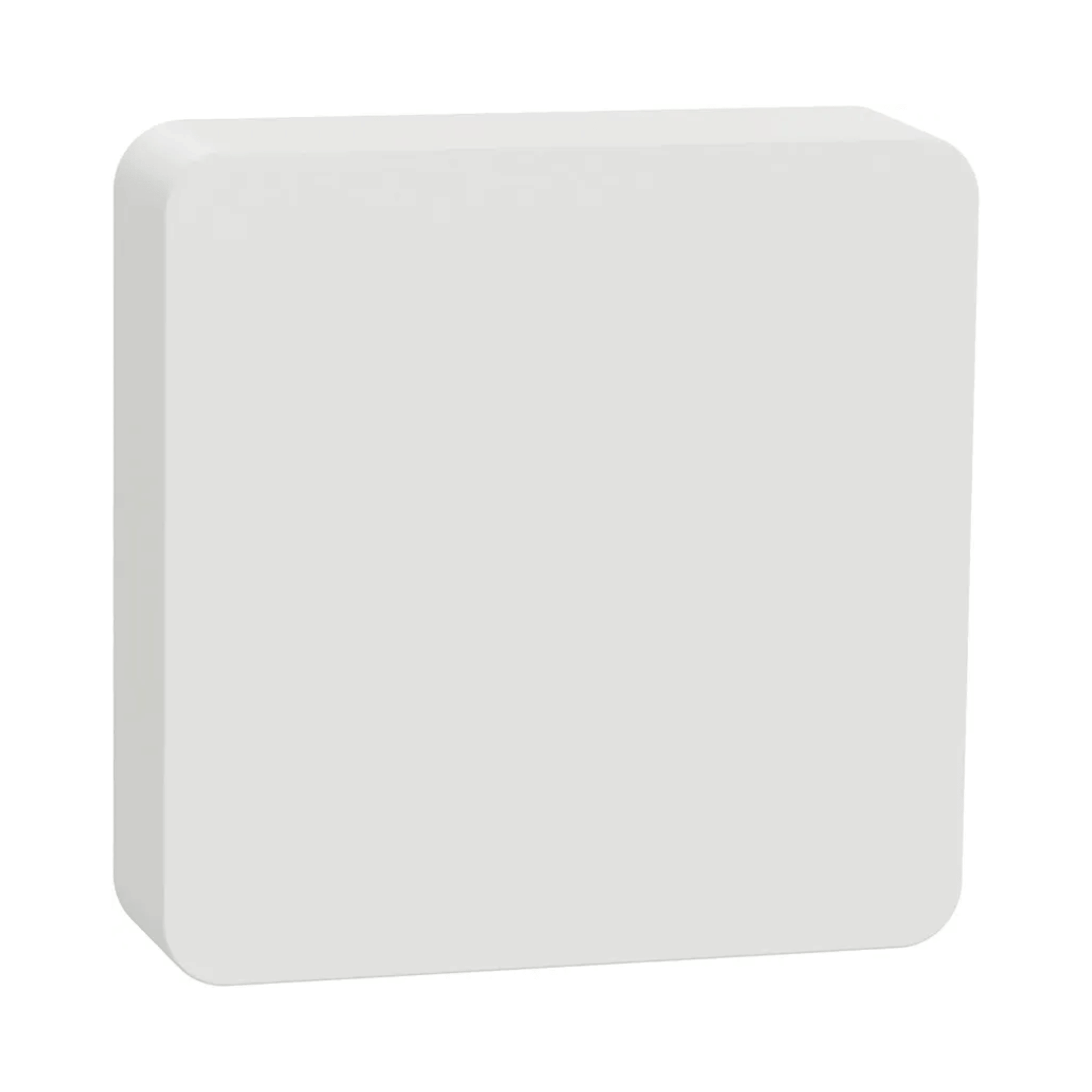

Drayton Wiser Temperature & Humidity Sensor - CCT593012

Wiser 2nd Generation Datasheet

A discreet and cost-effective alternative to the Wiser Room Thermostat. Monitor temperature and humidity and set automations with other Wiser Smart Home devices via the Wiser Home app.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Monitor temperature and humidity remotely via the Wiser Home app
• Battery powered
• Simple installation with screws or tape
• Can be used as a discreet alternative to the Wiser Room Thermostat
• Create automations and moments via the Wiser Home app
• Works with Amazon Alexa, the Google Home and IFTTT
• Requires any Wiser 2nd Generation Hub

Specifications

• Part number: CCT593012
• Height: 45mm
• Width: 45mm
• Depth: 17.2mm
• Power supply: Battery 3V / CR2450
• Wiring: No wiring required
• Interfaces: Push Button/LED
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 40m in free air
• Max. radio frequency power transmitted: 2.5mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 60669-1 & 60669-2-5; EN 60730-1 & 60730-2-9 & 60730-2-13; EN 301 489
• Pack contents: 1 x Sensor; 1 x Base plate; 1 x Adhesive pad; 4 x Screws (2 x ST2.3 x 15mm, 2 x M2 × 3mm); 2 x Wall plugs; 1 x Installation instructions
