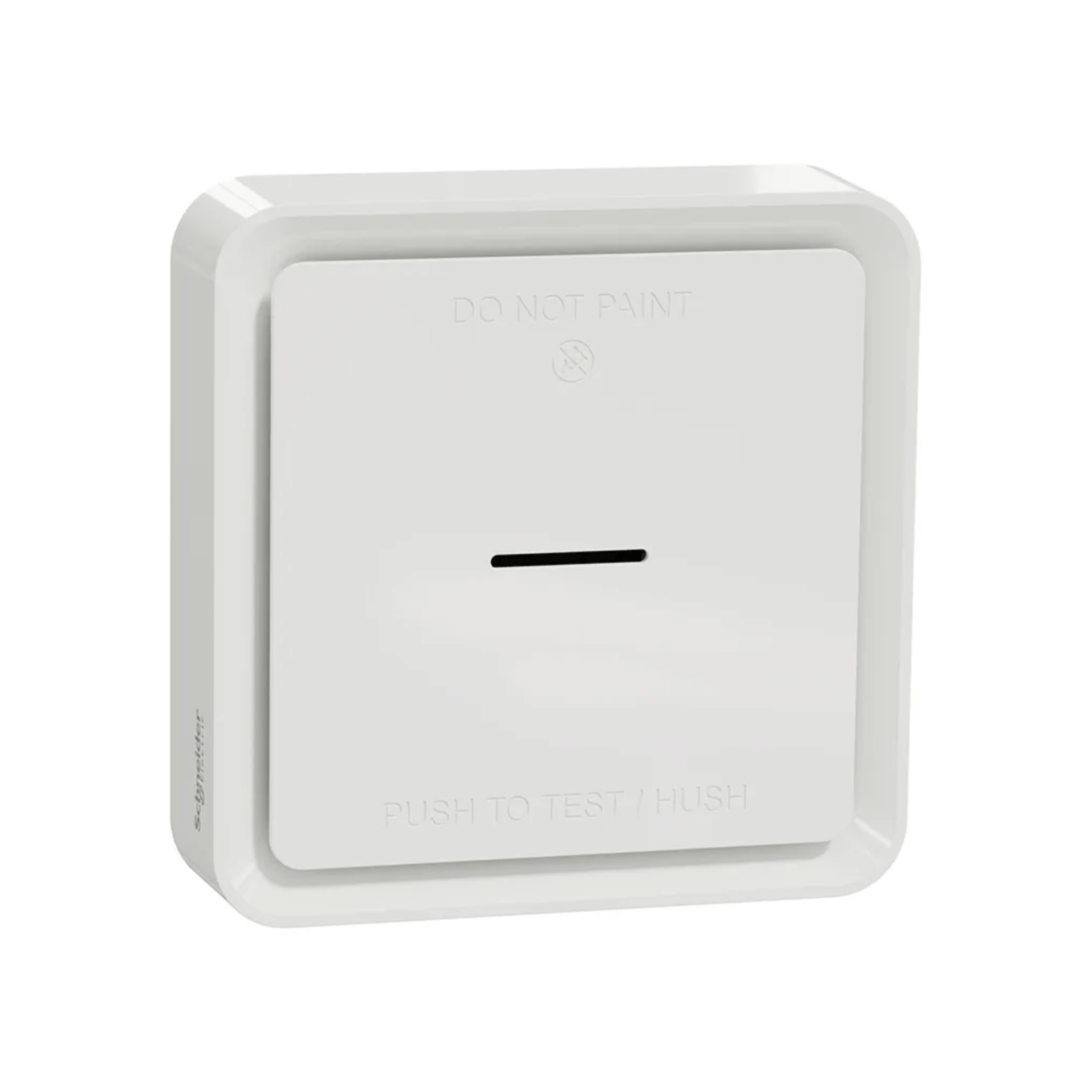

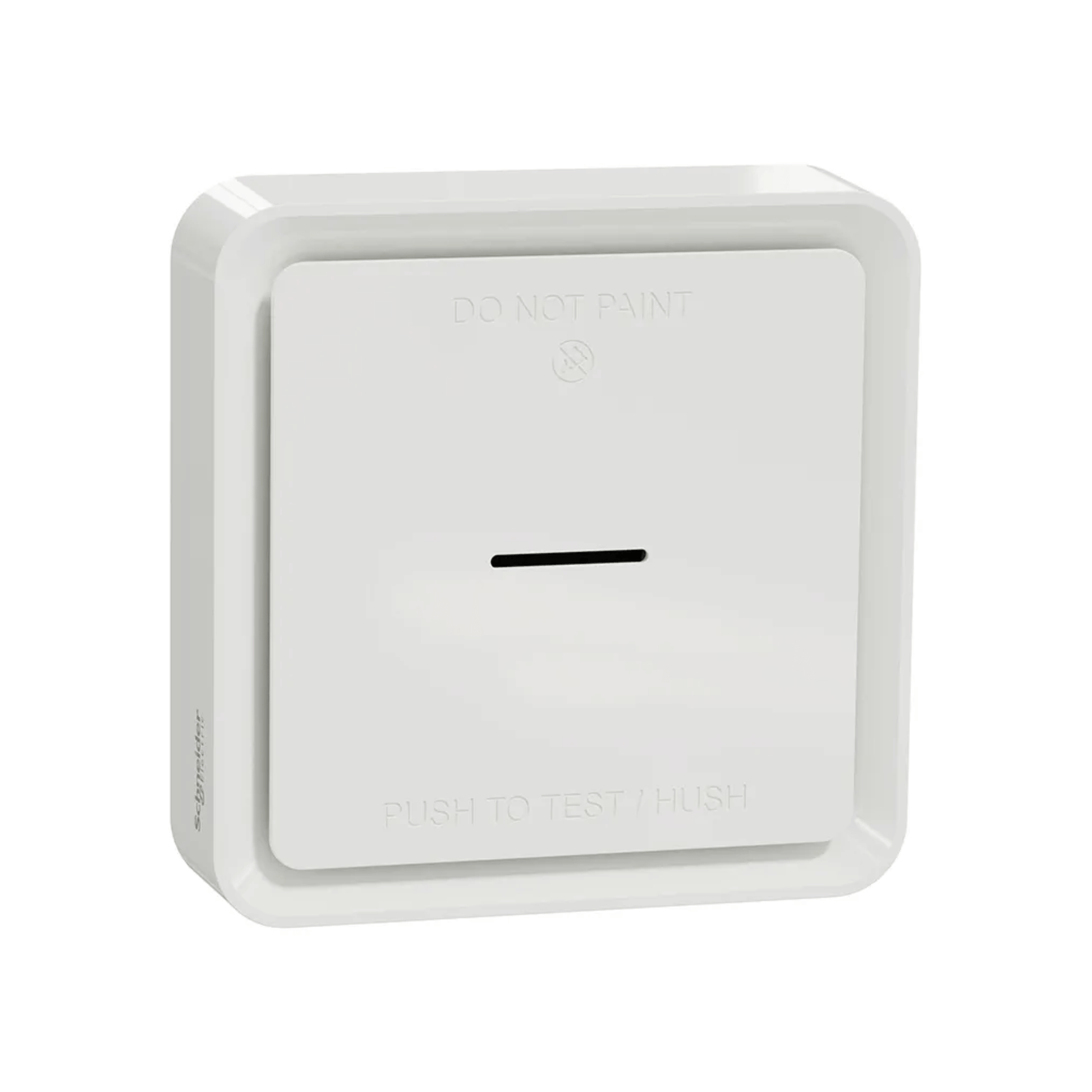

Drayton Wiser Smoke Alarm - Battery - CCT599002

Wiser 2nd Generation Datasheet

Battery powered smoke alarm which can be linked with up to 40 other Wiser Smoke Alarms. For smartphone notifications of smoke or heat detection and in-app status monitoring.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Receive alert notifications via Wiser Home app when smoke or heat is detected
• Battery powered, no wiring necessary
• Complies with EN14604:2005
• BS 5839 Battery operated Smoke Alarm - grade F1
• Requires any Wiser 2nd Generation Hub for smart features

Specifications

• Part number: CCT599002
• Height: 89mm
• Width: 89mm
• Depth: 33.5mm
• Power supply: Lithium 3V
• Wiring: No wiring required
• Interfaces: Push Button/LED
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 5% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4 RF 868MHz
• Radio signal range: Max 40m in free air
• Mounting: Screw fixing
• Max. radio frequency power transmitted: 2.5mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 14604:2005+AC:2008 Vfdb 14-01: 2010 NF 292 – part 2: rev 9
• Pack contents: 1 x Wiser Smoke Alarm - Battery; 1 x Mounting base; 2 x Screws (M3.5 x 20mm); 2 x Wall plugs; 1 x Primary label; 1 x Installation instructions; 1 x Dust cover
