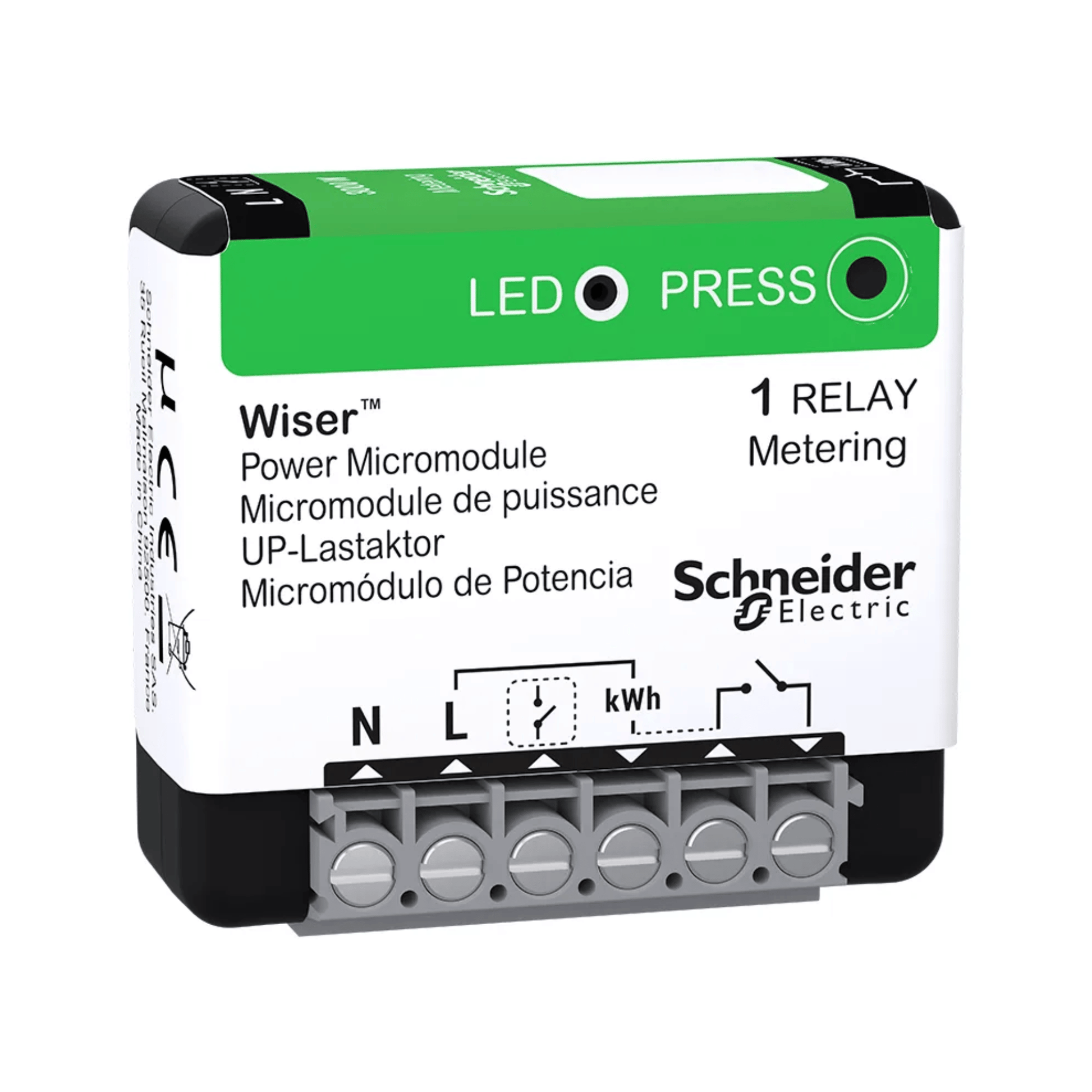

Drayton Wiser Power Micro Module - CCTFR6730
Drayton Wiser Power Micro Module - CCTFR6730
- Lead Time: 5-7 Working Days*
Regular price
£45.40
Regular price
Sale price
£45.40
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Wiser 2nd Generation Datasheet
Enable smart control, scheduling, automation and energy monitoring of resistive loads up 3000W 14A via the Wiser Home app, or with voice control via smart speakers.
- Control and schedule electrical loads up to 3000W resistive via the Wiser Home app
- Example use: control of immersion heater
- Wiser Home App records and displays power consumption
- Activate Away Mode to save energy
- Works with Amazon Alexa, Google Assistant and IFTTT
- Requires any Wiser 2nd Generation Hub
Specifications
- Part number: CCTFR6730
- Height: 40mm
- Width: 44mm
- Depth: 16.9mm
- Power supply: 230V a.c. ±10% 50Hz
- Switch rating: 14A
- Wiring: Fixed wiring only, to comply with current IET regulations (BS7671)
- Interfaces: Push Button/LED
- Operating temperature: 0°C to 35°C
- Storage temperature: -20°C to 60 °C
- Ingress protection (IP rating): IP20
- Ambient humidity (non-condensing): 25% to 90%
- Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
- Radio signal range: Max 30m in free air
- Mounting: Backbox
- Max. radio frequency power transmitted: 2.5mW
- Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
- Applied standards: EN60669-1:2018, EN60669-1:2018, EN60669-2-1:2004 +A1:2009 +A12:2010, EN300328 v2.2.2 2019-07, EN301489- 01 V2.2.3 2019-11, EN301489-03 V2.1.1 2019-03, EN62479:2010, Zigbee 3.0 Certified
- Pack contents: 1 x Wiser Power Micro Module; 1 x Installation instructions
