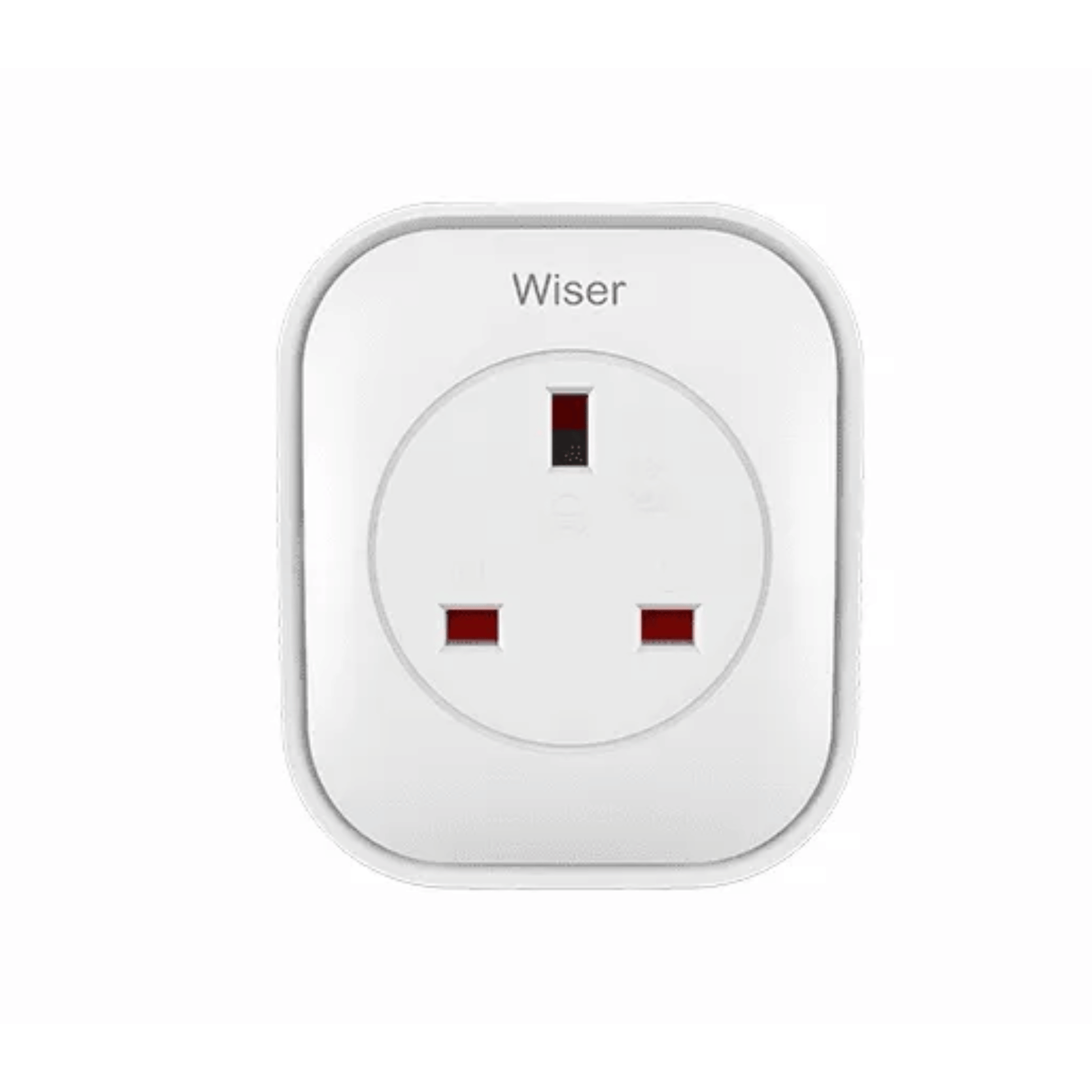

Drayton Wiser Plug - WB704H1A0902

Wiser 2nd Generation Datasheet

By using our smart plug, control and set schedules for electrical appliances from your smartphone via the Wiser app, or by using voice activation with the Google Assistant and Amazon Alexa. The built-in range extender also boosts connectivity to Wiser devices further away from the Heat HubR

• Quick commissioning and control via the Wiser app
• Set schedules (up to 8 events per day) and sync with Wiser's Away Mode
• Requires Wiser Heat HubR
• Compatible with Amazon Alexa, the Google Assistant and IFTTT
• Boosts signal to all Wiser devices
• Add up to 10 plugs per system

Specifications

• Dimensions: 79.6mm(h), 67.9mm(w), 62.8mm(d)
• Power supply: 230V a.c. ±10% 50Hz
• Wiring: No wiring required
• Interfaces: User: Push Button/ LED; I/O: Mains Relay
• Operating Temperature: 0°C to 40°C
• Ingress protection: IP20
• Ambient humidity (non-condensing): 5% to 85%
• Ball pressure test: 125°C
• Pollution degree: 2
• Rated impulse voltage: 2.5kV
• Radio technology/frequency: 2.4GHz (Bi-directional, Mesh)
• Radio signal range: ≤100m (in open air)
• Mounting: Std. UK 3 pin socket
• Maximum radio frequency power transmitted: +8dBm (6.3mW)
• Software version: V2.0
• Relevant directives: (RED)2014/53/EU RoHS 2011/65/EU
• Applied standards: EN 60950-1, EN 62479, EN 300 328, EN 301 489-1, EN 301 489-17
