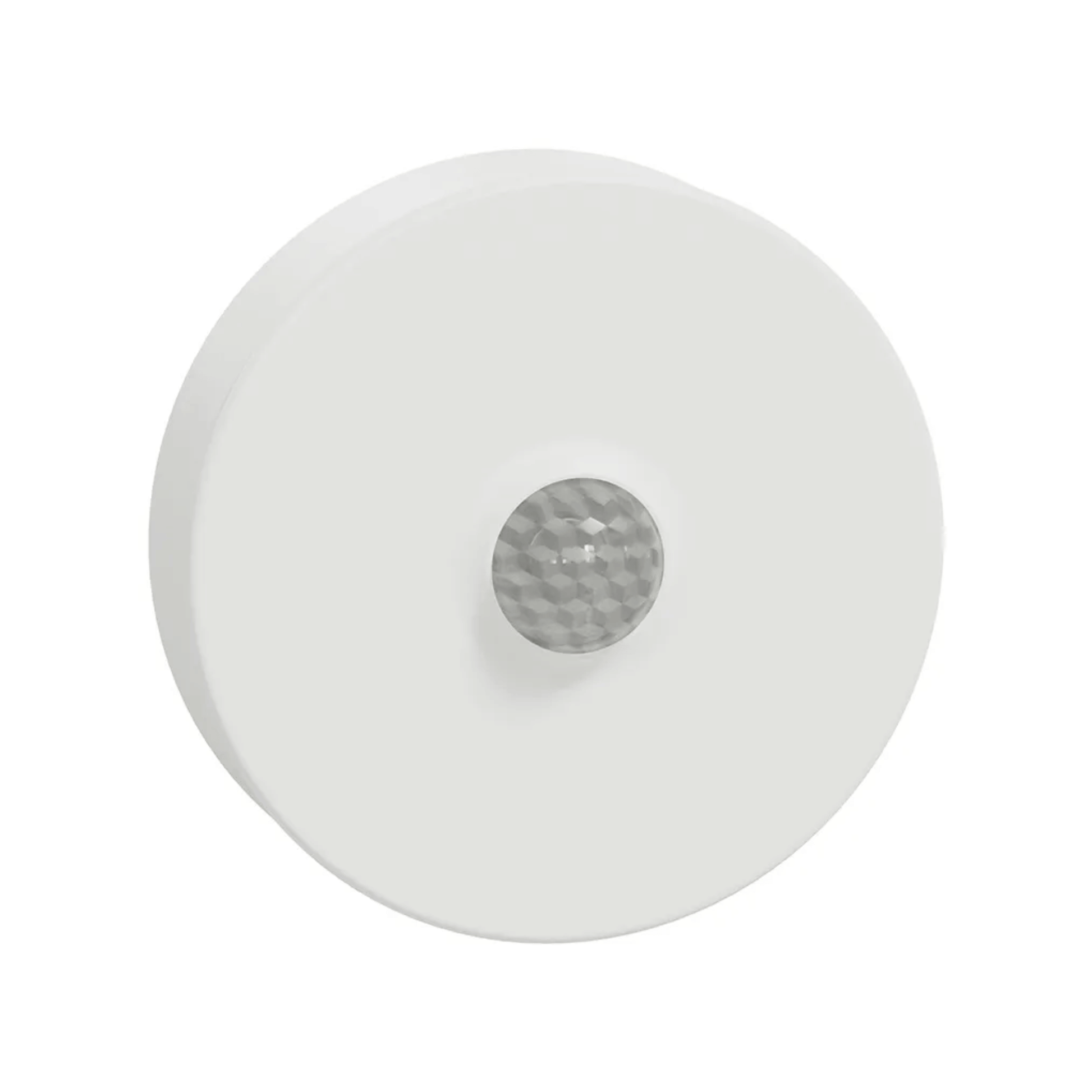

Drayton Wiser Motion Sensor - CCT595012

Wiser 2nd Generation Datasheet

Receive smartphone notifications of motion detection. Detects motion and light levels and can be paired with other Wiser devices, such as the Wiser plug or Wiser LED Dimmer, to turn on lights when motion is detected.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Detect motion and receive alerts via the Wiser Home app.
• Create automations based on motion and light level, e.g. turn on lamp if motion detected
• Easy installation with screws or tape
• Battery powered
• Provides a 360° detection angle with a range of 4m diameter when ceiling mounted: 90° - 110° detection angle with a range of 5m radius when wall mounted
• Requires any Wiser 2nd Generation Hub

Specifications

• Part number: CCT595012
• Height: 70mm
• Width: 70mm
• Depth: 26.6mm
• Power supply: Battery 2 x 1.5V / LR03 AAA
• Wiring: No wiring required
• Interfaces: Push Button/LED
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 40m in free air
• Mounting: Screw or supplied adhesive strip
• Max. radio frequency power transmitted: 2.5mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 60669-1 & 60669-2-5; EN 60730-1 & 60730-2-9 & 60730-2-13; EN 301 489
• Pack contents: 1 x Motion sensor; 1 x Base plate; 1 x Adhesive pad; 4 x Screws (2 x ST2 x 5mm, 2 x ST3 x 22 mm); 2 x Wall plugs; 1 x Installation instructions
