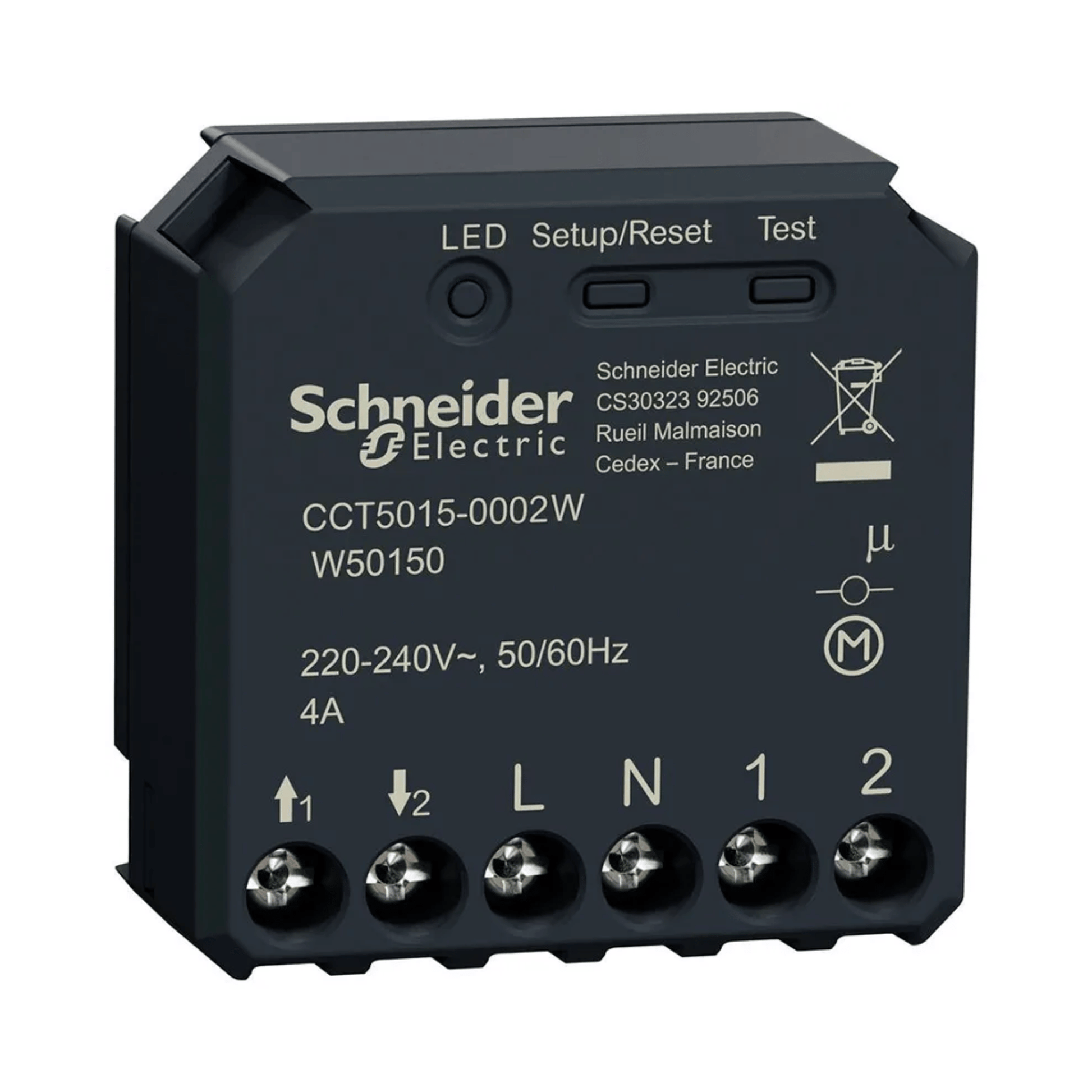

Drayton Wiser Micro Module Shades Control - CCT5015-0002W

Wiser 2nd Generation Datasheet

Enables smart control, scheduling and automation of motorised blinds and curtains via the Wiser Home app and voice control via smart speakers. For smart curtain, blind, shutter or awning control. Momentary retractive switch required for in-room control

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Control and schedule blinds, shutters, curtains or awnings via the Wiser Home app
• Create automations or moments
• Works with Amazon Alexa, the Google Home and IFTTT
• Requires any Wiser 2nd Generation Hub

Specifications

• Part number: CCT5015-0002W
• Height: 43mm
• Width: 43mm
• Depth: 22mm
• Power supply: 230V a.c. ±5% 50Hz
• Switch rating: 4A
• Wiring: Fixed wiring only, to comply with current IET regulations (BS7671)
• Interfaces: Push Button/LED
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 100m in free air
• Mounting: Backbox
• Max. radio frequency power transmitted: < 10mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 62479:2010, EN 50428:2005+A1: 2007+A2: 2009, EN IEC60669-2-1: 2022+A11: 2022, EMC (Article 3.1 a of RED)- EN 301 489-17 V3.2.4: 09/2020, EN 50428: 2005+A1: 2007+A2: 2009, EN IEC60669-2-1: 2022+A11: 2022, EN 300 328 V2.2.2: 07/2019, Zigbee 3.0 Certified
• Pack contents: 1 x Wiser Micro Module Shades Control; 1 x Installation instructions
