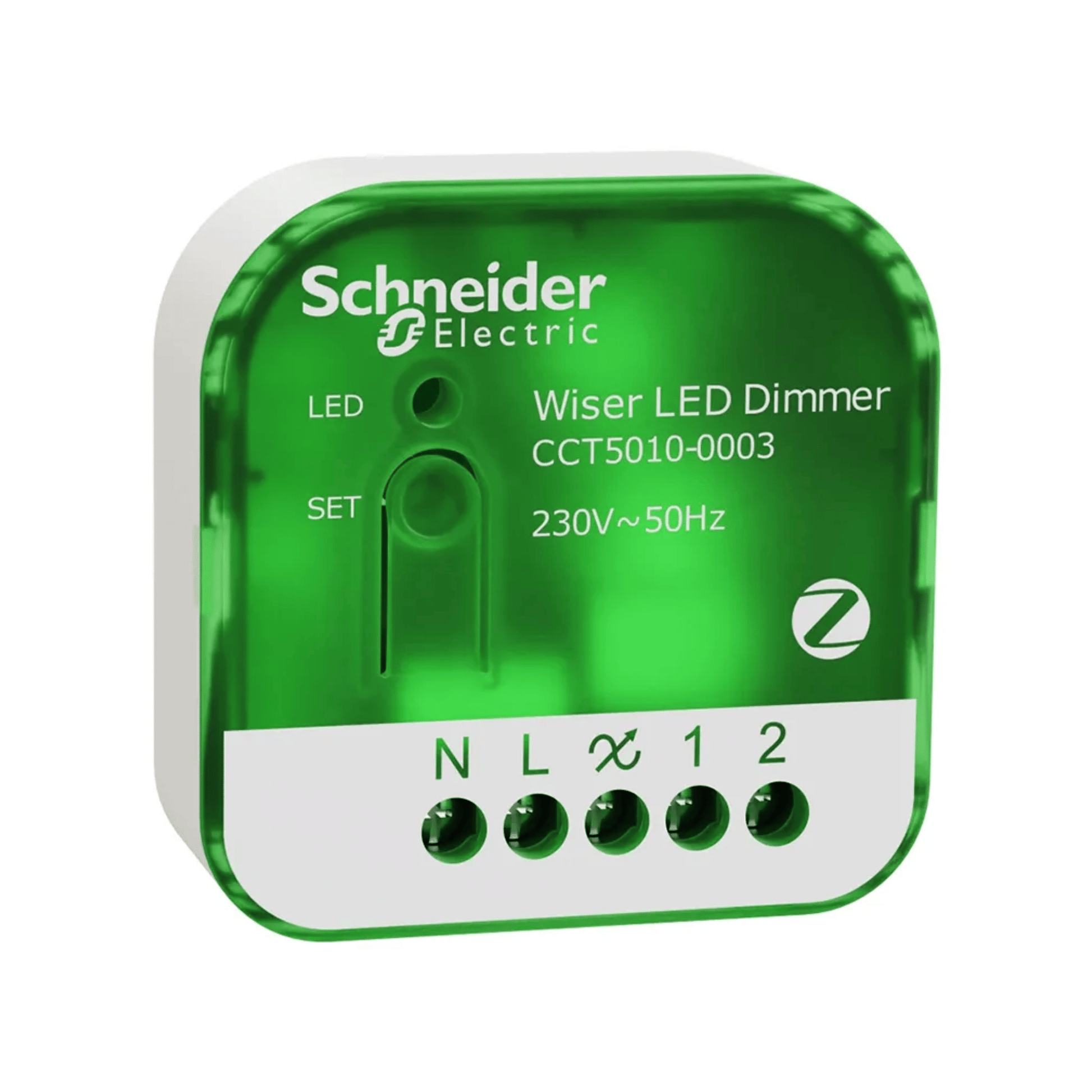

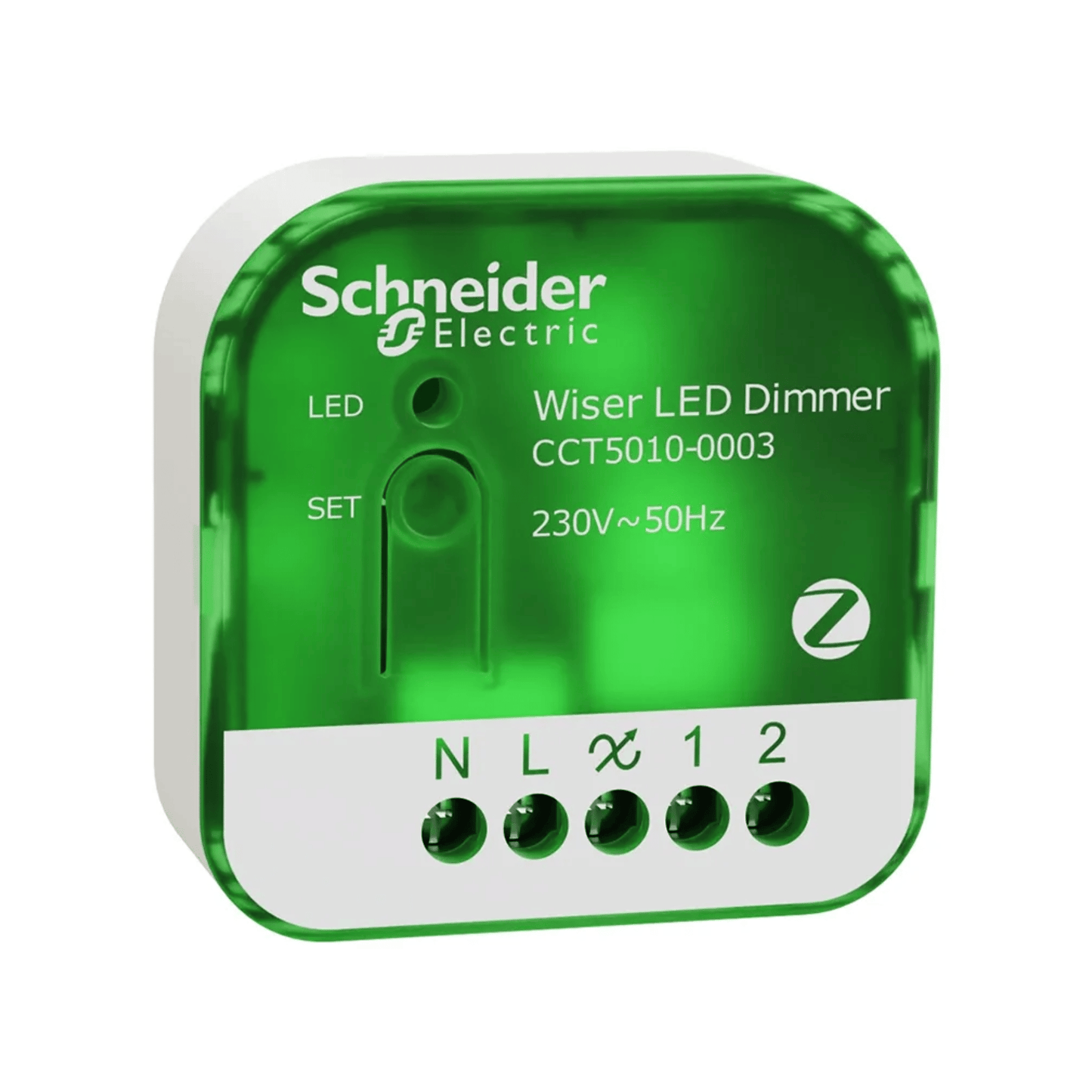

Drayton Wiser Micro Module Dimmer - CCT5010-0003

Wiser 2nd Generation Datasheet

Enables smart control, automation and scheduling of dimmable LED lighting via the Wiser Home app and voice control via smart speakers. Install with a momentary switch for in-room control.

Connect to any Wiser 2nd Generation Hub.

Not compatible with Wiser 1st Generation HubR

• Enable smart Lighting control via the Wiser Home app
• Compatible with dimmable LEDs
• Create automations or moments
• Works without a neutral connection
• Works with Amazon Alexa, the Google Home and IFTTT
• Requires any Wiser 2nd Generation Hub

Specifications

• Part number: CCT5010-0003
• Height: 45mm
• Width: 45mm
• Depth: 18.4mm
• Power supply: 230V a.c. ±5% 50Hz
• Wiring: Fixed wiring only, to comply with current IET regulations (BS7671)
• Interfaces: Push Button/LED
• Operating temperature: -5°C to 35°C
• Ingress protection (IP rating): IP20
• Ambient humidity (non-condensing): 10% to 95%
• Radio technology / frequency: Zigbee: 2.4 GHz, IEEE802.15.4
• Radio signal range: Max 100m in free air
• Mounting: Backbox
• Max. radio frequency power transmitted: < 10mW
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN 62479:2010, EN 50428:2005+A1: 2007+A2: 2009, EN IEC60669-2-1: 2022+A11: 2022, EMC (Article 3.1 a of RED)- EN 301 489-17 V3.2.4: 09/2020, EN 50428: 2005+A1: 2007+A2: 2009, EN IEC60669-2-1: 2022+A11: 2022, EN 300 328 V2.2.2: 07/2019, Zigbee 3.0 Certified
• Pack contents: 1 x Wiser Micro Module Dimmer; 1 x Installation instructions
