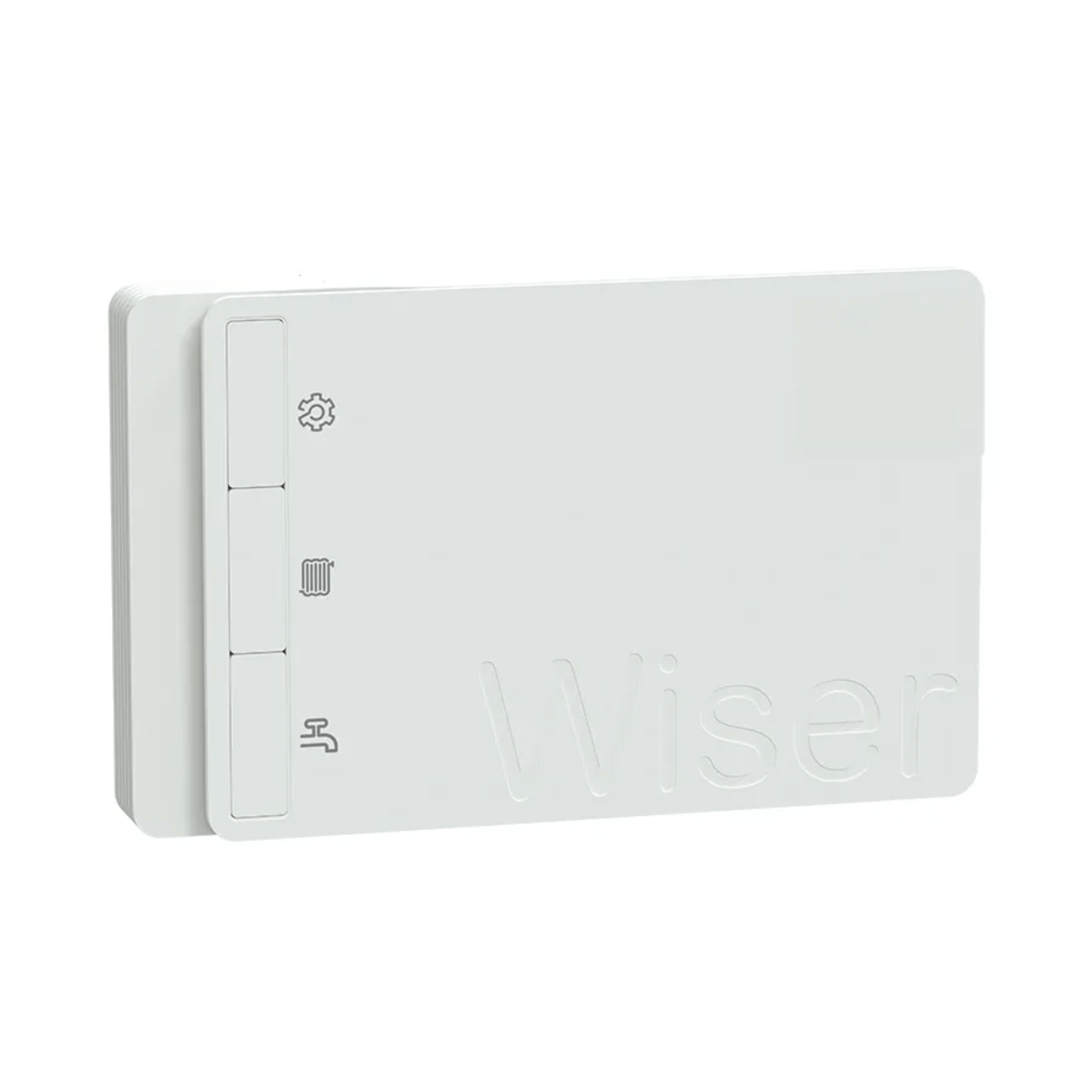

Drayton Wiser 3 Channel 2nd Generation HubR - CCTFR6313G2D

Wiser 2nd Generation Datasheet

The 3-Channel HubR provides smart control of 2 heating zones and hot water, via relay switching. It can also interface with heat pumps to control heating according to heat demand. Connect Wiser radiator and room thermostats for independent room scheduling and smart control via the Wiser Home app and smart speakers. Connect Wiser Smart Home devices for home automation and security.

• Control 2 channels of central heating (requires Wiser Room Thermostat or Wiser Temperature/Humidity Sensor) and smart control via the Wiser Home app
• Optional control of hot water
• Works with all of Wiser's smart room thermostats and smart radiator thermostats
• Expand the system with a range of Wiser smart home devices, from radiator thermostats to window sensors
• Eco, Comfort and Away modes
• Relay connections
• Boiler Plus compliant
• Connects to 2.4GHz Wi-Fi
• Separate devices network with mesh technology
• Works with Amazon Alexa, Google Assistant, and IFTTT

Specifications

• Part number: CCTFR6313G2D
• Height: 94mm
• Width: 150.8mm
• Depth: 30.3mm
• Power supply: 230V a.c. ±10% 50Hz
• Switch rating: 2(1)A 230V a.c. each switch
• Wiring: Fixed wiring only, to comply with current IET regulations (BS7671)
• Interfaces: User: Push Button/ LED; I/O: Mains Relays (1-3), Digital Boiler Interface
• Operating temperature: 0°C to 45°C
• Storage temperature: -20 °C to 65 °C
• Ingress protection (IP rating): IP30
• Ambient humidity (non-condensing): 25% to 90%
• Setpoint range: 5°C to 30°C
• Control accuracy: <0.6°C at 4°C/ hour (with Room Thermostat) <0.8°C at 4°C/ hour (with Radiator Thermostat)
• Timing resolution: 1 minute
• Temperature resolution: 0.5°C
• Ball pressure test: 92°C
• Pollution degree: 2
• Software class: A
• Without mains power: Display: LEDs off; Time: always kept; Program times: always preserved
• Radio technology / frequency: Wi-Fi: 2.4 GHz, IEEE802.11 b/g/n Zigbee: 2.4 GHz, IEEE802.15.4
• Mounting: Wall plate
• Max. radio frequency power transmitted: Wi-Fi: +17dBm (16 mW) Zigbee: +12dBm (50 mW)
• Relevant directives: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
• Applied standards: EN IEC 63000; EN IEC 62311; EN 60730-2-7; EN 301 489-17; EN 60730-2-7; EN 300 328;
• Pack contents: 1 x 3 Channel 2nd Generation HubR; 1 x Wall plate (mounting and wiring); 1 x Installation manual
