Drayton TS Ultra+ Thermal Actuator - 24V - 0484 1105 1017
Drayton TS Ultra+ Thermal Actuator - 24V - 0484 1105 1017
- Lead Time: 1-5 Working Days"
Regular price
£14.33
Regular price
Sale price
£14.33
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

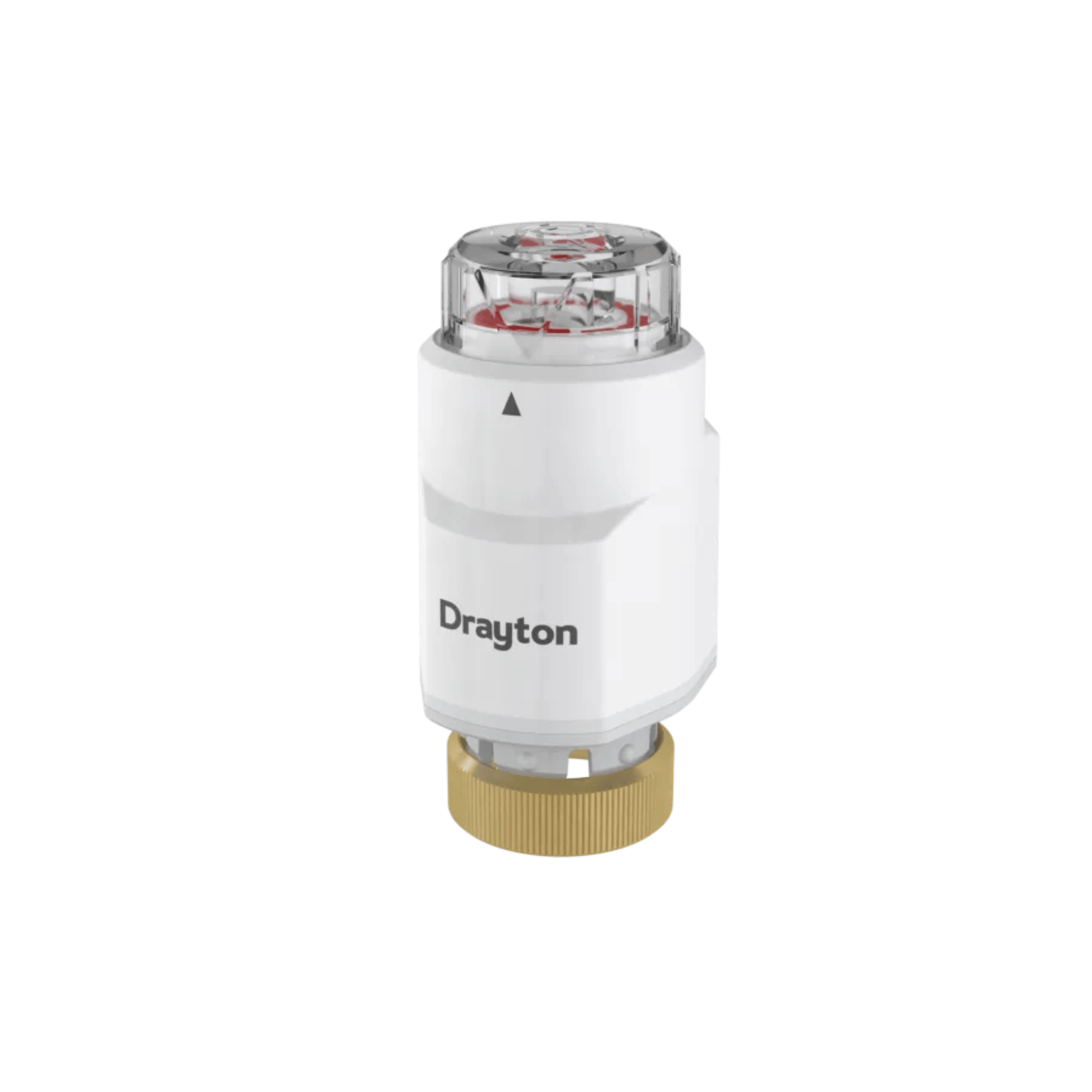

The TS Ultra+ Thermal Actuator is designed to fit on compact manifolds with improved water ingress protection
- Available in 230V and 24V options
- Water and dust resistant to IP55 rating
- Standard connection (M30 x 1.5mm) to manifolds
- Stylish and compact
- 360° valve status indication
- Closing force 120N
- Fast response
- Plug-in cable
- Manual feature
Specifications
- Part number: 230V TS Ultra+: 0481 1105 1017 - 24V TS Ultra+: 0482 1105 1017
- Ingress protection: IP55
- Closing force: 120N
- Supply voltage: 230V variant: 230V - 50Hz - 24V variant: 24V AC/DC
- Power consumption: 2.5W
- Actuator type: Open / closed
- Valve type: Normally closed
- Cable: Plug-in cable, 2 x 0.75mm2, 100cm long, free cable ends with end sleeves
- Stroke: 5.5mm
- Dimensions: 82 x 39 x 54mm (h x w x d)
- Storage temperature: -20°C to 60°
- Operating temperature: 0°C to 60°
