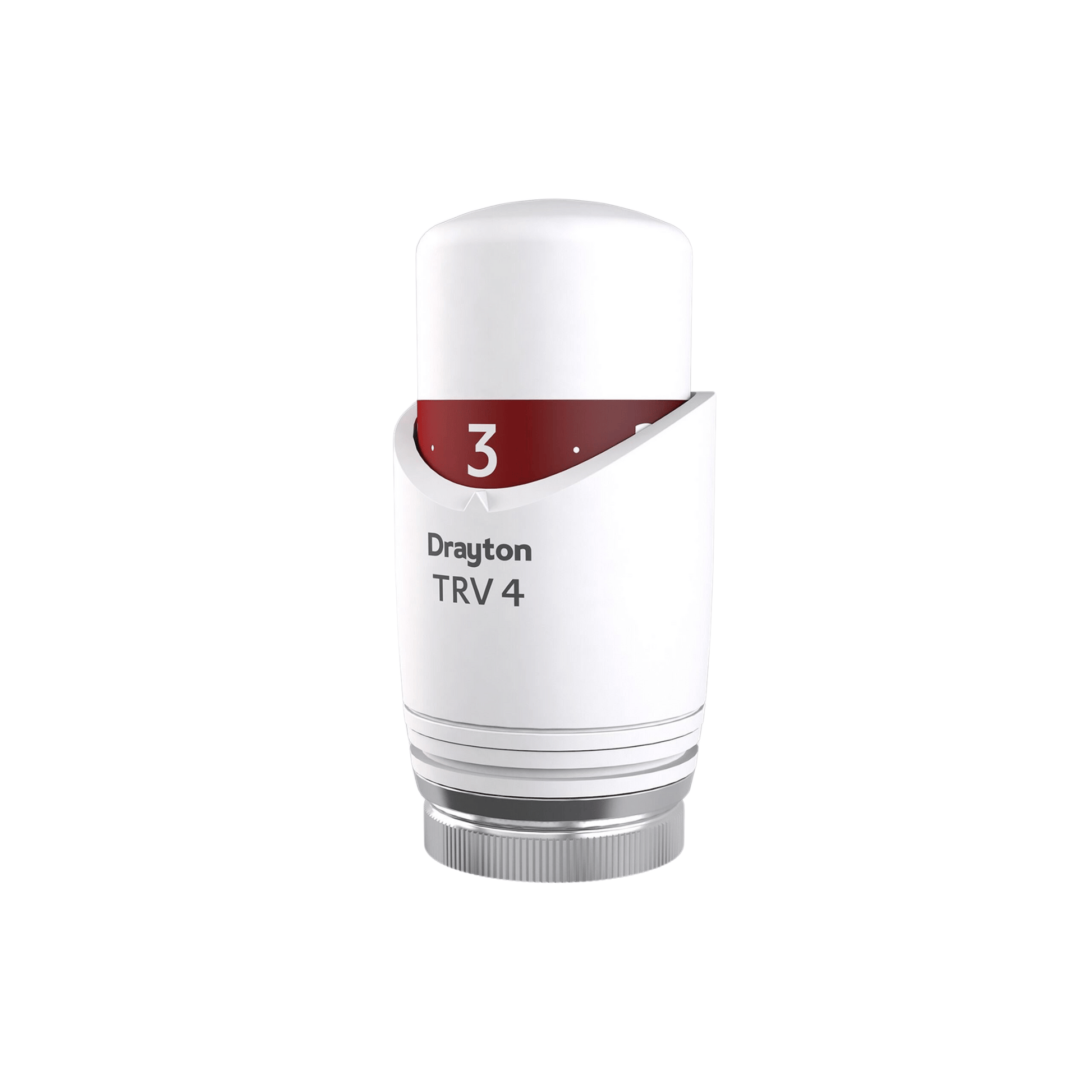

Drayton TRV4 White Integral Head - White - 07 07 007
Drayton TRV4 White Integral Head - White - 07 07 007
- Lead Time: 1-5 Working Days"
Regular price
£17.97
Regular price
Sale price
£17.97
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Drayton TRV4 Thermostatic Radiator Valves Datasheet
Head Only
TRV4 White offers a bright, neutral finish suitable for any application. The TRV4 White is 'A' rated for efficiency by the European valve manufacturers association making it one of the most energy efficient TRVs available.
The TRV4 White range includes angled and straight valves as well as lockshield and pushfit packs to suit most domestic and commercial heating systems.
- Contemporary slim-line design
- Click feedback
- 4 colour variants
- Non-stick internals
- Double gland seal
- 15mm angle or straight valve
- Reverse flow
- Accurate liquid sensor
- Balance system via the TRV with our balancing key
Specifications
- Part number: TRV4 White Head Only: 07 07 007 - 15mm Angle valve: 07 07 015 - 15mm straight valve: 07 07 115 - 15mm angle valve and lockshield: 07 07 260
- Energy efficiency rating: Class I
- Temperature setting range: approx. 10°C - 30°C
- Temperature setting numbers: 1 to 5 then MAX
- Max. flow temperature: 110°C
- Max. sensor temperature: 50°C
- Frost protection: Below 8°C
- Sensitivity: 0.22mm/°C
- Control accuracy: 0.6
- Hysteresis: 0.4K
- Differential pressure influence: 0.15K
- Water temperature influence: 0.8K
- Response time: 20 minutes
- Colour: White
