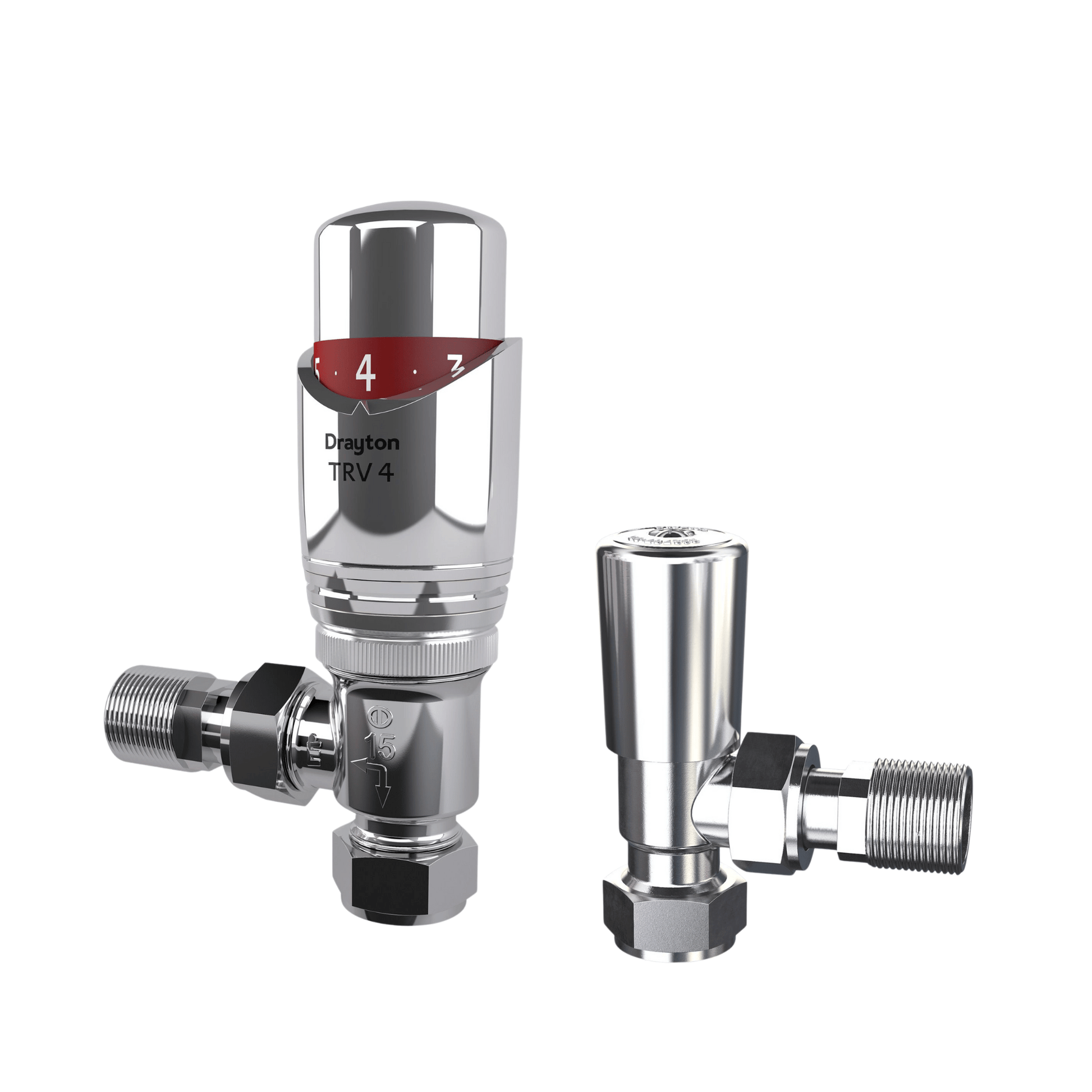

Drayton TRV4 Chrome & Lockshield - Angle - 15mm - Chrome - 07 05 174

Drayton TRV4 Thermostatic Radiator Valves Datasheet

Head Only

With wipe clean surfaces and modern design the TRV4 Chrome is an ideal radiator valve for bathroom with heated towel rails, with an elegant chrome finish. Select from compression connections 15mm, 10mm or 8mm, or push-fit connection to plastic and copper pipe.

The Drayton TRV4 range also features a unique liquid-filled interior providing superior performance. The liquid sensor provides optimum sensitivity for fast reaction to temperature changes, ensuring that heating requirements are adjusted according to circumstances quickly and effectively.

• Contemporary slim-line design
• Click feedback
• 4 colour variants
• Non-stick internals
• Double gland seal
• 15mm angle or straight valve
• Reverse flow
• Accurate liquid sensor
• Balance system via the TRV with our balancing key

Specifications

• Part number: With 15mm angled valve: 07 05 150C - With 15mm straight valve: 07 05 151C - With 15mm angled valve and chrome lockshield: 07 05 174 - With 15mm straight valve and chrome lockshield: 07 05 175 - Sensing head only: 07 03 013
• Energy efficiency rating: Class I
• Temperature setting range: approx. 10°C - 30°C
• Temperature setting numbers: 1 to 5 then MAX
• Max. flow temperature: 110°C
• Max. sensor temperature: 50°C
• Frost protection: Below 8°C
• Sensitivity: 0.22mm/°C
• Control accuracy: 0.6
• Hysteresis: 0.4K
• Differential pressure influence: 0.15K
• Water temperature influence: 0.8K
• Response time: 20 minutes
• Colour: Chrome
