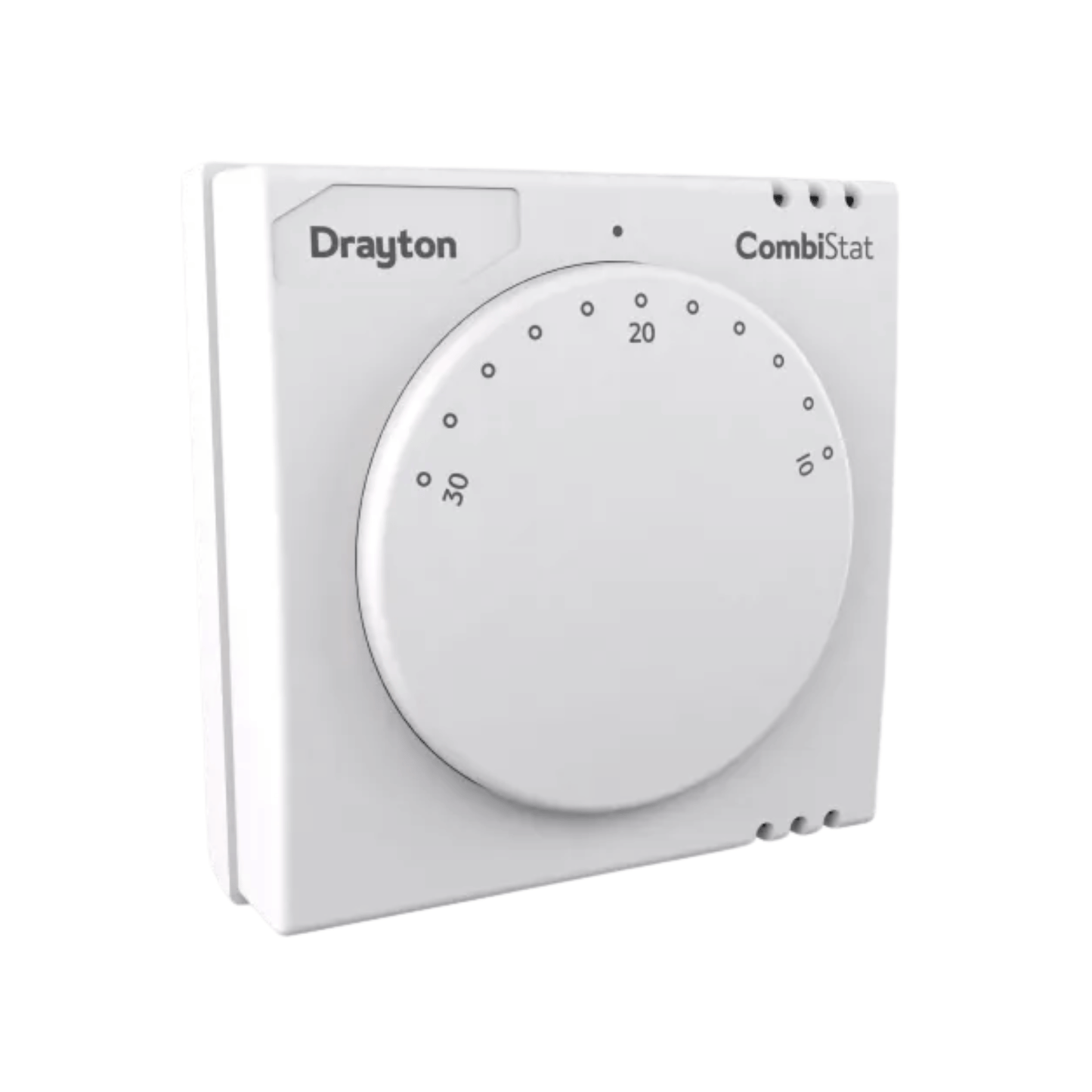

Drayton RTS8 CombiStat Room Thermostat - 24028

Drayton RTS & CombiStat Room Thermostat Range Datasheet

Providing accurate temperature control, suitable for all 2 or 3 wire combination / conventional boilers (with current up to 6A)

• Suitable for 2 or 3 wire combination or conventional boilers
• Suitable for 2 or 3 wire retro-fit applications
• Suitable for current loads from 0.1A to 6A
• Range limiting stops
• Surface or conduit box mounting
• Double insulated (no earth required)
• Set point locking

Specifications

• Part number: 24028
• Energy class: I = 1% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-9
• Setting range: 10°C - 30°C
• Control accuracy: 1ºC typical
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 24-230V a.c./d.c. 50Hz fused 3A double insulated (no earth required)
• Mounting: Suitable for surface or conduit box mounting
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Switch type & rating: S.P.D.T 2(1)A 230V a.c. volt free
• Ambient operating temperature: 0ºC to 40ºC
• Ambient storage temperature: -20ºC to 55ºC
• Ambient operating humidity (non condensing): 25% to 90%
• Ambient storage humidity: 15% - 95%
