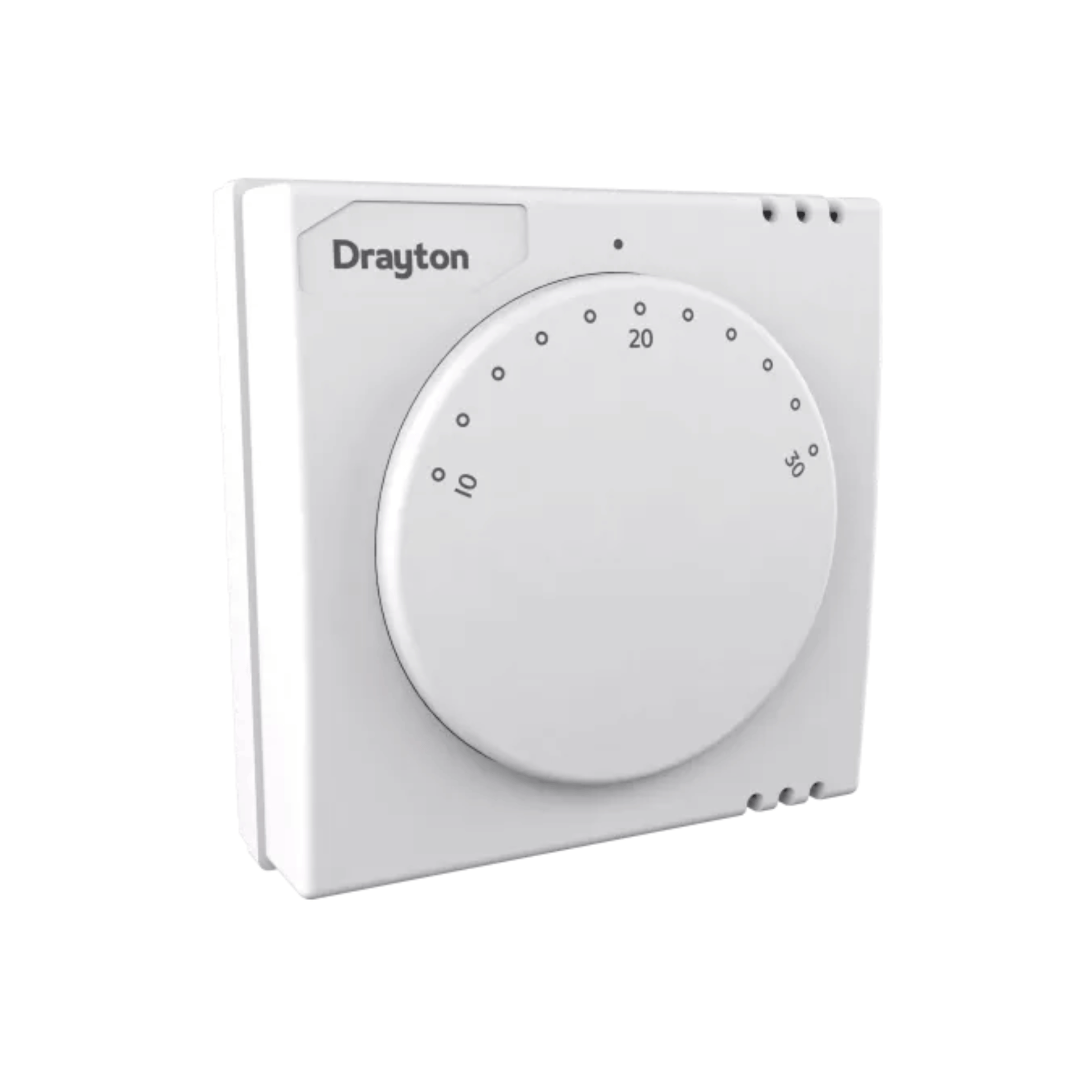

Drayton RTS1 Standard Room Thermostat - 24001

Drayton RTS & CombiStat Room Thermostat Range Datasheet

Standard room thermostat utilising electronic sensing to provide accurate temperature control.

• 10°C to 30°C range
• S.P.S.T.2(1)A 230V AC
• Double insulated (no earth required)
• Range limiting stops
• Surface or conduit box mounting
• Set point locking

Specifications

• Part number: 24001
• Energy class: IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-9
• Setting range: 10°C - 30°C
• Control accuracy: <0.6ºC at 4º/hour
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 24-230V a.c./d.c. 50Hz fused 3A double insulated (no earth required)
• Mounting: Suitable for surface or conduit box mounting
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Switch type & rating: S.P.S.T 2(1)A 230V a.c.
• Ambient operating temperature: 0ºC to 40ºC
• Ambient storage temperature: -20°C to 50°C
• Ambient operating humidity (non condensing): 25 - 90%
• Ambient storage humidity: 15 - 95%
