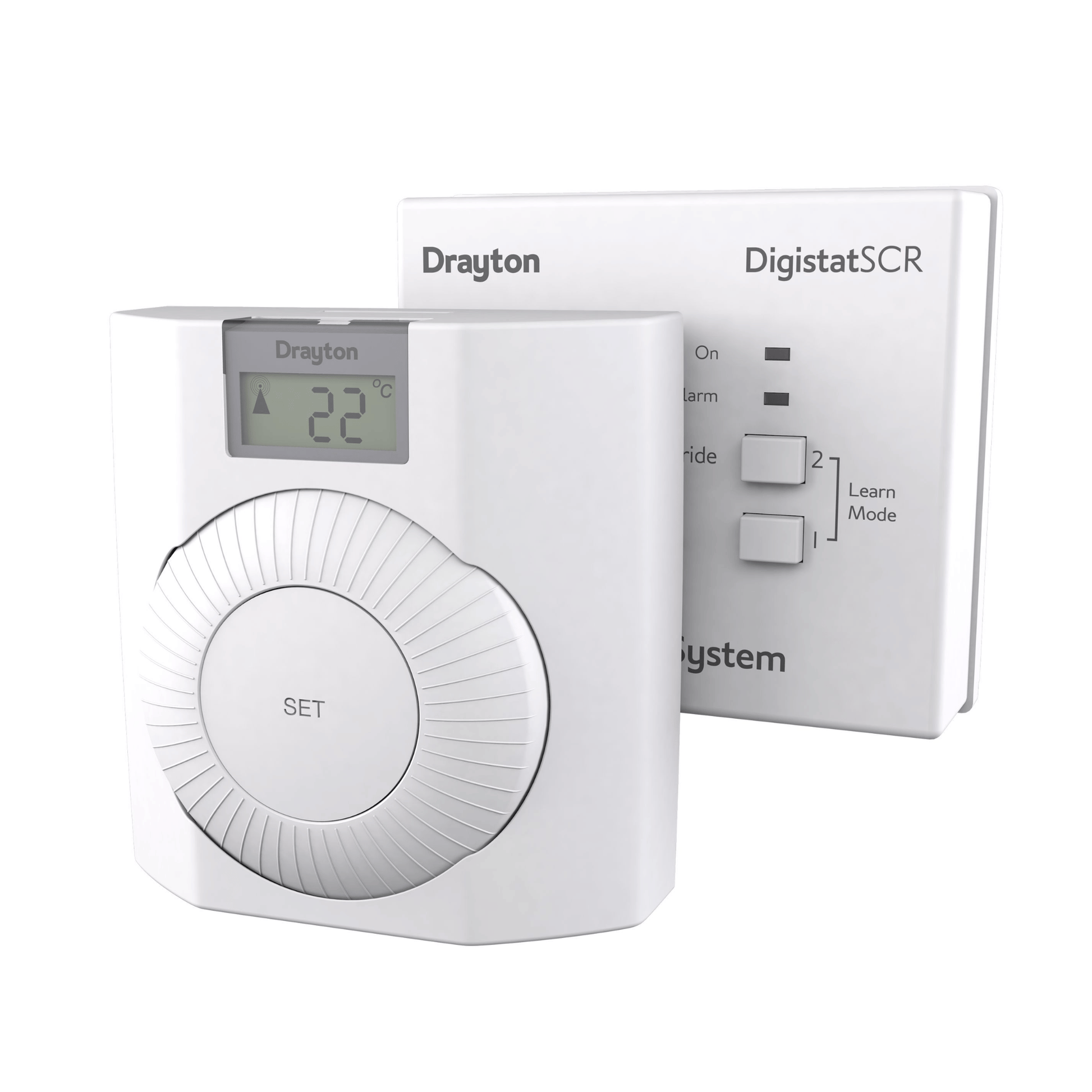

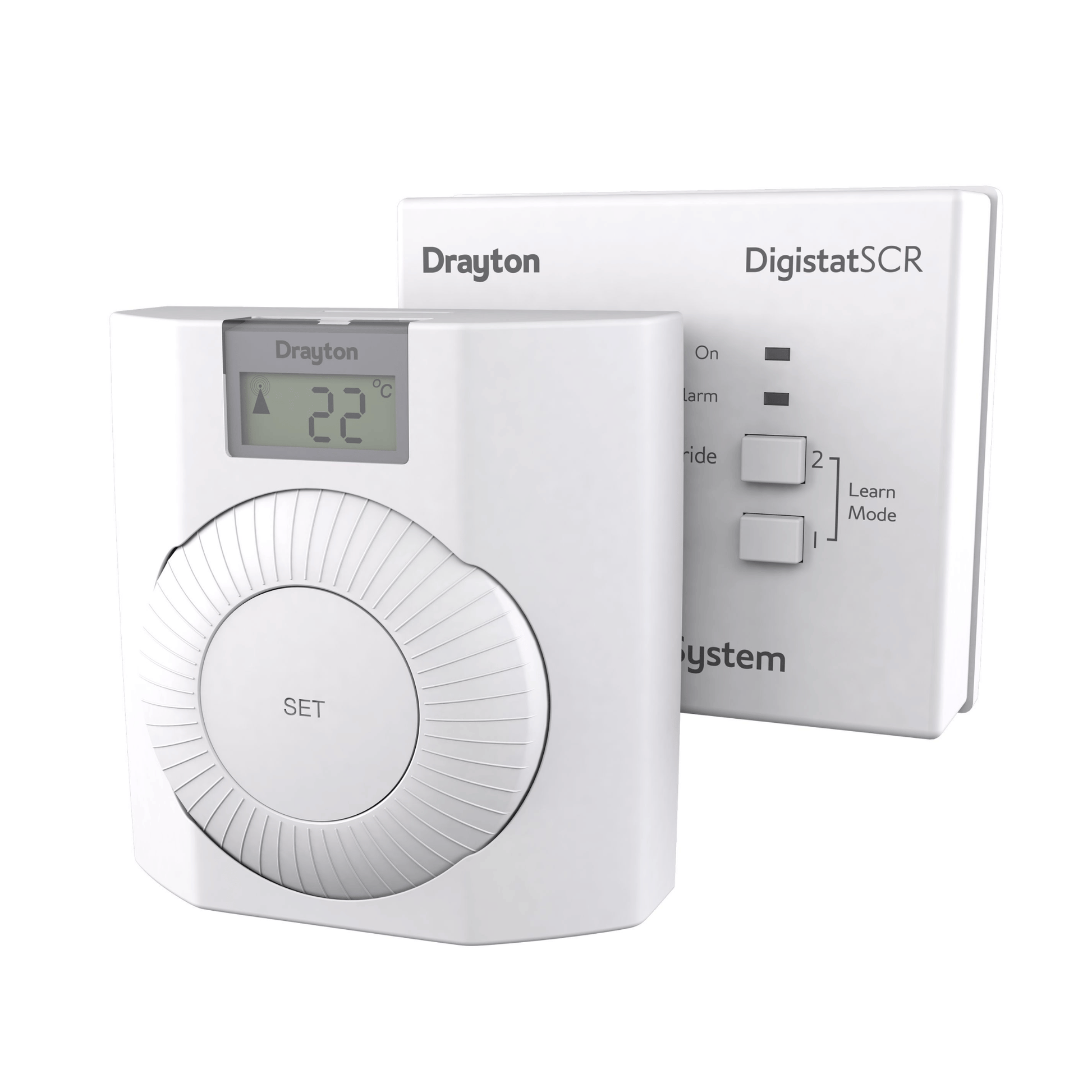

Drayton RF601N Digistat+RF Room Thermostat & SCR - RF601N

Drayton Digistat+ & Digistat+ RF Room Thermostat Range Datasheet

Drayton’s stylish Digistat+ RF battery powered thermostat with tactile, audible & visual feedback. Featuring a familiar dial control with a digital display to show that the temperature has been set accurately every time.

• Battery powered
• Easy to install & use
• Set back/comfort feature
• Typical operating range 30m
• Min/max temperature setting (tamper-proof when min/max are set the same)
• Tactile dial adjustment with audible feedback
• Easy-to-read digital display

Specifications

• Part number: Digistat+RF & SCR: RF601N; Digistat+ RF thermostat (spare only): 31003N; SCR (spare only): 22149
• Energy Class (ErP rating): IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Relevant EC directives: 2014/53/EU Radio Equipment Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 | EN 300 220-2; EN 301 489-3
• Setting range: 5°C to 30°C
• Control accuracy: +0.5ºC @ 20ºC
• Temperature resolution: 1°C
• Radio frequency: 433 MHz
• Radio signal range: 30m typically. The range may be affected by the composition / density and number of walls between the thermostat and receiver
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: Digistat+ RF: 2 X 1.5V IEC LR6(AA) alkaline batteries; SCR (receiver): 230V a.c. 50Hz
• Battery life: Digistat+RF: approx. 2 years
• Mounting: Digistat+ RF: Suitable for surface or conduit box mounting; SCR (receiver): Industry standard wall plate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671).
• Switch type & rating: SCR (receiver): SPDT (volt free) 2(1)A 230V a.c. or 24V a.c./d.c
• Ambient operating temperature: 0ºC to 40ºC
• Ambient storage temperature: –20ºC to 55ºC
• Ambient operating humidity (non condensing): 25% to 90%
• Ambient storage humidity: 15% - 95%
• Software class: A
• Class of housing protection: IP30
