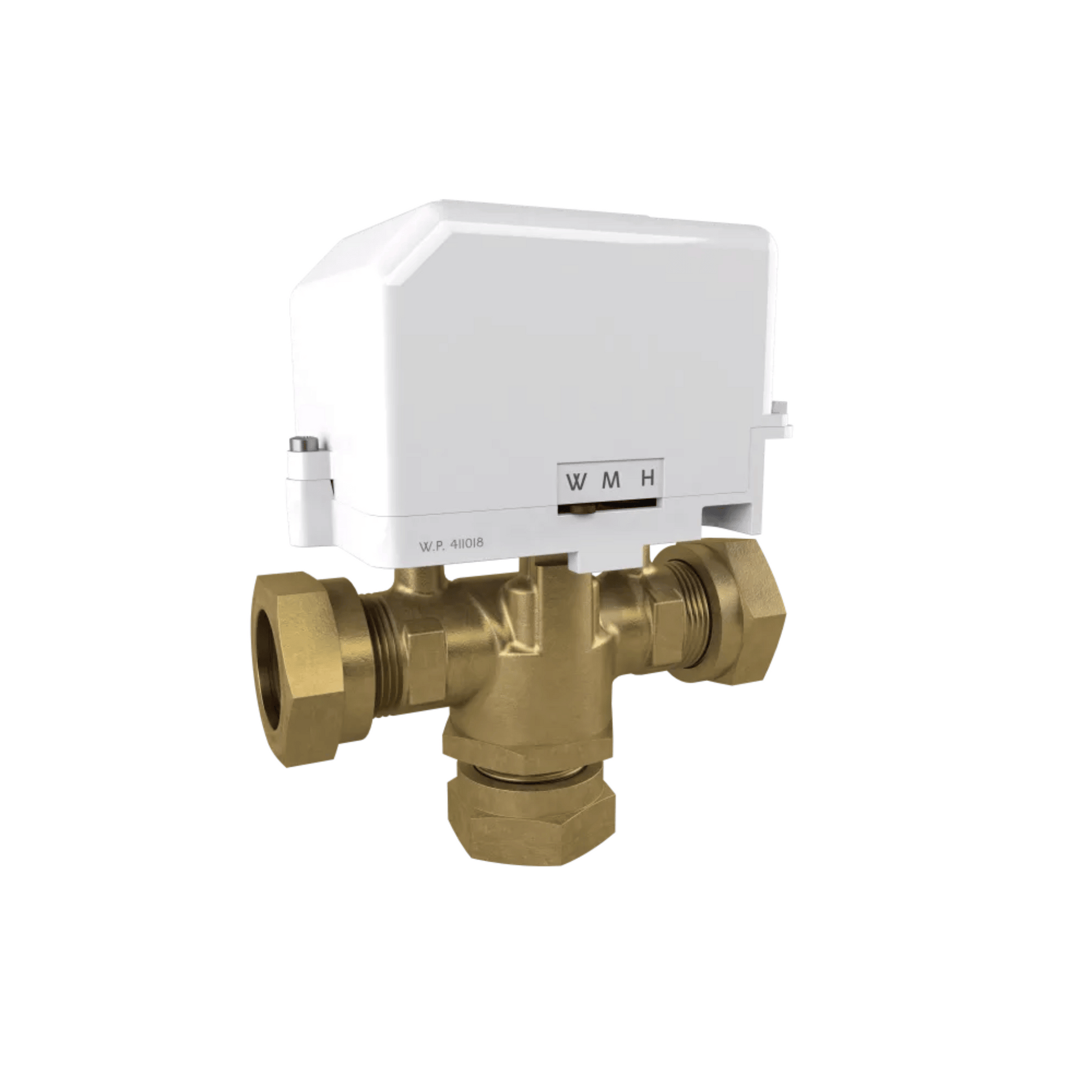

Drayton MA1/779-3 - Mid-Position Valve - 6 Wire SPDT Switch - 28mm - 27206
Drayton MA1/779-3 - Mid-Position Valve - 6 Wire SPDT Switch - 28mm - 27206
- Lead Time: 1-5 Working Days*
Regular price
£136.32
Regular price
Sale price
£136.32
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Drayton mid-position valves are available in 22mm and 28mm. All models feature ""snap-on"" actuators and have simple industry-standard wiring and dimensions.
- 22mm 5 wire SPDT switch
- 28mm 5 wire SPDT switch
- 230V a.c. ≈5 watts
- Replaceable actuators & motors
- 100% tight shut off
- Valve position indicator
- Spring return
Specification
- Part numbers: 22mm Mid-position valve: 27101, 28mm Mid-position valve: 27206
- Standard motor voltage: 230V a.c. ≈5 watts
- Valve operation: Heating, hot water or a combination of both
- Max. static pressure: 8.6 Bar
- Max. differential pressure: 0.7 Bar
- Water temperature: 93°C max., 2°C min.
- Max. ambient temperature: 52°C
- Valve body: Brass forging
- Applied standards: EN60730-1
