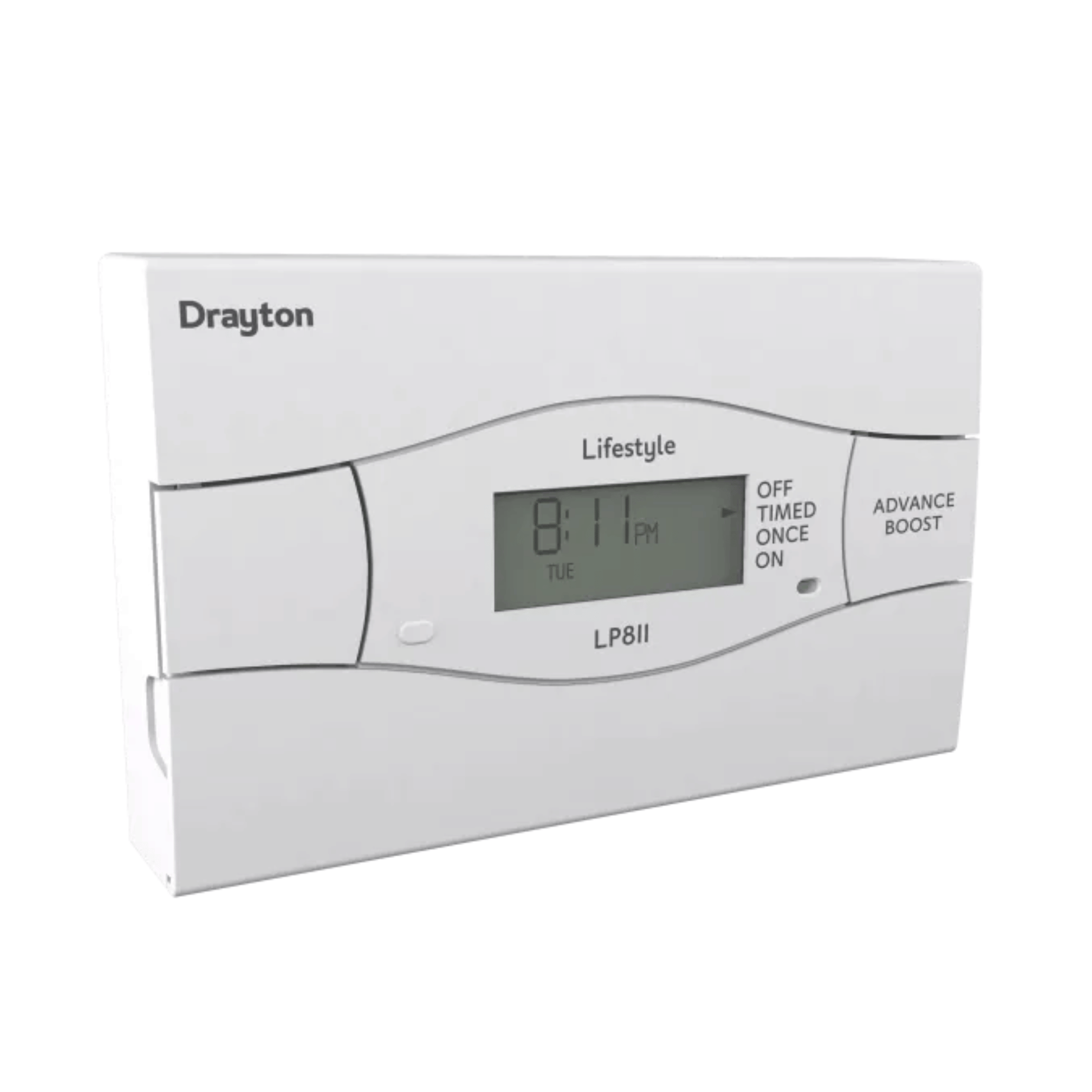

Drayton LP811 Universal Timeswitch - 25463
Drayton LP811 Universal Timeswitch - 25463
- Lead Time: 1-5 Working Days"
Regular price
£54.59
Regular price
Sale price
£54.59
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Allowing simple control or enhanced levels of control for combi boilers, the LP811 allows the home owner to choose from three different schedule types at installation.
- Select 24hr, 5/2 day or 7 day
- Suitable for combination boilers or separate zone control
- Boost & advance
- Volt free contacts
- Automatic summer/winter time change
- Built-in standard programme - 3 on/off settings per day
- Backlit screen
- Industry standard wallplate
Specifications
- Switch rating: 2(1)A 230V a.c. each switch
- Ambient operating temperature: 0°C to +50°C
- Ambient storage temperature: -20°C to 50°C
- Ambient operating humidity (non condensing): 25 - 90%
- Ambient storage humidity: 1 minute
- Ball pressure test: 75ºC
- Pollution degree: 2
- Power supply: 230V a.c. +10% -10% 50Hz
- Mounting: Industry standard wallplate
- Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
- Output: Programmers; 230V a.c. Timeswitches: according to supply to common terminal - volt-free contacts
- Rated impulse voltage: 2.5kV
- Switch rating: 2(1)A 230V a.c. each switch
- Ambient operating temperature: 0°C to +50°C
- Ambient storage temperature: -20°C to 50°C
- Ambient operating humidity (non condensing): 25 - 90%
- Ambient storage humidity: 15 - 95%
