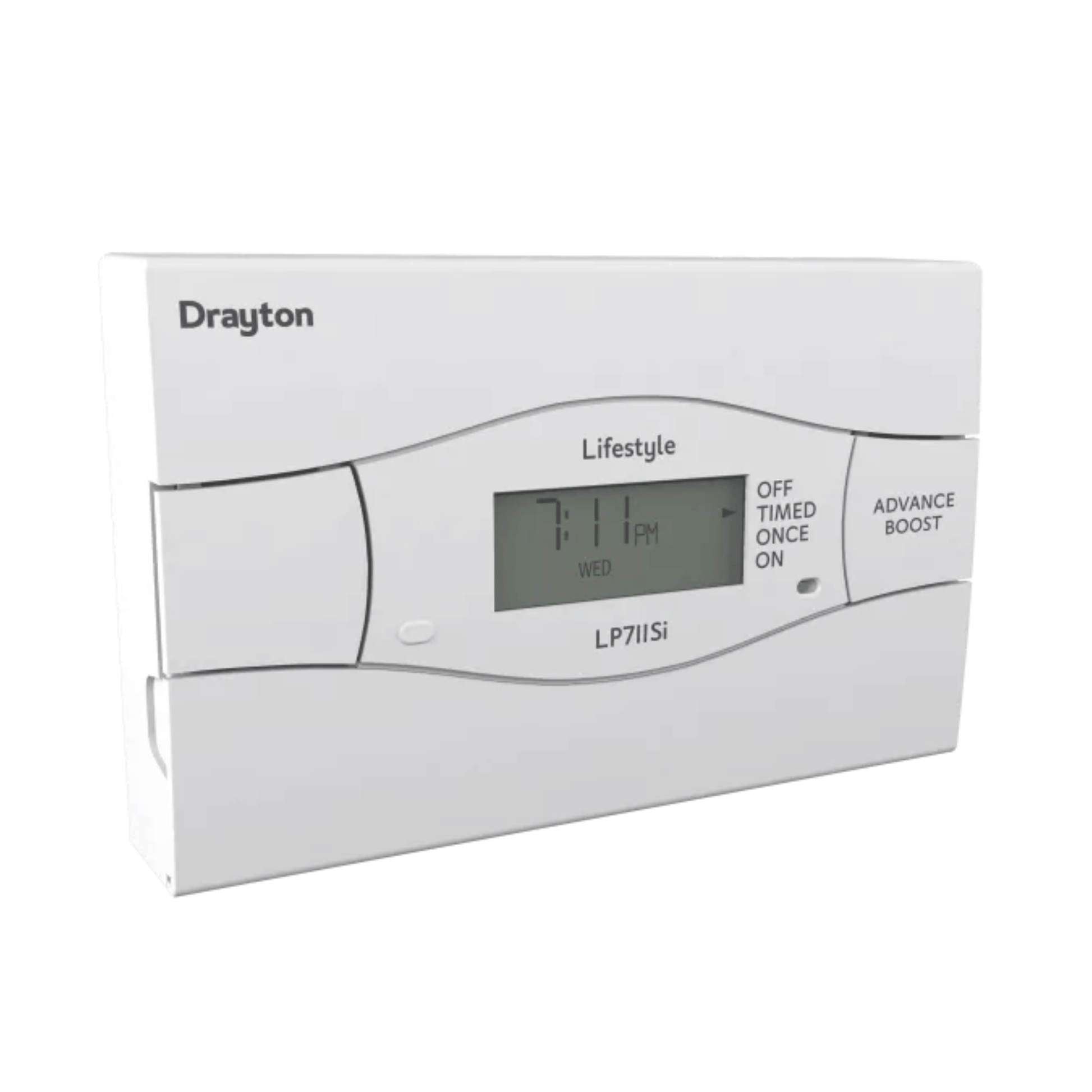

Drayton LP711Si 7 Day Timeswitch - 25494

LP & LPSi Datasheet

7 day timeswitch

For enhanced levels of combi control, LP711Si gives the end user real flexibility with programming. With an individual day programme built in, the setting of each days timings can be changed if required. Ideal where living patterns vary during the week.

• Suitable for combination boilers or separate zone control
• Boost & advance functions
• Holiday mode
• Volt free contacts
• Automatic summer/winter time change
• Built-in standard programme - 3 on/off settings per day
• Backlit screen
• Also suitable for fully pumped and gravity-fed systems
• Industry standard wallplate

Extra features for LPSi

• Service period selectable
• Warning period
• Audible alarm and visual indication on LCD
• Separate reset unit (sold separately)

Specifications

• Ambient storage humidity: 15 - 95%
• Software Class: A
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7
• Timing resolution: 1 minute
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 230V a.c. +10% -10% 50Hz
• Mounting: Industry standard wallplate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Output: Programmers; 230V a.c. Timeswitches: according to supply to common terminal - volt-free contacts
• Rated impulse voltage: 2.5kV
• Switch rating: 2(1)A 230V a.c. each switch
• Ambient operating temperature: 0°C to +50°C
• Ambient storage temperature: -20°C to 50°C
• Ambient operating humidity (non condensing): 25 - 90%
• Ambient storage humidity: 15 - 95%
