Drayton LP20RF - Dual Channel Programmer Spare - 22590DR

Drayton LP20RF Dual Channel Programmer & Digistat +RF Datasheet

Programmer Spare Only

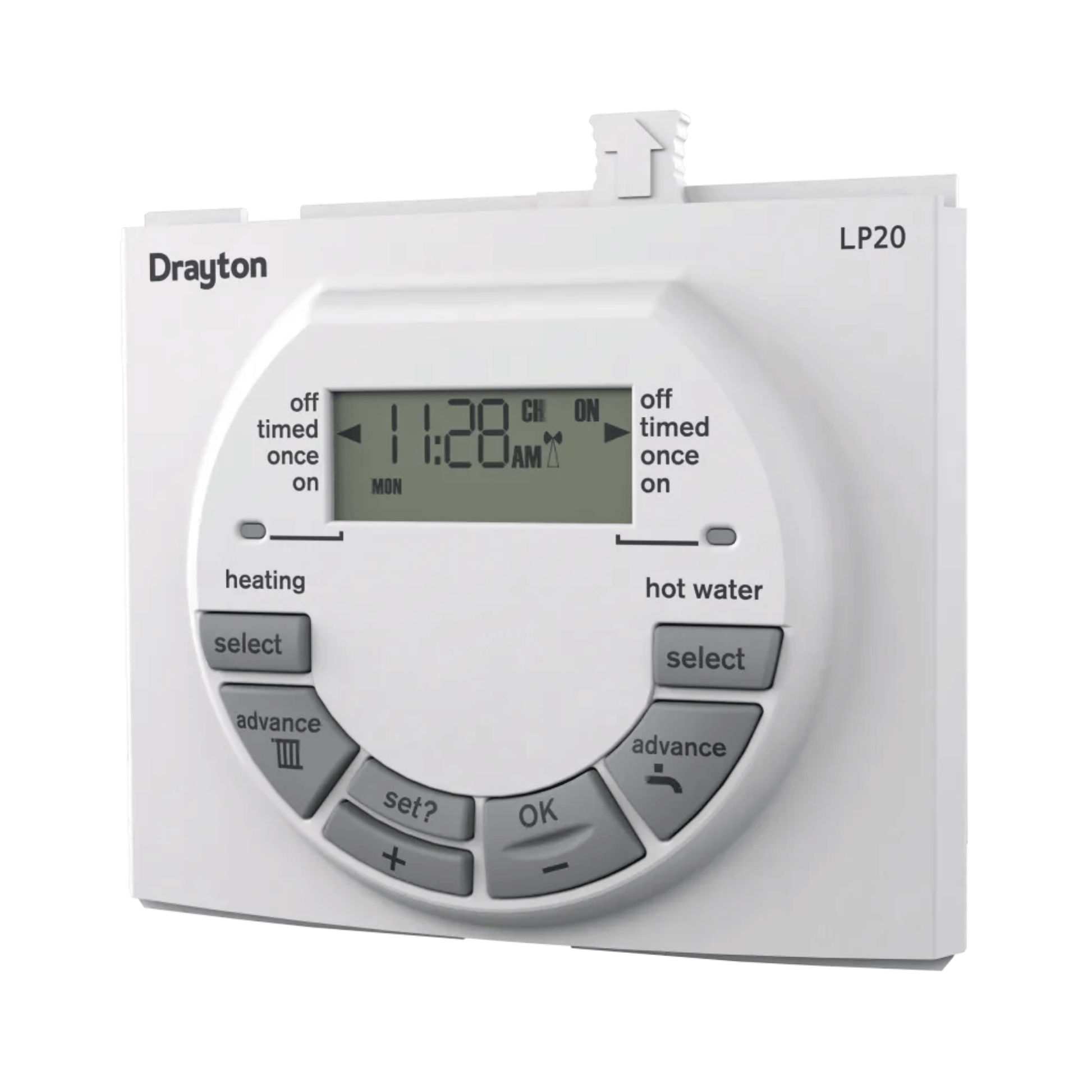

The LP20RF is a dual channel programmer providing 7 day time control of heating and the hot water pre-heat function if required. The LP20RF is wirelessly linked to the Digistat+RF which provides temperature control of the heating. The traditional dial on Digistat+RF makes it really simple for homeowners to adjust the temperature as required.

• 7 day programmes
• 3 on/off periods per day
• Pre-programmed on/off periods
• Dedicated advance buttons
• 12 or 24 hour back-lit digital display
• Holiday function
• Simple wireless installation
• Wireless receiver built into the LP devices
• Signal strength indicator
• Automatic summer/winter time updates
• Pre-wired with PCB connector

Specifications

• Part number: RF562DR
• Energy Class: IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Relevant EC directives: 2014/53/EU Radio Equipment Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 EN 300 220-2; EN 301 489-3
• Setting range: 5°C to 30°C
• Control accuracy: LP20RF receiver: 5°C to 30°C - Digistat+RF thermostat: + 0.5°C @ 20°C
• Timing resolution: 1 minute
• Temperature resolution: 1°C
• Hot water and/or central heating programs: 7 days
• Hot water pre-heat settings: LP20RF receiver: 3 ON / 3 OFF per day - Digistat+RF thermostat: N/A
• Central heating settings: LP20RF receiver: 3 ON / 3 OFF per day - Digistat+RF thermostat: N/A
• Radio frequency: 433 MHz
• Radio signal range: 30m typically. The range may be affected by the compostion / density and number of walls between the thermostat and receiver
• Ball pressure test: 90°C
• Pollution degree: 2
• Power supply: LP20RF receiver: 24Vd.c. less than 65mA - Digistat+RF thermostat: 2xAA 1.5V alkaline batteries
• Battery life: Digistat+RF thermostat: approx. 2 years
• Battery backup time & date: min. 10 years
• Mounting: LP20RF receiver: Boiler mounted - Digistat+RF thermostat: Suitable for surface mounting
• Ambient operating temperature: 0°C to 50°C
• Ambient storage temperature: –20ºC to 55ºC
• Ambient operating humidity: LP20RF receiver: 30 - 95% (non-condensing up to 45°C) - Digistat+RF thermostat: 25 - 90% (non condensing up to 45°C)
• Software Class: A
• Wiring: No wiring required
• Class of operation: LP20RF receiver: II - Digistat+RF: N/A
• Class of protection of housing: LP20RF receiver: IP24 - Digistat+RF: IP30
