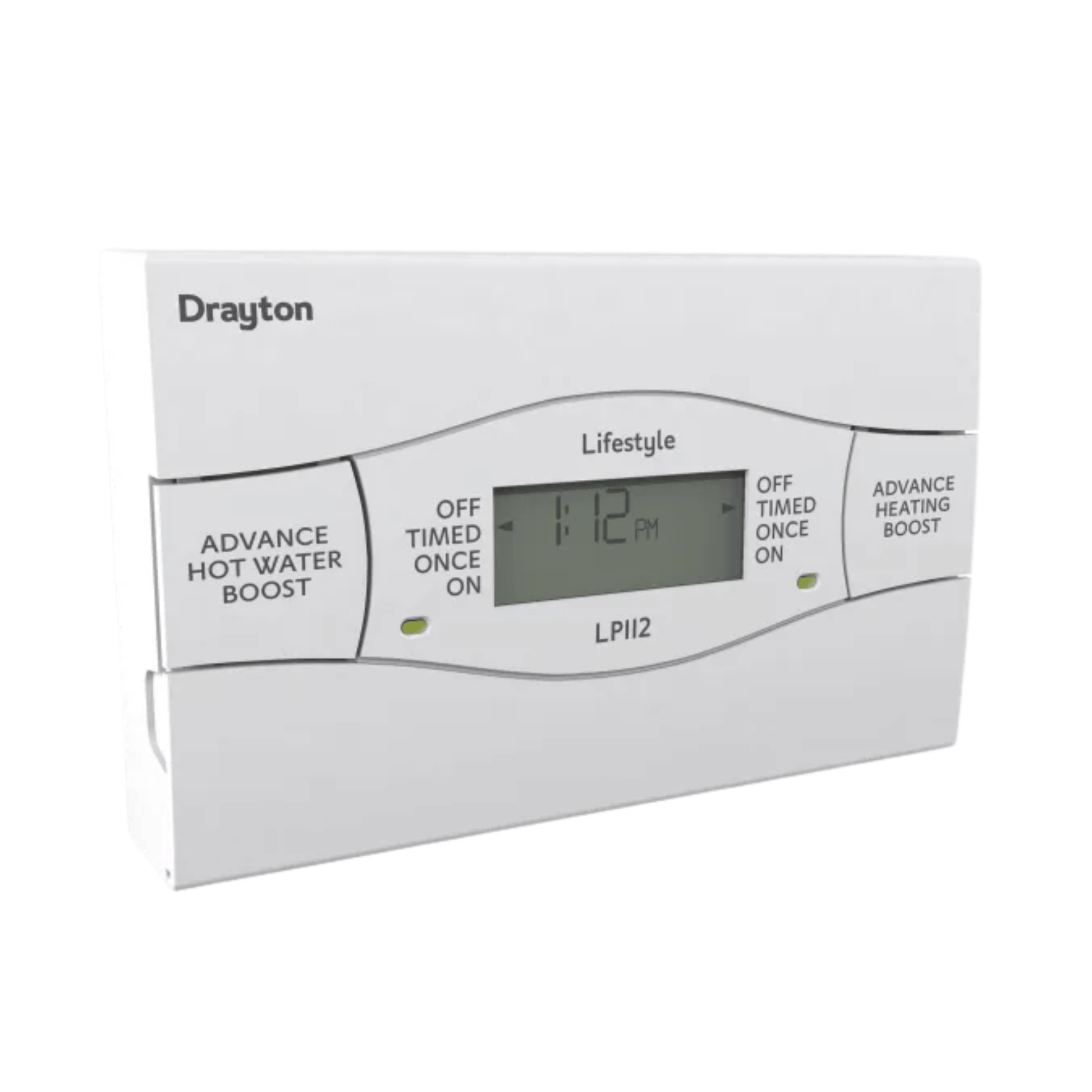

Drayton LP112 24 Hour Programmer - 25473

LP & LPSi Datasheet

With common timings of heating and hot water, LP112 keeps control of fully pumped or gravity systems with no great input from the user. An improved display and four switching options are now standard features.

• Common timings for heating & hot water
• Suitable for fully pumped or gravity hot water systems
• Boost & advance
• Holiday mode
• Automatic summer/winter time change
• Built-in standard programme - 3 on/off settings per day
• Backlit screen
• Industry standard wallplate

Specifications

• Ambient storage humidity: 15 - 95%
• Software Class: A
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7;
• Timing resolution: 1 minute
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 230V a.c. +10% -10% 50Hz
• Mounting: Industry standard wallplate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Output: Programmers; 230V a.c. Timeswitches: according to supply to common terminal - volt-free contacts
• Rated impulse voltage: 2.5kV
• Switch rating: 2(1)A 230V a.c. each switch
• Ambient operating temperature: 0°C to +50°C
• Ambient storage temperature: -20°C to 50°C
• Ambient operating humidity (non condensing): 25 - 90%
• Ambient storage humidity: 15 - 95%
