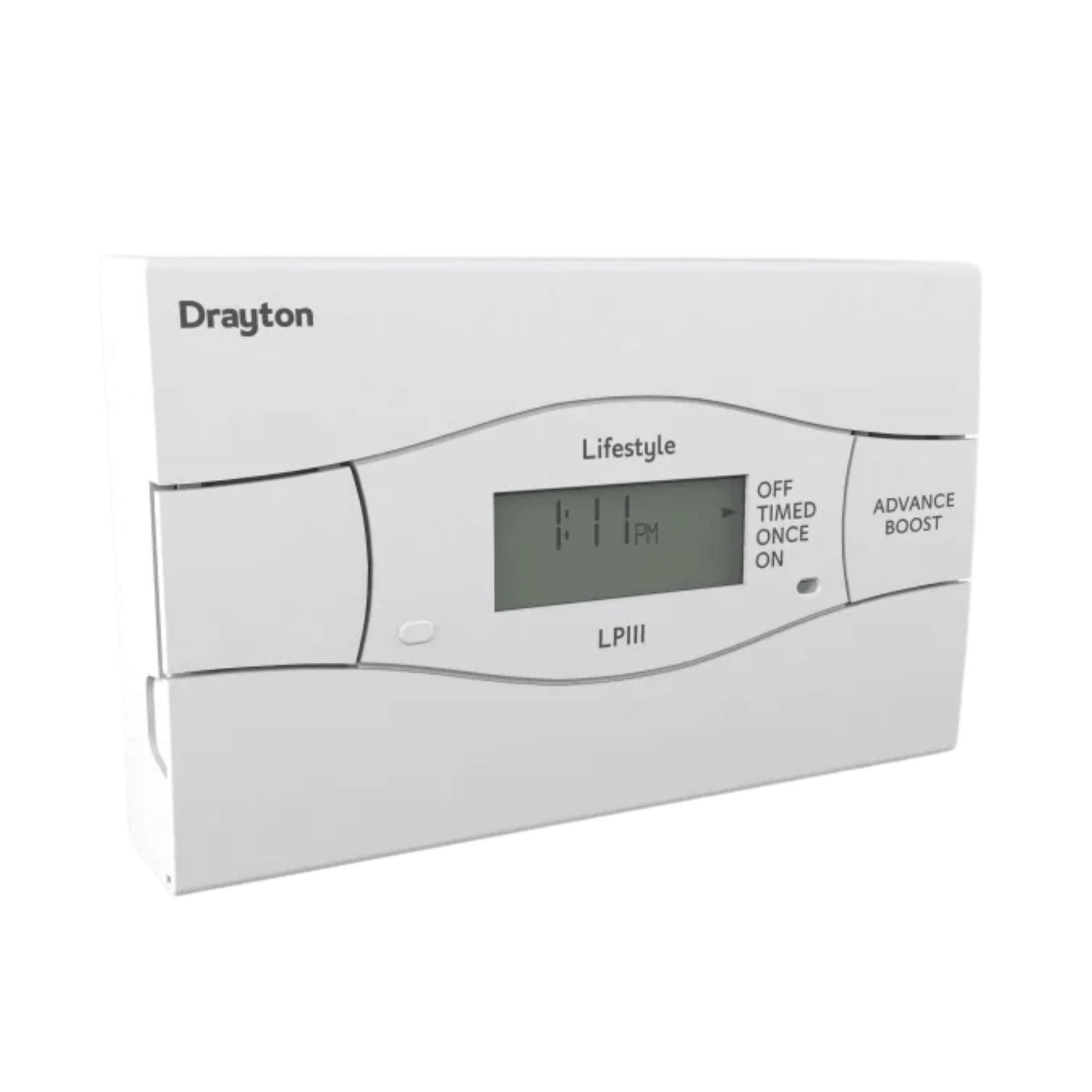

Drayton LP111 24 Hour Timeswitch - 25477

LP & LPSi Datasheet

Where simple time control is adequate, particularly for combi boilers, LP111 is the ideal solution. With an improved display and four switching options it still remains a favourite with the elderly in particular.

• Suitable for combination boilers or separate zone control
• Boost & advance functions
• Holiday mode
• Volt free contacts
• Automatic summer/winter time change
• Built-in standard programme - 3 on/off settings per day
• Backlit screen
• Also suitable for fully pumped and gravity-fed systems
• Industry standard wallplate

Specifications

• Part number: 25477
• Software Class: A
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7
• Timing resolution: 1 minute
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 230V a.c. +10% -10% 50Hz
• Mounting: Industry standard wallplate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671)
• Output: Programmers; 230V a.c. Timeswitches: according to supply to common terminal - volt-free contacts
• Rated impulse voltage: 2.5kV
• Switch rating: 2(1)A 230V a.c. each switch
• Ambient operating temperature: 0°C to +50°C
• Ambient storage temperature: -20°C to 50°C
• Ambient operating humidity (non condensing): 25 - 90%
• Ambient storage humidity: 15 - 95%
