Drayton LP10RF Single Channel Programmer & Digistat+2RF - RF560DR

Drayton LP Clip-In Controls for Worcester Boilers Datasheet

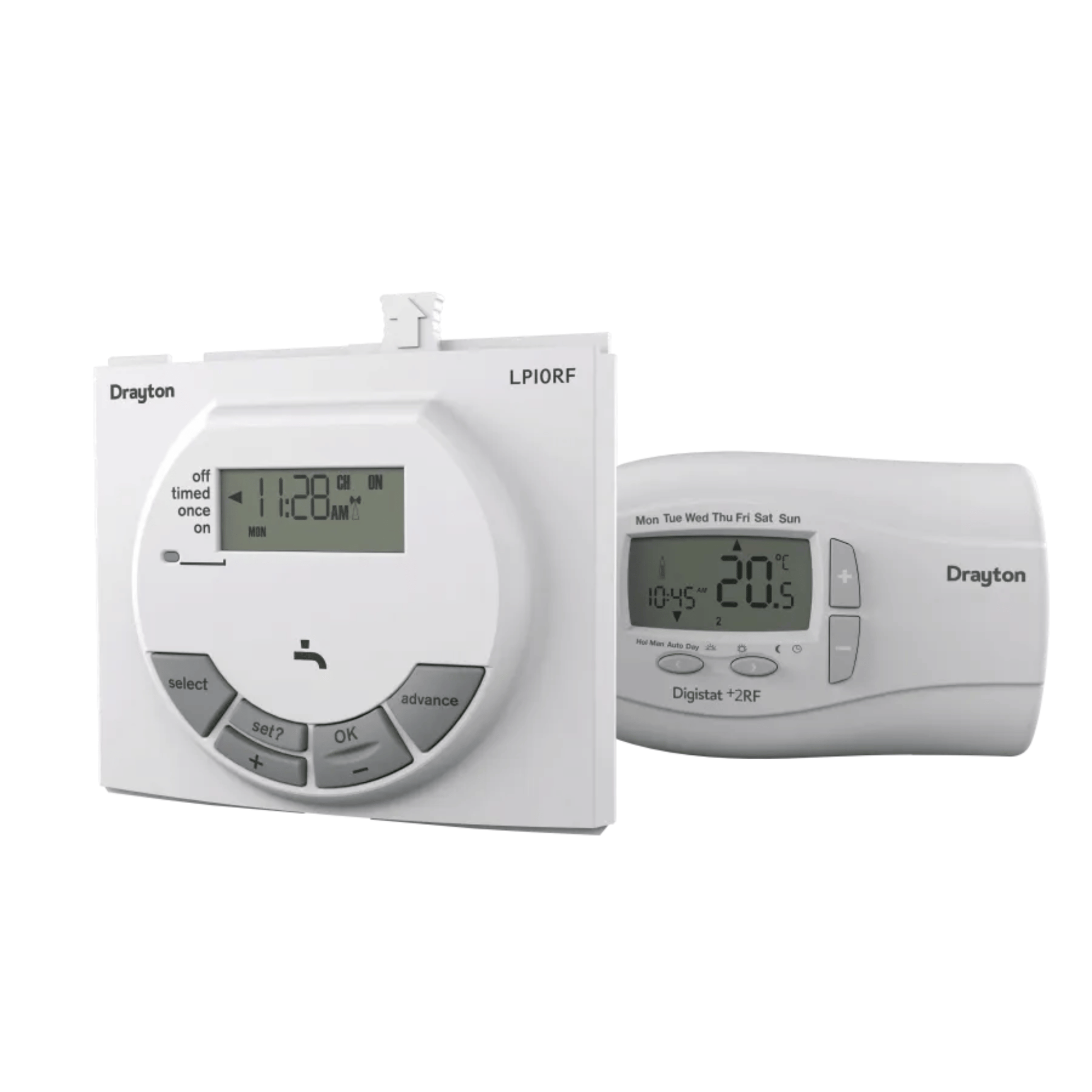

Wirelessly bound, the LP10RF and Digistat+2RF provide control of heating and the hot water pre-heat function if required. The 24 hour programmable room thermostat function of the Digistat+2 RF enables time and temperature control of the heating and the LP10RF offers 7 day control of the hot water pre-heat function. Devices feature signal strength indicator ensuring a reliable connection.

• 7 day programmes
• 3 on/off periods per day
• Pre-programmed on/off periods
• Dedicated advance buttons
• 12 or 24 hour back-lit digital display
• Holiday function
• Simple wireless installation
• Wireless receiver built into the LP devices
• Automatic summer/winter time updates
• Pre-wired with PCB connector
• Replaces Worcester product 7 716 192 052
• LP10RF (programmer only) replaces Worcester Bosch product 8 716 106 667 0

Specifications

• Part number: LP10RF & Digistat+2RF: RF560DR - LP10RF programmer (spare only): 22589DR - Digistat+2RF thermostat (spare only): 22090
• Energy Class: IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Software Class: A
• Relevant EC directives: 2014/53/EU Radio Equipment Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 | EN 300 220-2; EN 301 489-3
• Radio Signal Range: 30m typically. The range may be affected by the compostion / density and number of wall between the thermostat and receiver
• Setting range: 5°C to 32°C
• Control accuracy: LP10RF: ‹± 1 sec/day @ 25°C - Digistat+2RF: + 0.5°C @ 20°C
• Timing resolution: 1 minute
• Hot water program type (LP10RF): 7 day
• Central heating program type (Digistat+2RF): 24 hour
• Hot water pre-heat settings: 3 ON / 3 OFF
• Central heating settings: 6 per day
• Radio frequency: 433 MHz
• Ball pressure test: 90°C
• Pollution degree: 2
• Power supply: LP10RF: 24Vd.c. less than 65mA - Digistat+2RF: 2xAA 1.5V alkaline batteries
• Battery life: approx. 2 years
• Battery back-up time and date: 10 years min.
• Mounting: LP10RF: Boiler mounted - Digistat+2RF: Suitable for surface mounting
• Wiring: No wiring required
• Ambient operating temperature: LP10RF: 0°C to +50°C - Digistat+2RF: 0°C to +40°C
• Ambient storage temperature: –20°C to 55°C
• Ambient operating humidity (non condensing up to 45°C): LP10RF: 30 - 95% - Digistat+2RF: 25 - 90%
• Degree of housing protection: LP10RF: IP24 - Digistat+2RF: IP30
