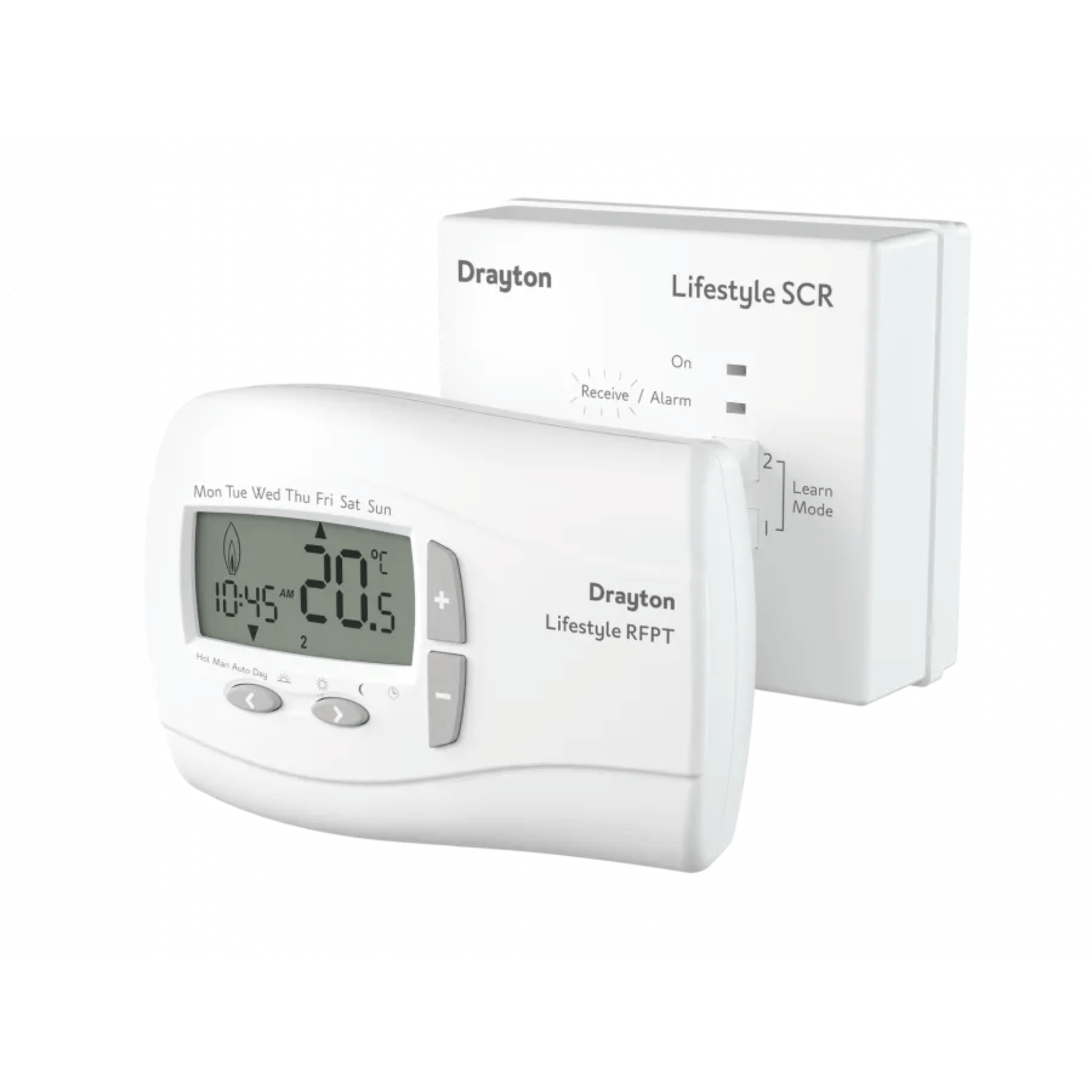

Drayton Lifestyle RFPT Wireless Programmable Room Thermostat - THD22120
Drayton Lifestyle RFPT Wireless Programmable Room Thermostat - THD22120
- Lead Time: 1-5 Working Days"
Regular price
£57.14
Regular price
Sale price
£57.14
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Drayton Lifestyle RFPT Wireless Programmable Room Thermostat Datasheet
The battery-powered single-channel Lifestyle RFPT is a 7 day wireless programmable room thermostat that offers an easy solution for upgrading a heating system for better comfort and efficiency. Wireless SCR technology means no plasterwork to chase out and no redecorating after.
With Min/max temperature setting (making it tamper-proof when min/max are set the same) Lifestyle RFPT is an ideal solution for rented and social housing.
- 24hr, 5/2 day or 7 day schedule
- Ideal for all heating systems
- Auto summer/winter time updates
- 3 pre-defined programmes
- LCD display
- ON/OFF load compensation
- Memory saver programme in the event of power outages
- Easy temperature override and Holiday Mode
- Automatic summer/winter time change
- Easy installation with a standard UK wallplate for the SCR
Specifications
- Part number: THD22120
- Power supply: Lifestyle RFPT: 2 X 1.5V IEC LR6(AA) alkaline batteries; SCR receiver: 230V a.c. 50Hz
- SCR Switch type and rating: SPDT (voltage free) 2(1)A 230V a.c. or
- SCR wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671).
- Mounting: Lifestyle RFPT: Suitable for surface or conduit box mounting; SCR receiver: Industry standard wall plate
- Battery life: 2 years typical
- Ambient temperature: Operating 0°C to 40°C; Storage – 20°C to 55°C
- Ambient humidity (non condensing): Operating 25% to 90%; Storage 15% to 95%
- Temperature range: 5°C to 32°C
- Temperature resolution: 0.5°C
- Control accuracy: + 0.5K @ 20ºC
- Timing resolution: 1 minute
- Ball pressure test: 75°C
- Pollution degree: 2
- Protection level: IP30
- Software class: A
- Radio frequency: 433 MHz
- Radio signal range: 30m typically. The range may be affected by the composition / density and number of walls between the thermostat and receiver
- Energy class: IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
- Relevant EC directives: 2014/53/EU Radio Equipment Directive 2011/65/EU RoHS Directive
- Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 EN 300 220-2; EN 301 489-3
