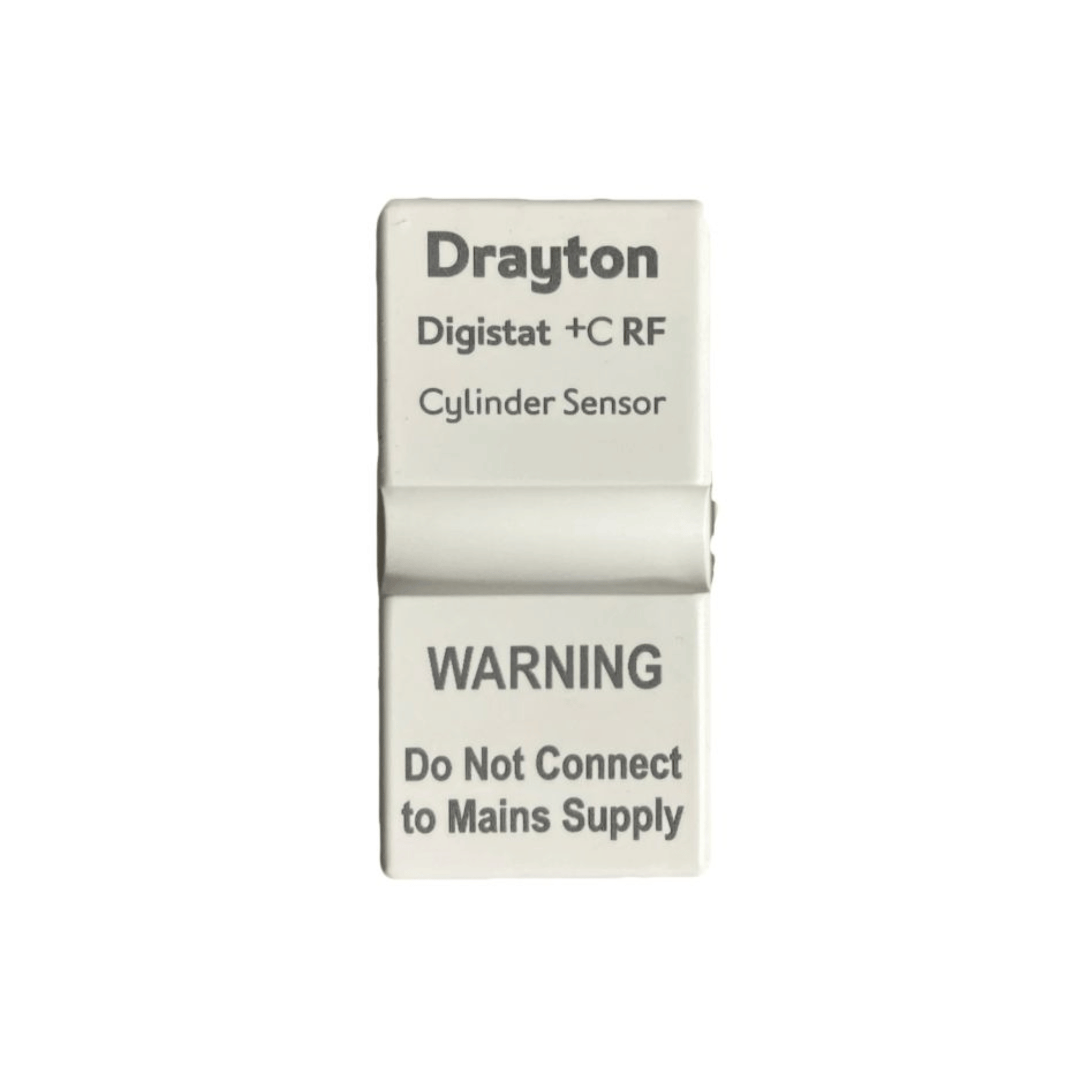

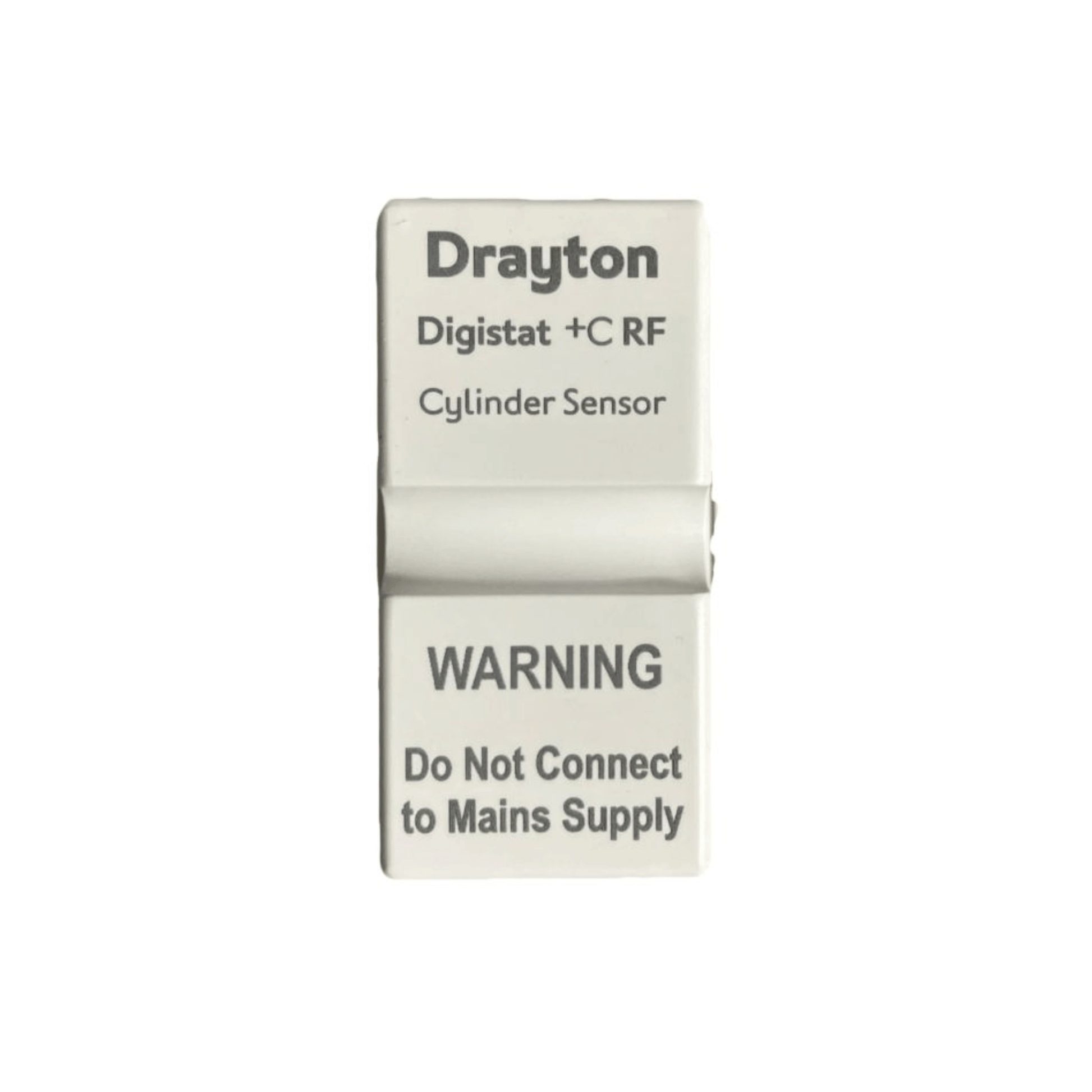

Drayton Digistat+C RF - Sensor Only - 13619

Drayton Digistat+C RF Wireless Cylinder Thermostat Datasheet

Spare Sensor Only

Drayton’s stylish Digistat+C RF cylinder thermostat with tactile, audible & visual feedback. Featuring a familiar dial control with a digital display to show that the temperature has been set accurately every time. This cylinder thermostat controls the domestic hot water temperature to suit your lifestyle and helps you save energy when set between the recommended 60ºC - 65ºC.

• Battery powered
• Tactile dial adjustment
• Digital display
• 5°C setting steps
• Min/Max temperature
• Ideal for Part P regulations

Specifications

• Relevant EC directives: 2014/53/EU Radio Equipment Directive Batteries Directive 2006/66/EC, 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 | EN 300 220-2; EN 301 489-3
• Radio Signal Range: 30m typically. The range may be affected by the compostion / density and number of wall between the thermostat and receiver
• Part number: Digistat+C RF thermostat & SCR & sensor: 13616 - SCR (spare only): 22598 - Digistat+C RF thermostat (spare only): 13618 - Sensor (spare only): 13619
• Setting range: 40°C - 70°C
• Control accuracy: +0/-8°C
• Temperature resolution: 5°C
• Radio frequency: 433 MHz
• Ball pressure test: 75°C
• Pollution degree: 2
• Power supply: Digistat+C RF thermostat: 2 X 1.5V IEC LR6(AA) alkaline batteries - SCR (receiver): 230V a.c. 50Hz
• Battery life: approx. 2 years
• Mounting: Digistat+C RF: Suitable for surface or conduit box mounting - Sensor: Direct mounting onto water cylinder - SCR (receiver): Industry standard wall plate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671). Ø 0.5mm² 2 core cable between sensor and thermostat
• Switch type and rating: SCR (receiver): S.P.D.T (volt free) 2(1)A 230V a.c. or 24V a.c./d.c
• Ambient operating temperature: 0ºC to 50ºC
• Ambient storage temperature: –20ºC to 55ºC
• Ambient operating humidity (non condensing): 25% to 90%
• Ambient storage humidity: 15% - 95%
• Energy class: IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Software class: A
• Degree of housing protection: IP30
