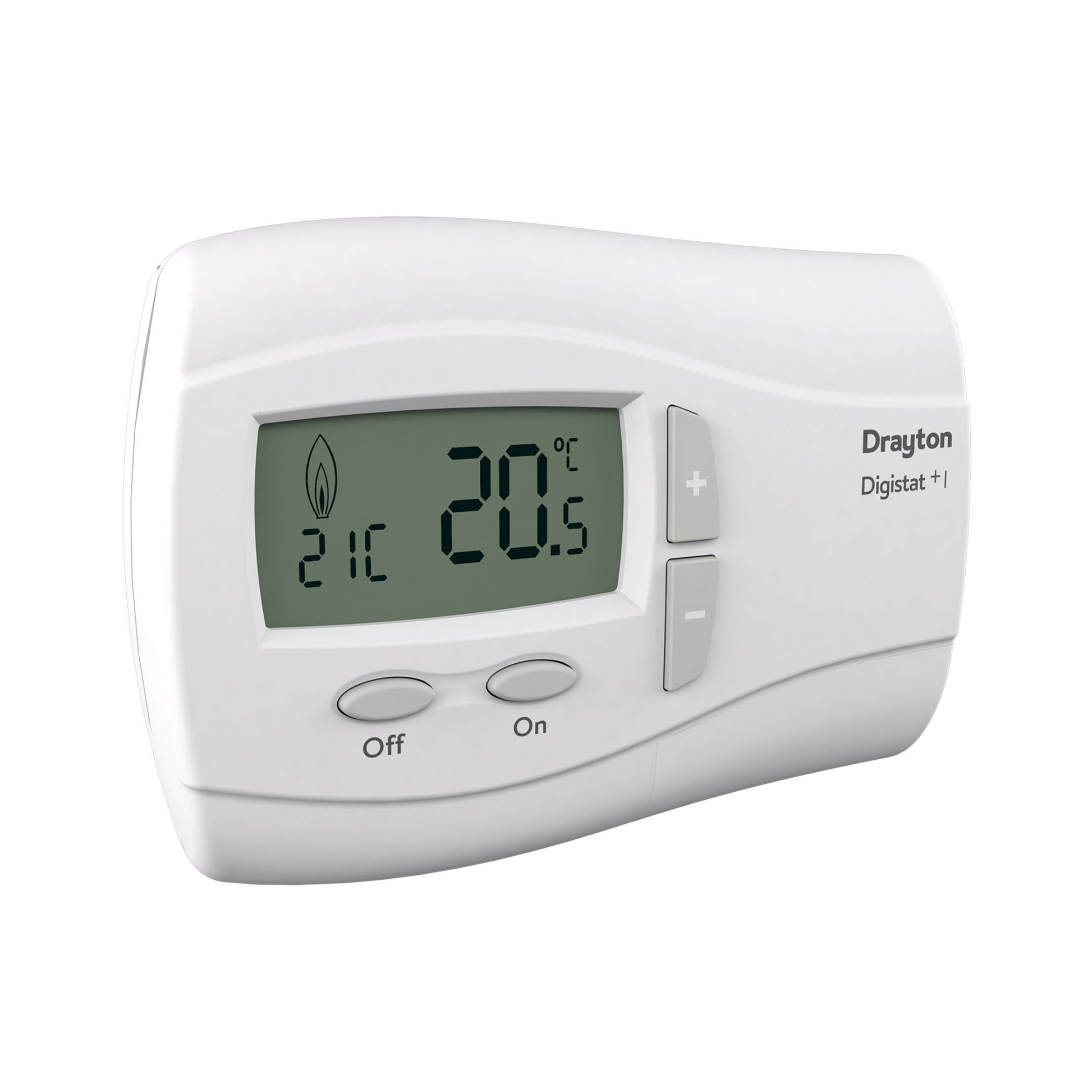

Drayton Digistat+1 - Wired Room Thermostat - Mains Powered - 22193

Drayton Digistat+ & Digistat+ RF Room Thermostat Range Datasheet

Our stylish Digistat+1RF wired room thermostat features large buttons and an easy to read digital display to show that the temperature has been set accurately.

• Easy to install & use
• Set-back and comfort feature
• Easy-to-read digital display
• ON/OFF load compensation
• Set back/comfort features
• Min/max temperature setting (tamper-proof when min/max are set the same)
• Typical operating range 30m
• Battery powered

Specifications

• Energy Class (ErP rating): IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Relevant EC directives: 2014/53/EU Radio Equipment Directive Batteries Directive 2006/66/EC, 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-7; EN60730-2-9 | EN 300 220-2; EN 301 489-3
• Part number: Digistat+1 RF & SCR: RF710 - Digistat+1 RF thermostat (spare only): 22190N - SCR (spare only): 22149
• Setting range: 5°C to 30°C
• Control accuracy: +0.5ºC @ 20ºC
• Temperature resolution: 0.5°C
• Radio frequency: 433 MHz
• Radio signal range: 30m typically. The range may be affected by the composition / density and number of wall between the thermostat and receiver
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: Digistat+1 RF thermostat: 2 X 1.5V IEC LR6(AA) alkaline batteries
  SCR (receiver): 230V a.c. 50Hz
• Battery life: approx. 2 years
• Mounting: Digistat+1 RF: Suitable for surface or conduit box mounting
  SCR (receiver): Industry standard wall plate
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671).
• Switch type & rating: SCR (receiver): S.P.D.T 16(2)A 230V a.c. Volt free
• Ambient operating temperature: 0ºC to 40ºC
• Ambient storage temperature: –20ºC to 55ºC
• Ambient operating humidity (non condensing): 25% to 90%
• Ambient storage humidity: 15% - 95%
• Software class: A
• Class of housing protection: IP30
