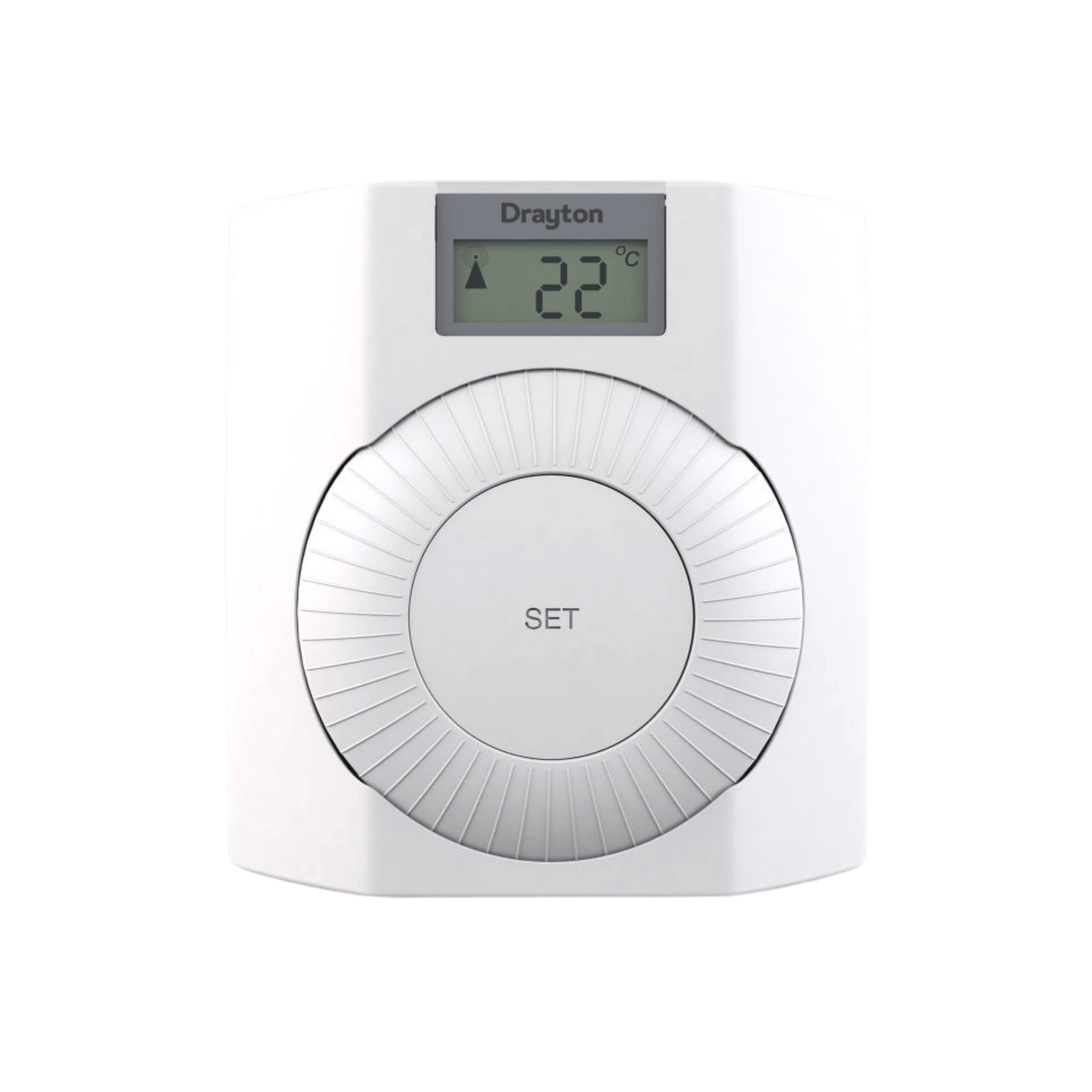

Drayton Digistat+ Wired Room Thermostat - 30002

Drayton Digistat+ Datasheet

Drayton’s stylish Digistat+ wired room thermostat with tactile, audible & visual feedback. Featuring a familiar dial control with a digital display to show that the temperature has been set accurately every time.

• Easy to install & use
• Tactile dial adjustment with audible feedback
• Easy-to-read digital display
• Set-back feature
• Battery powered
• Min/max temperature setting (tamper-proof when min/max are set the same)
• ON/OFF load compensation

Specifications

• Part number: 30002
• Energy Class (ErP rating): IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013)
• Relevant EC directives: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive
• Applied standards: EN60730-1; EN60730-2-9
• Setting range: 5°C to 30°C
• Control accuracy: +0.5ºC @ 20ºC
• Temperature resolution: 1°C
• Ball pressure test: 75ºC
• Pollution degree: 2
• Power supply: 2 X 1.5V IEC LR6(AA) alkaline batteries
• Battery life: approx. 2 years
• Mounting: Suitable for surface or conduit box mounting
• Wiring: Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671).
• Switch type & rating: S.P.D.T 2(1)A 12-230V a.c./d.c. volt free
• Ambient operating temperature: 0ºC to 40ºC
• Ambient storage temperature: –20ºC to 55ºC
• Ambient operating humidity (non condensing): 25% to 90%
• Ambient storage humidity: 15% - 95%
• Class of housing protection: IP30
