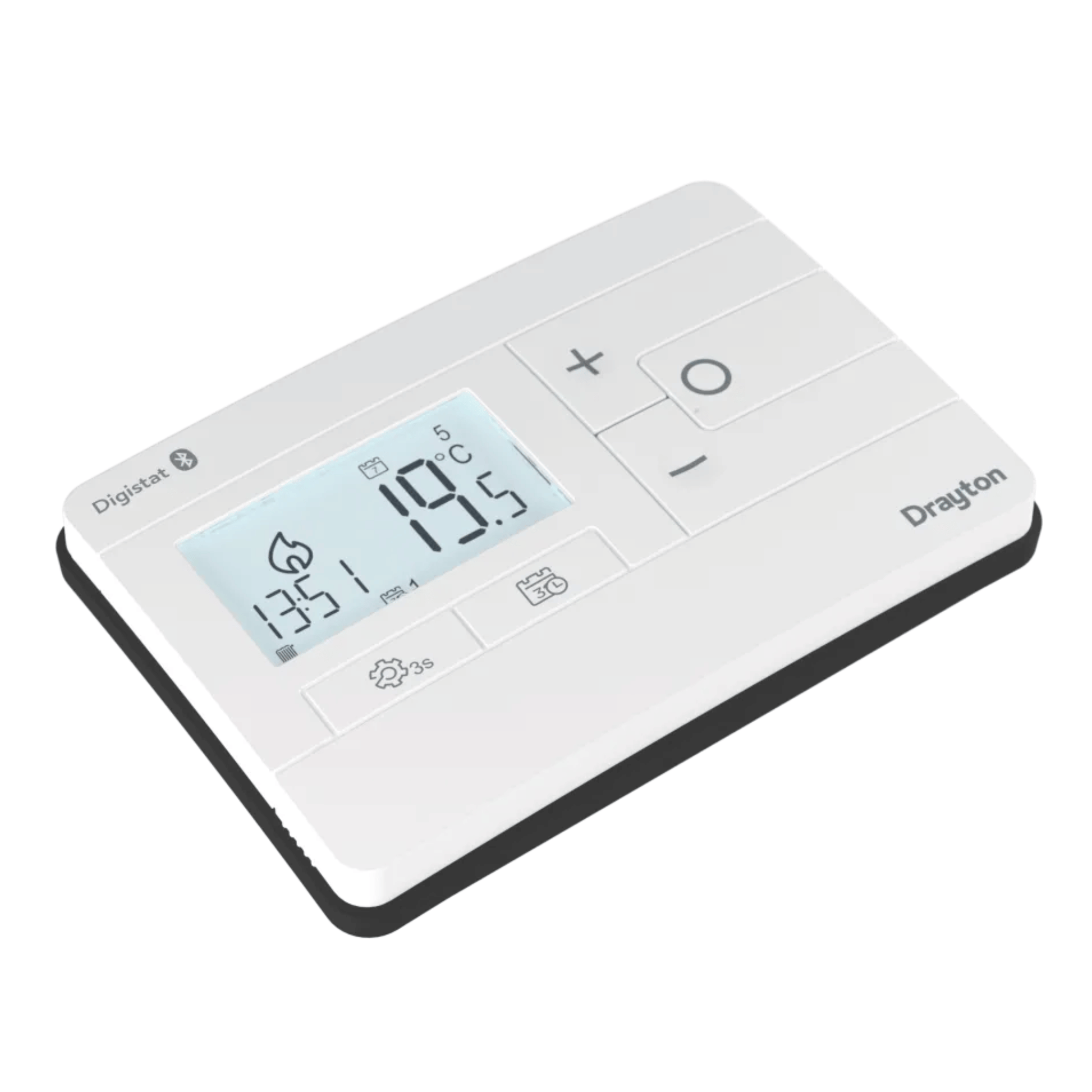

Drayton Digistat Mains 16A Relay with OpenTherm - 2290M

Drayton Digistat Universal Thermostats Datasheet

Drayton's award winning new Digistat 2290M is mains-powered with 16A relay and OpenTherm outputs. It provides unparalleled flexibility with universal operation and optional smartphone control.

• Programme using the app via Bluetooth connection (no Wi-Fi needed) or manual control via the thermostat
• Familiar Digistat features and operation
• Universal programming: 7 day, 5/2 day, 24 hour or simple room thermostat
• Optimised settings for gas, heat pump, electric and oil
• Optional Service Interval Feature

Specifications

• Part number: 2290M
• Power supply: 230VAC +/-10%, 50Hz
• Switch type and rating: 16(2)A at 230V/50Hz
• Min. recommended current: SPDT (voltage free contacts) 10mA@24VAC (inductive)
• Ambient temperature: Operating 0°C to 40°C; Storage - 20°C to 65°C
• Ambient humidity (non condensing): Operating 20% to 80% (90% non condensing)
• Temperature range: 5°C to 30°C
• Rated impulse voltage: 4KV
• Ball pressure test: 75°C
• Disconnection means: 1B
• Automatic action: 100,000 cycles
• Operating frequency (Bluetooth): 2402 to 2480 MHz
• Max RF Power transmitted (Bluetooth): +10dBm
• Pollution degree: 2
• Protection level: IP30
• Wiring: Designed for fixed wiring only, to comply with IET wiring regulations
• Dimensions: 90x135x31mm (HxWxD)
• Energy class: V = 3%
• Relevant EC directives: 2014/53/EU Radio Equipment Directive 2012/19/EU WEEE 2011/65/EU RoHS Directive
• Applied standards: EN60730-1 EN 60730-2-7 EN 60730-2-9 ESTI EN 300 328 ESTI EN 301 489 EN IEC 63000
• App system requirements: Android™ Version 9 or higher | Apple® iOS 12 or higher | Bluetooth version 4.2 or higher
• Sustainable offer status: Green Premium Product
