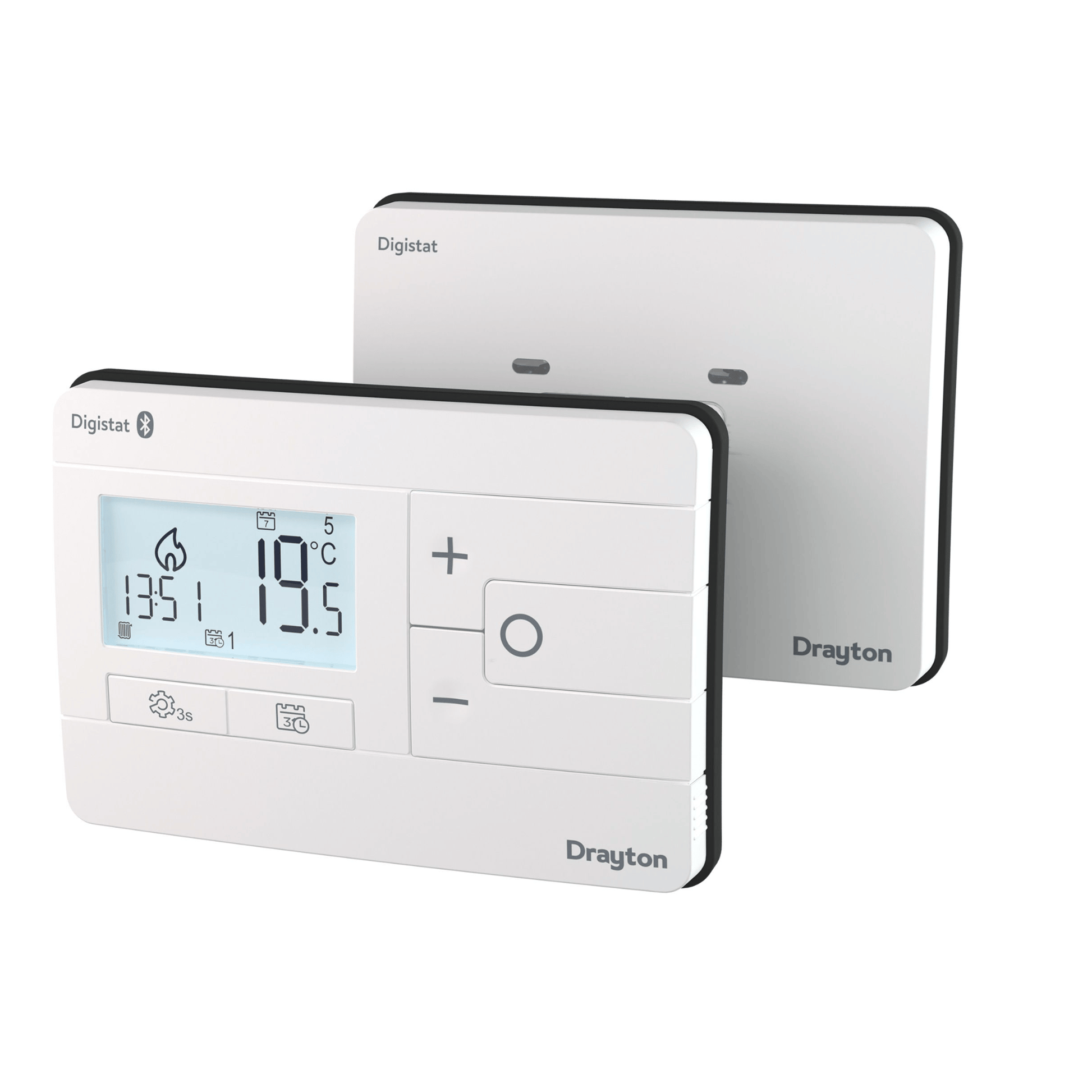

Drayton Digistat Dual-Channel RF - RF902

Drayton Digistat Universal Thermostats Datasheet

Drayton's award winning new Digistat RF902 dual-channel can be used for heating and hot water or for two separate heating zones (using a second Digistat RF90T sold separately), without the need for a separate hot water programmer. It provides unparalleled flexibility with universal operation and optional smartphone control.​

• Programme using the app via Bluetooth connection (no Wi-Fi needed) or manual control via the thermostat
• Familiar Digistat features and operation
• Universal programming: 7 day, 5/2 day, 24 hour or simple room thermostat
• Optimised settings for gas, heat pump and oil
• Receiver fits on industry-standard wallplate
• Thermostat and receiver pair automatically on power up
• Optional Service Interval feature

Specifications

• Part number: RF902 Digistat Dual-Channel RF; RF90D Digistat Dual-channel Receiver Spare; RF90T Digistat RF Thermostat Spare
• Power supply: Digistat: 2 X AA 1.5V alkaline batteries; Receiver: 230VAC +/-10%, 50Hz 2
• Switch type and rating: Digistat: N/A; Receiver: 3(1)A 230V/50Hz
• Min. recommended current: SPDT (voltage free contacts) 10mA@24VAC (inductive)
• Ambient temperature: Digistat: Operating 0°C to 40°C Storage - 20°C to 65°C; Receiver: Operating 0°C to 45°C Storage - 20°C to 65°C
• Ambient humidity (non condensing): Operating 20% to 80% (90% non condensing)
• Temperature setting range: 5°C to 30°C
• Rated impulse voltage: 4KV
• Ball pressure test: 75°C
• Disconnection means: 1B
• Automatic action: 100,000 cycles
• Operating frequency (Bluetooth): Digistat: 2402-2480 MHz; Receiver: N/A
• Max RF Power transmitted (Bluetooth): Digistat: +10dBm; Receiver: N/A
• Pollution degree: 2
• Protection level: IP30
• Radio frequency: 433.92 MHz
• Radio signal range: 50m typically The range may be affected by the composition / density and number of walls between the thermostat and receiver
• Wiring: Designed for fixed wiring only, to comply with IET wiring regulations
• Dimensions: Digistat: 90x135x31mm (HxWxD); Receiver: 94x122x31mm (HxWxD)
• Energy class: Digistat: N/A; Receiver: V = 3%qw
• Relevant EC directives: 2014/53/EU Radio Equipment Directive 2012/19/EU WEEE 2011/65/EU RoHS Directive
• Applied standards: EN60730-1 EN 60730-2-7 EN 60730-2-9 ESTI EN 300 328 ESTI EN 301 489 EN IEC 63000 EN15500
• App system requirements: Android™ Version 9 or higher | Apple® iOS 12 or higher | Bluetooth version 4.2 or higher
• Sustainable offer status: Green Premium Product
