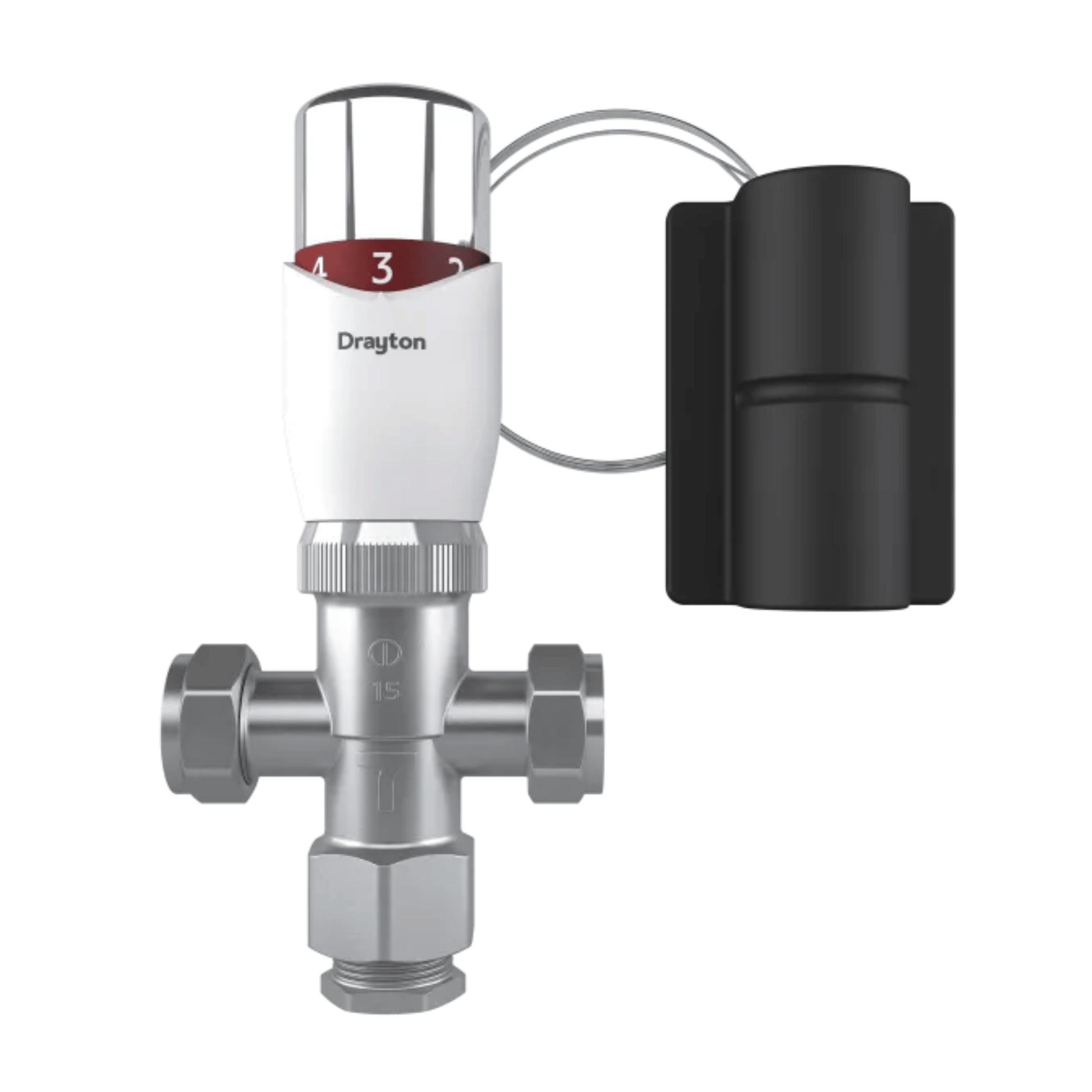

Drayton 3-Way Tapstat (Pumped) - 15mm - 07 45 016

Drayton Tapstat Cylinder Controls Datasheet

Drayton's self-acting Tapstats control domestic hot water temperatures in pumped primary systems, preventing scalding and energy wastage.

Ideal for domestic hot water cylinders, this 15mm 3-way thermostatic valve is a trusted solution for maintaining consistent water temperatures in traditional heating systems.

• High quality and durable
• Self-acting and non-electric
• Range limiting stops for temperature safety
• Remote sensor with 2m capillary for flexible positioning
• Quick and simple compression fittings for copper pipe

Specifications

• Part number: Tapstat sensing head 07 45 012 ; 15mm 3-way Tapstat (pumped) 07 45 016 ; MK3-MK4 Tapstat conversion head 07 91 011
• Setting range: 32°C to 72°C
• Max. static pressure: 147 psi (10 bar)
• Max. primary flow temperature: 100°C continuous; 120°C intermittent
• Max. differential pressure: 15mm 2 way - 59 psi (4 bar) * The differential pressures stated are maximum limits. It is not recommended that Tapstats are used at pressures above 8.8 psi (0.6 bar) as noise may be experienced in the system.
• KV value (fully open): 1.1
