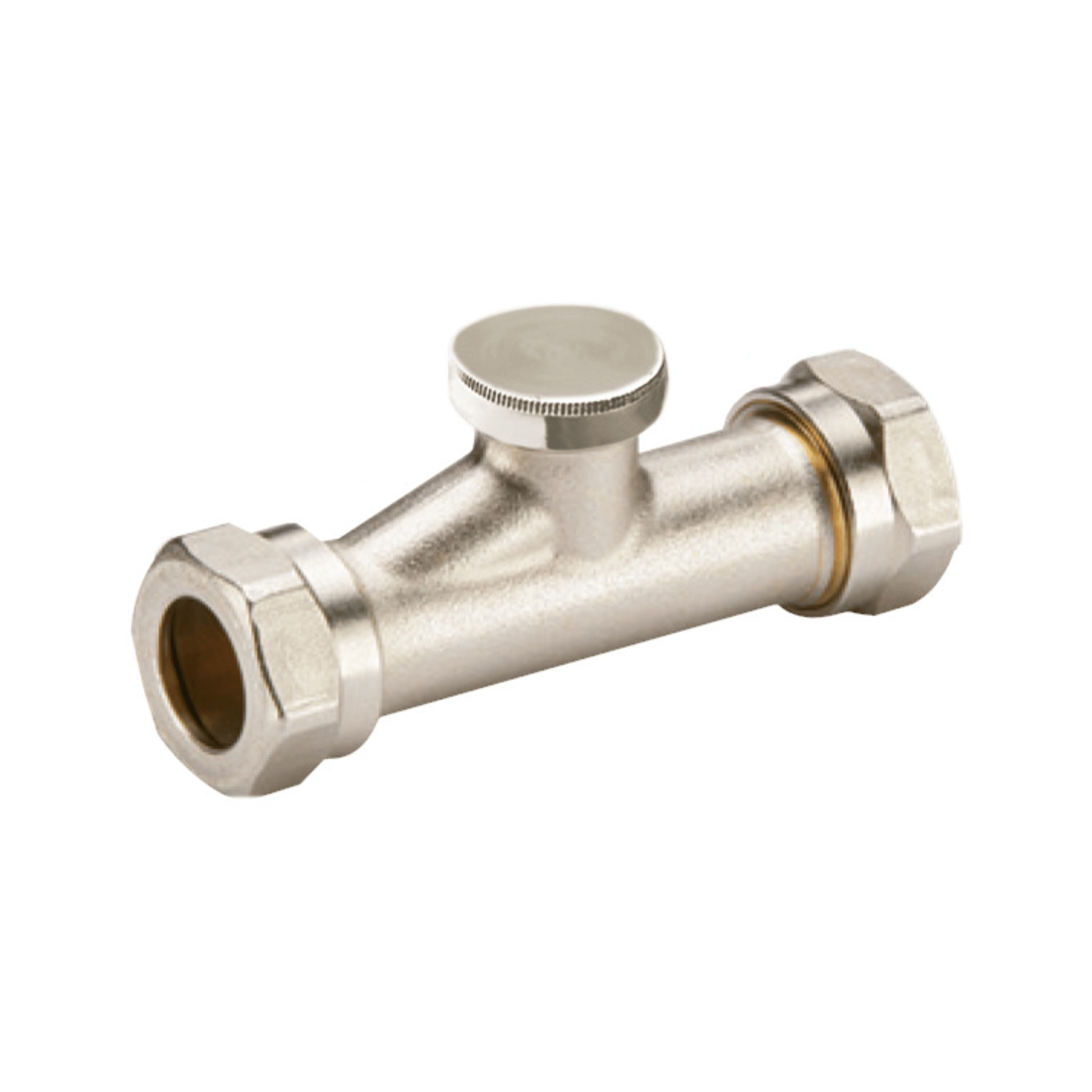

Danfoss RLV-D Lockshield Valve - Straight - Nickel Plated - 1/2" - 003L0206
Danfoss RLV-D Lockshield Valve - Straight - Nickel Plated - 1/2" - 003L0206
- Lead Time: Direct from our Supplier, Usually 7-10 Working Days*
Couldn't load pickup availability
RLV-D with 1/2" connection
The RLV-D is a lockshield valve designed for use in domestic heating systems and meets the requirements in BS2767-10. Fittings and valve body dimensions are identical to those of the RAFR valve body used with the RAS-C & RAS-D radiator thermostats, allowing the installer greater freedom in terms of work flow and ease of installation. Adjustment of the lockshield for regulation and isolation is by means of a 6mm Allen key socket in the valve body which is normally covered and protected by a screw-on brass cap. RLV-D can also be used in closed comfort cooling systems, if the piping system is free of oxygen.
The push-fit fitting is suitable for 10mm copper pipes manufactured in accordance to BS 2871 part 1 / BS EN 1057: 1996 and for 10 mm polybuthelene (PB) pipes including Hep2O, Polyplumb, OsmaGold, and 10 mm cross linked Polyethylene (PEX) pipes made in accordance to BS7291 part 1:1990 or part 3:1990. Always use plastic pipe inserts of the same brand as the pipe used.
