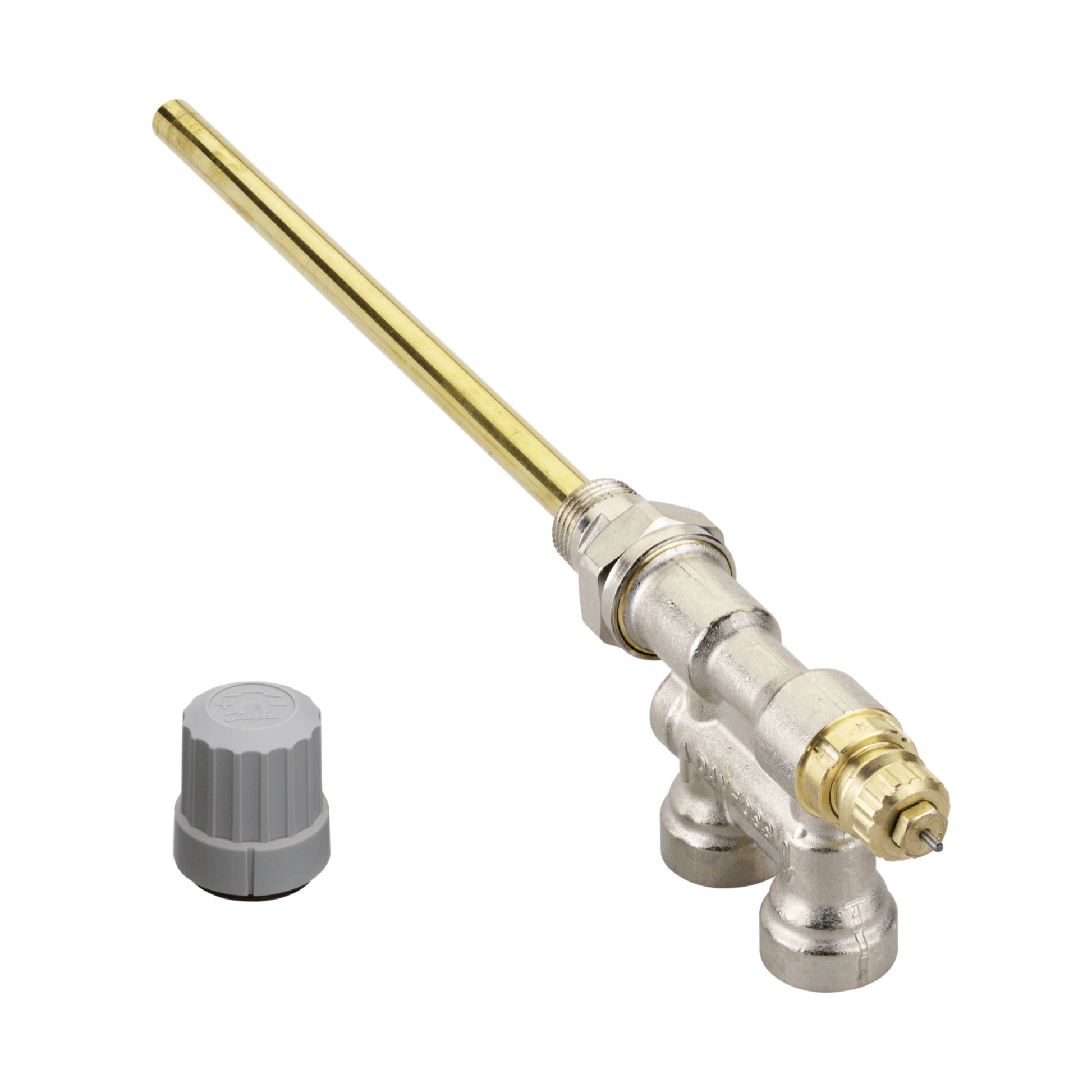

Danfoss RA 15/6T Lance Valve - Side Connection - 1/2" - 013G3270
Danfoss RA 15/6T Lance Valve - Side Connection - 1/2" - 013G3270
- Lead Time: Direct from our Supplier, Usually 7-10 Working Days*
Couldn't load pickup availability
RA 15/6T special lance (bypass) valve for radiator side connection
The RA 15/6T valve body fit the RA 2000 thermostats and the ABNR thermal actuators.
The RA 15/6T is a special lance (bypass) valve body which allows the radiator to be connected at one point only, at the side of the radiator or underneath it as required.
RA 15/6T is designed for conventional one-pipe systems with pumped circulation.
The valve body has fixed kv-values.
In the one-pipe system, the constant water flow which is circulated is conveyed partly through the radiator and partly through the bypass built into the valve.
Efficient mounting is enabled by a range of compression fittings for steel, copper, PEX and AluPEX pipes.
To prevent scale and corrosion, the composition of the heating water should comply with VDI (Verein Deutscher Ingenieure) [German Engineering Association] guideline 2035.
Depending on the type of radiator, baffle plates or special connectors which match the radiator may be required in some circumstances. Please note that when a bypass valve is fitted, not all the radiators will provide the performance quoted in their catalogue, and variations in performance may arise where different radiators are combined. In this case, please ask your radiator manufacturer for detailed information.
