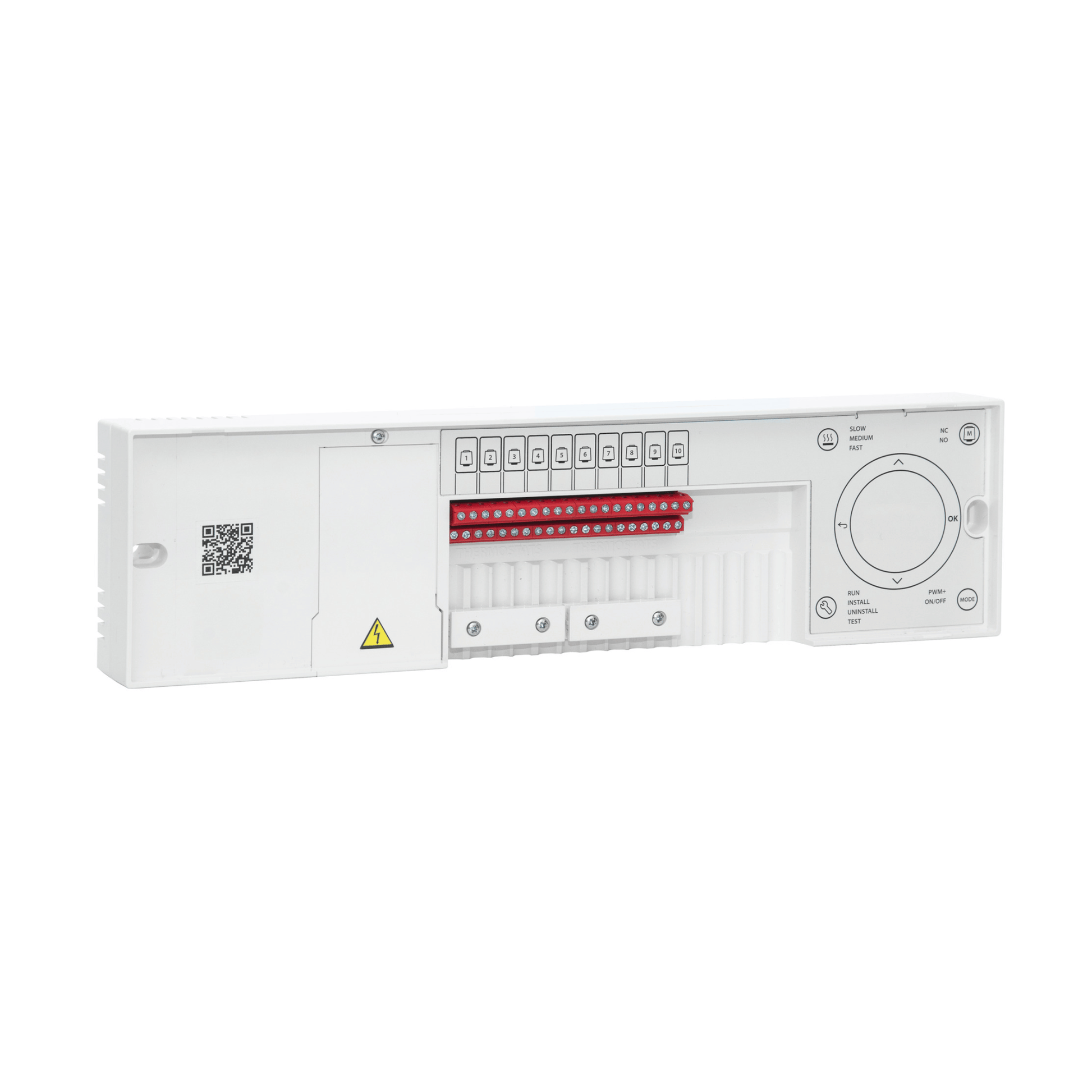

Danfoss OTA Icon Master Controller - 24V - 088U1148

Danfoss Icon™ 24V Master Controller Datasheet

Danfoss Icon™ is a modular heating system for individual room control. It can be configured as a wired or wireless system or as a combination, if required.

The center of the system is the Danfoss Icon™ Master Controller 24V, which configures and ties the system together.

Installation and set-up of the Danfoss Icon™ Master Controller 24V is made easy by using the pre-defined application and intuitive touch user interface.

The system offer following features (some require Expansion Module):

• Automatic balancing (PWM+), which ensure that the hydraulic balancing of the system is done by the master controller based on the actual room demand.
• Requires no pre-setting on the manifold.
• On/Off control possibility.
• NC/NO actuator functionality.
• Cooling change over (require an Expansion Module).
• Supports 2, 3 or 4 pipe applications in various configurations (please see Expansion Module application guide for all configurations).
• Supply temperature control (require an Expansion Module), can be set to either a fixed temperature or demand based supply temperature control.
• 230V power output with protected earth for circulation pump.
• 230V power output (for e.g. always on).
• Heat demand signal output (for e.g. potential free relay).
• Can be made wireless by adding a Radio Module (required for wireless installations).
• Powerline communication (for 24V wired thermostats).
• Possibility to combine wired and wireless thermostats in same installation.
• APP functionality, for iOS and Android devices (require APP Module).
• Software updatable through App or Zigbee module.
• 3rd party integration with compatible Zigbee solutions through Icon™ Zigbee module.
